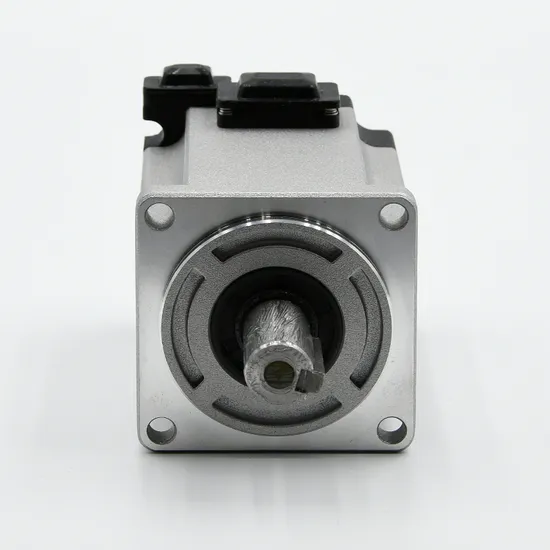

New Original 400W 3000rpm Sinusoidal Design 3 Phase Servo Motor

Product Description

Product Description

Product Name	Servo motor
Model	LSM60-40B30EA-OK
Brand	LicOS
Place of Origin	Yunnan,China
Condition	100% New 100% Original
Series	Servo series
Product Description	New KMT series AC servo motors have independent intellectual property rights and adopt high-performance rare earth permanent magnet materials. It has outstanding advantages such as small size, high power density, strong overload capacity, small cogging torque, low noise and exquisite appearance.
Application	They are widely used in machine tools, cable, textile, winding, lifting and other applications.
Core Points	1. Number of motor pole pairs: 4/5; 2. High-performance rare earth permanent magnet rotor, high, medium and low inertia selectable, good dynamic response; 3. Three opposite potential sinusoidal design, very low cogging torque, good low-speed smoothing characteristics;
Technical Consulting Support	Yes
Warranty	1 year
Product Feature	1. Output shaft oil seal protection, and the standard brake is optional; 2. Protection class IP65 or IP67, B or F class insulation; 3. Conforms to 3C, CE, UL certificates and RoHS standards.

Product Parameters

Motor Model	LSM40-10B30	LSM60-20B30	LSM60-40B30	LSM80-75B30	LSM80-10C30
Voltage U (AC)	220v
Rated power Pr (KW)	0.1	0.2	0.4	0.75	1
Rated current Ir (Ams)	0.92	1.5	2.1	4.1	5.7
Rated torque Tr (Nm)	0.32	0.64	1.27	2.39	3.19
Rated speed Nr (rpm)	3000	3000	3000	3000	3000
Maximum current (Arms)	2.85	5.5	6.5	13.4	17.7
Maximum torque (Nm)	0.95	2.23	3.81	7.17	9.56
Maximum speed (rpm)	6000	6000	5000	5000	5000
Torque coefficient Kt (Nm/A)	0.38	0.427	0.605	0.645	0.56
Moment of inertia Jm (10^(-4)Kg.m^2)	0.062(0.072)	0.28(0.3)	0.56(0.58)	1.5(1.65)	2.0(2.15)
Electrical time constant te (ms)	0.81	2.46	2.11	4.71	5.09
Mechanical time constant tm (ms)	1.128	1.432	1.151	0.919	0.822
Weight (kg)	0.43(0.59)	0.95(1.35)	1.3(1.55)	2.12(2.7)	2.8(3.4)
Heat sink size (mm)	aluminum 200*200*6	aluminum 250*250*6
Braking voltage Ub (DC)	24v
Braking current Ib (A)	0.29	0.31		0.48
Braking torque Tb (Nm)	≥0.4	≥1.5		≥3.2
Drive Adaptation Information
Recommended cable cross sectional area (mm^2)	0.5	0.5	0.5	0.5	0.5
Recommended drive model	S3RE-1R8SA-E	S3RE-1R8SA-E	S3RE-2R8SA-E	S3RE-4R2SA-E	S2RE-060PA-E
Note: The above is the standard model, ( ) is the parameter of motor with holding brake;

Feedback
Certifications
Company Profile
UnionScience Technology Group Co., Ltd. was founded in 2000, is a high-tech enterprise focusing on industrial controller research and development and industrial Internet development. Then, we are a manufacturer with a research and development center and are now launching our brand LicOS, moreover, we support OEM and ODM. We also possess many certifications to ensure products' safety and quality, such as, CE certifications, ISO series certifications
In the LicOS PLC and PAC product family, UnionScience has launched EC300 series small and medium-sized PLC, EC400 series large PLC, MC600 series PAC, GL100 series distributed IO system, covering nearly 100 types of CPU modules, remote communication modules and IO modules. It meets the application requirements of logic control, sequence control, process control, motion control, edge intelligence and other industrial control scenarios, and has been widely used in transportation, logistics, chemical industry, new energy, machinery, high-end equipment manufacturing and other fields, providing personalized solutions for the automation field.
We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
FAQ
Q1: Are you trading company or manufacturer?
We are manufacture. We can give you one-stop station automation purchasing. Q2: ls there any engineer can help for technical supporting? Sure, we have. Our technical team can help you for selecting PLC, Servo motor & drive, VFD(Variable Frequency Drive), Inverter, and so on. If you need any help, you can contact our technical department directly. Q3: Do you support customization? Yes, we do. We support products customization, such as, logo customization, package customization, and so on. Q4: Do you supply 100% original and new products? Of course, yes. No copy, no fake, no refurbished! Original only! Q5: How long is your leading time? Generally 2-3 working days if the goods are in stock. If large quantity, it will take 10-15 working days after getting the payment. If not common products, always need 3-4 weeks or 6-8 weeks to order. Q6: How long is your delivery time? It's up to your order quantity and shipping channels choices. We have many cooperatives shipping channels, such as, by sea, by express, by air, by land, and so on. If your order quantity is less, we could ship the package out by express, the delivery time just needs 3-7 days.If your order quantity is large, we could ship the package out by sea, the delivery time is about 25-45 days.Other shipping channels delivery time is about 15-25 days. Q7: Do you support samples? Yes, we support partial products samples. Q8: Do you support after sale warranty service? Yes, we support after sale warranty service within 1 year. All fees depends on the actual situation.

---
