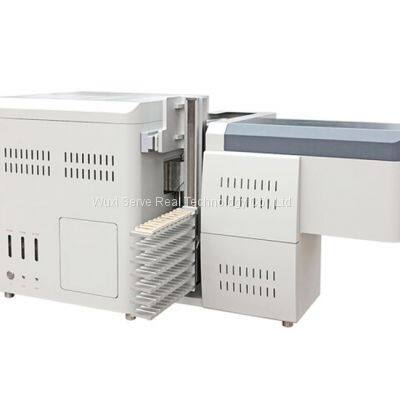

This sulfur content analyzer adopts infrared absorption method to measure the total sulfur content of coal, coke, petroleum and other substances, meeting ASTM D1552 and ISO 19579 test standards.
Model
| MJ-SC-IR70
| MJ-SC-IR12
|
measuring range
| 0.01%~40% (can be expanded according to user requirements)
|
Test method
| Infrared spectral absorption method
|
Resolution of sulfur measurement
| 0.001%
|
Working furnace temperature
| 1300 ℃ Temperature, accuracy: ± 1 ℃
|
Sample mass
| 300 ± 10mg (coal, coke); 200 ± 10mg(Coal, coke), 100 ± 10mg (petroleum products)
|
Sample feeding method
| Automatic sample sending and discarding
|
MCPC module
| √
| //
|
Touch screen
| /
|
|
Built-in balance
| /
| /
|
Number of samples
| 70 samples can be placed at a time, setting out in cycles, adding, deleting and inserting test samples at any time
| 12 samples can be placed at a time, setting out in cycles, adding, deleting and inserting test samples at any time
|
Single sample analysis time
| About 2min
| About 3min
|
Accuracy
| within the uncertainty range of the standard sample
|
Power
| ≤4KW
|
Working power supply
| AC220V±22V/50H
|
Overall dimensions
| 1240×660×630(mm)
| 670×580×720(mm)
|
Net weight
| 120kg
| 87kg
|
|
|
|
|
