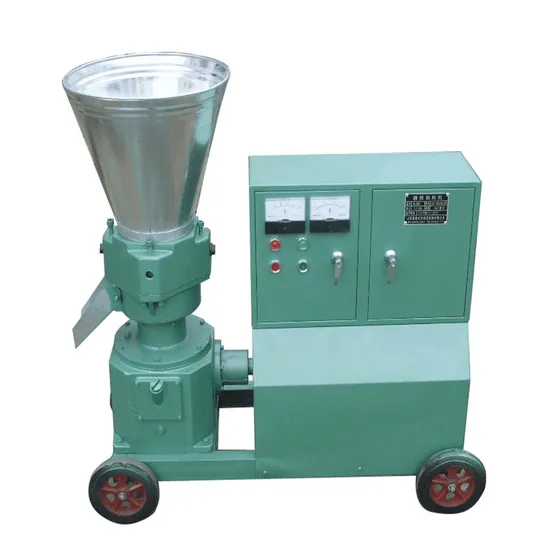

Kl120c 2.2kw Poultry Sawdust Small Livestock Pelletizer Animal Feed Mini Pellet Mill

Product Description

Kl120c 2.2kw Poultry Sawdust Small Livestock Pelletizer Animal Feed Mini Pellet Mill Product Description
Features:
1, reasonable structure design, safety, low noise, will not cause harm to humans

2, the material can dry dry-out, without drying, self-made motors, low energy consumption, high yield.

3, easy to operate, simple and practical, stable

4, for a variety of materials, molds can adjust itself to ensure the suppression effect.

5, with vertical feeding, natural materials fall by gravity, an effective solution to the wood raw material problem of poor mobility

Flat Die Pellet Mill---7.5kw, 380V, 50Hz, Three Phase

1. This machine is driven by 7.5kw, 380V, 50Hz, three phase electrical motor.

2. This machine can both make animal feed pellets and wood sawdust pellets

3. The die hole size can be adjustable, there are 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm and 10mm for your choose.

4. The length of the final pellets can be adjustable, too.

5. Feed Capacity: 200-300kg/h Sawdust Capacity: 110-140kg/h

Product Parameters
Technical Parameters of KL Series Pellet Machines

Model	Power	Capacity	Pellet dia.	N/G weight	Packing size	Qty/20'/40'
KL120B	2.2/3kw	50-70kg/h	2.5-10mm	80/100kg	75*31*62cm	172/360set
KL120C	2.2/3kw	50-70kg/h	2.5-10mm	80/100kg	75*31*62cm	172/360set
KL150B	4kw	100-200kg/h	2.5-10mm	100/120kg	77*34*68cm	88/186set
KL150C	4kw	100-200kg/h	2.5-10mm	100/120kg	77*34*68cm	88/186set
KL200B	7.5kw	200-300kg/h	2.5-10mm	200/230kg	100*45*93cm	64/134set
KL200C	7.5kw	200-300kg/h	2.5-10mm	200/230kg	100*45*93cm	64/134set
KL230B	11kw	300-400kg/h	2.5-10mm	280/310kg	115*50*97cm	52/108set
KL230C	11kw	300-400kg/h	2.5-10mm	280/310kg	115*50*97cm	52/108set
KL260B	15kw	400-600kg/h	2.5-10mm	330/360kg	120*50*103cm	38/80set
KL260C	15kw	400-600kg/h	2.5-10mm	330/360kg	120*50*103cm	38/80set
KL300B	22kw	600-800k/h	2.5-10mm	430/470kg	132*52*107cm	36/76set
KL300C	22kw	600-800kg/h	2.5-10mm	430/470kg	132*52*107cm	36/76set
KL360C	22kw	700-900kg/h	2.5-10mm	470/500kg	135*56*107cm	32/66set
KL400C	30kw	900-1100kg/h	2.5-10mm	630/680kg	145*62*115cm	16/32set

Raw material size before pelletizing
The maximum size of the materials cannot exceed the diameter of the pelletizing hole. For example, if the diameter of the hole is 6mm, the length of the raw material cannot be more than 6mm. Please ensure the proper size of raw material according to the diameter of the hole. The pellet size can be 2.5-10mm, if you want to make animal feed pellets, 2.5mm and 4mm are ok, if you want to make the wood pellets, 6mm and 8mm are better.
Moisture content before pelletizing
a)The requirement of moisture depends on different kinds of raw materials.
b) The moisture content of sawdust for the KL series die-driving pellet mill is specified to 10%-18%; and MKL series roller-driving pellet mill is 10%-14%. The materials should be mixed evenly.
Working principle of the poultry feed making machine
a) It can process the oil cake and other mixed waste material to granule at one time. And it is columned granule feed and have slippery firm.
b) During the process of producing granule, the temperature can almost reach 70 to 80 centigrade. It can make flour into paste. The inner granule is cooked and fully penetrated, so that not easy to go moldy and degenerative. Then it can be stored for a long time and improve poultry dainty and assimilation function. Output Products from Machine
Input&output

Kinds of Raw Materials

Pellets as Animal Feed Raw Materials: soybean meal, corn, straw, green fodder, meat and bone meal, whey powder, fish meal, alfalfa, straw, grass, leaves, etc.

Pellets as Stove Fuel Raw Materials: straw, alfalfa, wood waste, cornstalks, cardboard, grass, leaves, clippings,rice husks, branches, wood shavings, sawdust,etc.
