Car Painting Room Auto Body Paint Bake Oven Prep Station Mixing Room Infrared Lamp

Product Description

Product Description Aodotop Car Painting Room Auto Body Paint Bake Oven Prep station Mixing Room Infrared Lamp
Technical specification

AODOTOP Car Painting Room Auto Body Paint Bake Oven Prep station Mixing Room Infrared Lamp

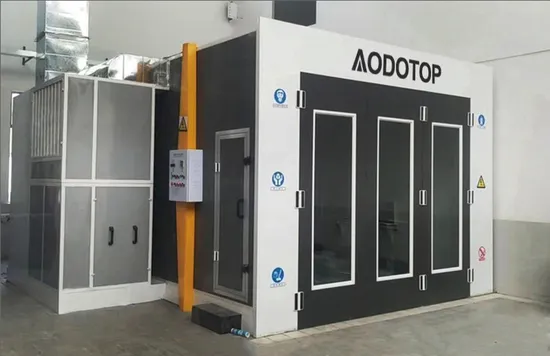

AD-350 Spray Booth
Outside Size:(mm)	7000*5350*3400	Front Door:(mm)	2900*2600
Inside Size:(mm)	6900*3900*2650	Total Power:(KW)	46.5
Wall Panel:	Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation. High quality galvanized steel roof panel.
Basement:	Galvanized steel assemble,280mm high,with steel structure support,2 rows grills ,3 rows of diamond plates. 2 ramps,external setting,620*2000mm(W*L)/pc.
Fans:	1*7.5kw turbo fans, each set air capacity:25000m³/h, Direct drive. 1*7.5kw turbo fans, each set air capacity:25000m³/h,Direct drive
Purification system	Pre-filter,high efficiency filter(ceiling filter),floor filter(fiberglass filter).
Heating System	10 sets of 3KW far-infrared lamp. Maximum operating temperature: 80ºC.
Lighting System	8units*4pieces*16w LED Lighting
	Optional
Controlling system	Power switch,spray/baking switch,light switch,emergency stop,etc.
Voltage/frequency	380V,50HZ,3phase

Detailed Photos Dear Customoer,
The spray booths will be produced with your own requires, such as size, color(red, blue, light gray,white), heating method(infrared lamps, diesel burner or LPG burner), wall panel(rock wool or EPS), basement (inner ramp, in-ground basement, full grilles basement, or 3 rows grilles +2 rows diamond plated ), blower( centrifugal blowers, turbo blowers or belt blowers), and so on.
You are welcome to send inquiry, and we talk about more details of the spray booth you are looking for!
