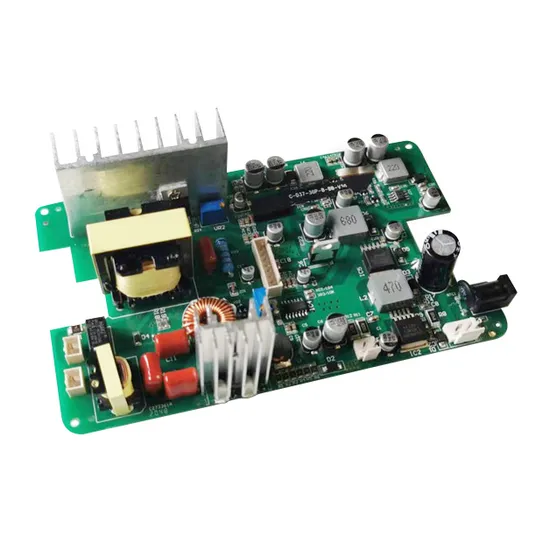

Control Board for Snacks Vending Machine Customized PCBA Board

US$1.00
1-499 Pieces
US$0.50
500-999 Pieces
US$0.25
1,000+ Pieces

Basic Info.

Model NO.
pcba
Material
Fiberglass Epoxy
Application
Consumer Electronics
Flame Retardant Properties
V0
Mechanical Rigid
Rigid
Processing Technology
Electrolytic Foil
Base Material
Copper
Insulation Materials
Organic Resin
Brand
OEM
Product Name
Turnkey PCB Assembly Services
Quality Grade
Ipca610
Surface Finish
Lead/Lead-Free HASL/Immersion Gold
SMT Capacity
3 Million~4 Million Soldering Pad/Day
DIP Capacity
100 Thousand Pins/Day
PCB Material
High Quality Fr4, Rogers, and Aluminum Material
Shipping
by DHL, FedEx, UPS
Certificate
UL, Reach, RoHS and CQC
Solder Resist Color
Green;Red;Yellow;Black;White
Solder Mask Color
Yellow;Black;White;
Delivery Time
Sample Is Available Within 3days
Testing Service
100% Aoi Lct Fct Testing
Design
Original
Transport Package
Transport Package
Specification
50mm*50mm~510mm*460mm
Trademark
Printed Circuit Board
Origin
China
Production Capacity
3 Million~4 Million Soldering Pad/Day

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
2.000kg

Product Description

Shenzhen Jingxin Electronic Technology Co.,Ltd(JXE )has offered high-quality PCBs and the best PCB assembly service all over the world since 2002.
We have been specializing in quick-turn PCB prototyping and turnkey PCB assembly services and are one of China's leading companies in the industry.
As electronics engineers' best partners, we remain committed to providing unparalleled service.
All of your orders will be reviewed by JXE engineers. Our principle is to use our profession to ensure that you get exactly what you expect.
Overview of the Company OFFICE
SMT Workshop Production line First sample testing Automatic welding
PCB Manufacturing Service
PCB layout, PCB design according to your idea PCB copy/clone Digital Circuit Design / Analog Circuit Design/ lRF Design /Embedded Software Design Firmware and Microcode Programming Windows Application (GUI) Programming/Windows Device Driver (WDM) Programming Embedded User Interface Design / System Hardware Design...
PCB Assembly Service
Electronic components material purchasing Bare PCB fabrication PCB Assembly Service. (SMT, BGA, DIP) FULL Test: AOI, In-Circuit Test (ICT), Functioal Test (FCT) Cable, Wire-harness assembly,sheet metal,Electrical cabinet Assembly service Conformal coating service Prototyping and mass production... PCB ASSEMBLY MANUFACTURER Rigid PCB assembly
Rigid - flex PCB assembly
Flexible PCB assembly
FR-4 PCB Assembly
Advanced PCB Assembly
Aluminum PCB Assembly
Copper PCB Assembly
PCB showcase
PCBA Showcase

JXE a real PCB assembly manufacturer in Shenzhen, which have dust-free workshop which cover an area of over than 10000m², almost 550 employees, more than 30 production lines include SMT,DIP,automatic welding,aging test.
We have over 50 SMT machines from Japan and Korea with the most advanced production equipment
pick and place machine, Reflow oven, Wave soldering Machine, X-RAY, AOI testing machine and the most professional technical personnel.
PCB ASSEMBLY CAPABILITIES We have a workforce of approximately 550 people. We are proud of our reputation as a leading specialist in surface-mount, thru-hole and mixed technology PCB assembly and electronic manufacturing services as well as turn-key electronic PCB assembly.
Our PCBA capabilities are listed in the table below:
1 Min. Order Quantity ≥1PC
2 Board Type Rigid PCB, Flexible PCB,Rigid-Flex PCB
3 Assembly Types Surface mount (SMT), Through-hole (DIP), Mixed technology (SMT & Thru-hole)
4 Board Size 50mm*50mm~510mm*460mm
5 Quality Grade IPC-A-610
6 Min Package 01005(0.4mm*0.2mm); Min. BGA Dia. 0.14mm; Min. BGA Pitch 0.2mm
7 Mounting Accuracy ±0.035mm(±0.025mm) Cpk≥1.0 (3σ)
8 Surface Finish Lead/Lead-free HASL, Immersion gold,OPS etc.
9 SMT Capacity 3 Million~4 Million Soldering Pad/day
10 DIP Capacity 100 Thousand Pins/day
11 Lead time 24 hours expedited service can be offered. 3- 4 days normally for PCBA prototype orders. We will give you accurate lead time when we quote for you.

Multiple Layer PCB Stack-up
PCB Material
PCB laminate users hign quality Fr4,Rogers,and Aluminum material for PCB production.
4-Layer PCB with 2 Routing Layers,a Ground Plane and a Power Plane 6 layer PCB has GTL, GBL,and 4 inner layers. Every signal thattravels from 1 to 6 layers 8 layer PCB has GTL, GBL,and 6 inner layers. Every signalthat travels from 1 to 8 layers 10 layerPCB hasGTL,GBL,and 8 inner layers. Every signalthat travels from 1 to 10 layers
Quality Guaranteed
Our factory is fully compliant with standard of ISO 9001:2015 AND IATF 16949 quality systerm management .All the products are certificated with UL,REACH,RoHS and CQC.
Quality and Policy :
1.Continually improve our quality, efficiency, service to satisfy thecustomer's requirement.
Quality Specifications:
Quality System:
1. ISO-9001:2018 Quality System Standard
2. Quality Standard: IPC-610-D class 2,
3. Soldering Standard: J-STD-001 class 1,2,3
4. ESD Standard: ESD-MIL-STD-1686
5. Workshop management:7S
6. FAI-first article inspection
7. In process visual inspection
8. AOI inspection
9. Machine calibration and preventative maintenance
10. ERP material and process management ( ERP=enterprise resource planning computer system)
Quality standards
IPC-A-610D-G
RoHS management
Product compliant: RoHS
RoHS prohibited substances list :
NO. Name The upper limit(ppm=mg/kg)
1 Pb 0.1%(1000ppm)
2 Hg 0.1%(1000ppm)
3 Cd 0.001%(100ppm)
4 Cr VI+ 0.1%(1000ppm)
5 PBB 0.1%(1000ppm)
6 PBDE 0.1%(1000ppm)
Testing and PCBA maintenance department
Jingxin provide custom test service according to client's requirements and products. Usually Jingxin PCBA Techoffers a full range of testing service. Including: *AOI(Automatic Optical Inspection)
* Function Testing
* In Circuit Testing
* Testing Jig
* Testing Service
* X-Ray for BGA Testing
* Printing Solder Paste Test
Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers.
Using our X-Ray machine, we test PCBs to component level and all wiring is fully inspected and tested. Flash
testing and earth bonding tests can also be undertaken where required
On-time Shipping Guaranteed
99% on-time shipping by DHL 24 hour online customer service Shorted delivery by DHL to only 3-5 days
24 hours expedited services for PCB and PCBA fabrication,Track your PCB and assembly order status online
Common packaging:
PCB: Vacuum packaging with carton box
PCBA:ESD packaging with carton box
Reasonable Price Guaranteed
Instant quote with no hidden cost $5 for 5-10pieces.10*10cm PCB prototypes $30 OFF for SMT assembly components cost
Exhibition Show
FAQ Q1. What is needed for quotation?
1.Gerber file & Bom list. 2. Clear pics of pcba or pcba sample for us. 3.Test method for PCBA.
Q2. What file formats do you accept for production? 1. Gerber Files (Eagle and electronic print circuit board File are available).
2. BOM list. (Excel(PDF, WORD, TXT)
3. Clear pictures of PCBA or PCBA samples to us.
4. Pick N Place file. 5. Test procedure for PCBA.

Q3. Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers are never shared with any third parties.

Q4. MOQ? There is no MOQ. We are able to handle small as well as large volume production with flexibility.

Q5. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the freight.

Q6. How can you ensure the quality of the PCBs? Our PCBs are 100% test including Flying Probe Test, E-test and AOI.

Q7. Can we visit your company? No problem.You are welcome to visit us in Shenzhen.

Quote Requirement:
Gerber file of the bare PCB board
BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution (for PCB assembly).
Testing Guide & Test Fixtures if necessary
Programming files & Programming tool if necessary
Schematic if necessary
