Textile Machinery Intelligent Fiber Measurement Instrument Optical Microscope Fibre Fineness Tester

Product Description

Product Description

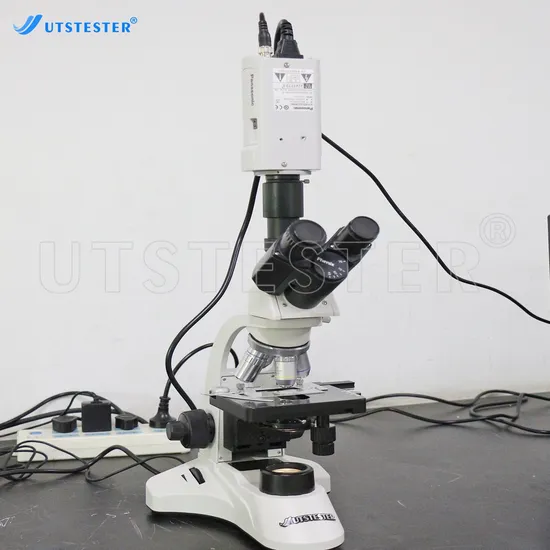

By high-resolution industrial camera and computer connected to the optical microscope, relying on professional analysis software to complete the fiber diameter and sectional area of the test, etc., and can measure mixed fiber content of each fiber.
Standard

ISO 137, ASTM D2130, ISO 17751. GB/T10685, 116988 FZ/T30003 SN/T0756 AATCC 20A

Configuration
Microscope, industrial camera (CCD), image acquisition card, computer and special software
Function
The diameter of the circular cross section filaments or fiber, fiber fineness measurement and calculation of various composition of fiber content in the blended yarn percentage.
Function To analyze the materials To find cross sectional view of fibers To find the diameter of fiber To analyze the properties of fiber To analyze the structure of yarn For qualitative analysis of fiber Feature
1. Through the digital camera get fiber longitudinal microscopic image, operators can quickly and easily realize fiber longitudinal diameter test, species identification, statistic report generation, and other functions.
2, Provides the accurate gauge calibration function, fully guarantee the accuracy of the fineness of test data.
3, Provides professional image automatic analysis and fiber diameter reminder function, make the fiber diameter test more easy to do.
4, Longitudinal test, for non circular cross section fiber provide industry standard conversion functions.
5, Fiber fineness test results and species classification data can be automatically generated or exported to EXCEL format.
6, Suitable for animal fiber, chemical fiber, cotton and linen fiber diameter measurement, measurement speed is fast, easy to operate, reduce the human error.
7, Fineness measurement range 2 to 200 microns.
8,Provides the special animal fiber, chemical fiber standard sample gallery, facilitate experimental personnel control, improve the ability of identification.
9, Equipped with special microscope, color pictures of high resolution camera, brand computer, printer, fiber morphology, image analysis measurement software.
Product Parameters

Model	F001
Measuring range	2~200μm±0.5μm
Measurement repeatability	±0.1μm
Measurement speed	50μm/min
Magnification	1000X
Dimension	1200×500×600cm
Weight	25kg

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
