TPR Outsoles Injection Moulding Machine

Product Description

>> Descriptions
Products:Specialized in producing one color and two colors outsoles for various kinds of shoes,
such as sports shoes, leather shoes, soccer shoes, casual shoes, etc.
Material: Suitable for all kinds of thermoplastic raw materials, such as TPR TPU PVC and TR.
>> Features
Mold Carrier Unit
1. Mold thickness automatically compensated hydraulic clamping system.
2. Three-position (0°-90°) mold rotating head, providing multi-mode production capability
for one color and two color unit soles.
3. Unique rotating head positioning mechanism, providing precise and fast mold positioning.
4. Upper and bottom molds ejector units for easy, fast and distortion free sole removal.
5. Automatic sliding unit for flexible and easy sole collection and for easy insertion parts placement.
6. Separate blowing system on three faces rotating head and bottom mold plate, providing easy soles and sprue removal.
7. Suitable for molding TPU in multi-color unit soles by injection system.
Feeding Unit
1. Electric motor driven injection point height adjustment system, suitable for different size of mold.
2. Adjustment or injection point with horizontal leveling, no material heap at channel or extruders.
3. Precise barrel temperature control with P.I.D. control system.
4. It is easy and fast for material changing with less waste.
Electric Control System
1. With self-diagnosis analysis system, current status of machine operation can be monitored to insure smoothly production.
2. Providing with work file records, processing parameters for different molds can be saved with individual files, production is more efficient.

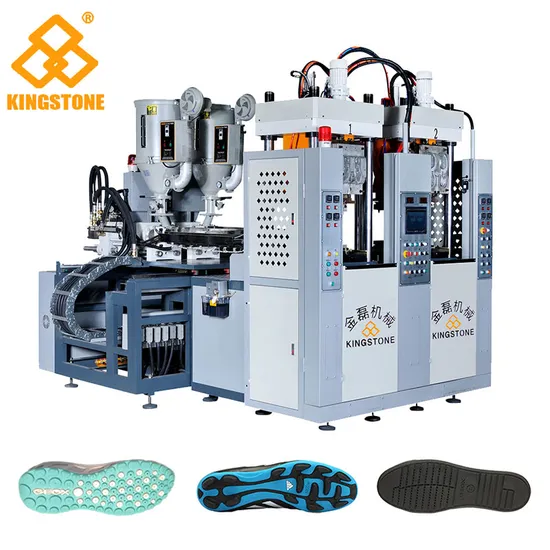

>> Machine Photos
>> Specifications

Machine model		JL-208-2S2G		JL-208-4S2G
Mould-clamping Unit
Work station		2		2
Clamping force	TON	220		220
Opening stroke	MM	350		350
Mould dimension	MM	300*400		300*400
Mould height	MM	100-200/150-250		100-200/150-250
Rotating head	.	0°-90°		0°-90°
Injection Unit
Injector	SET	2		2
Screw diameter	MM	60/65/70		60/65/70
Screw L/D ratio	L/D	22		22
Max.injection volume	cm3	650-1000		650-1000
Injection pressure	Kg/cm²	650		650
Screw rotation speed	R.P.M	0-200		0-200
Electricity Consumption		Normal	Servo	Normal	Servo
Heating power of injector	KW	11*2	11*2	11*2	11*2
Hydraulic unit motor	KW	22.5	15+11	22.5+13	15+15
Total power	KW	44.5	48	57.5	52
Temperature control	Section	4	4	4	4
Power consumption per hour	Kw/h	25-30	15-20	32-37	22-27
Dimension and Weight
Machine dimension(L*W*H)	M	3.5*3.8*2.8		7.5*3.8*2.8
Machine weight	TONS	9		15

>> Finished Products
Below products is samples for your reference.
We also can make custom design with your requirements.
>> Customer Visits
>> Package & Shipping

---
