Standard/Customized Static and Dynamic Seal NBR/HNBR/Sil/FPM Rubber O Ring

Product Description

--We have various rubber O-rings, such as NBR, EPDM, SIL, FKM, ACM, CR, HNBR, FVMQ, etc.
--Our usual colors are black, white, brown, red, green, blue and yellow.
--We can also customize the color according to the color number.
--We can provide any hardness in the range of 10-90 Shore A.

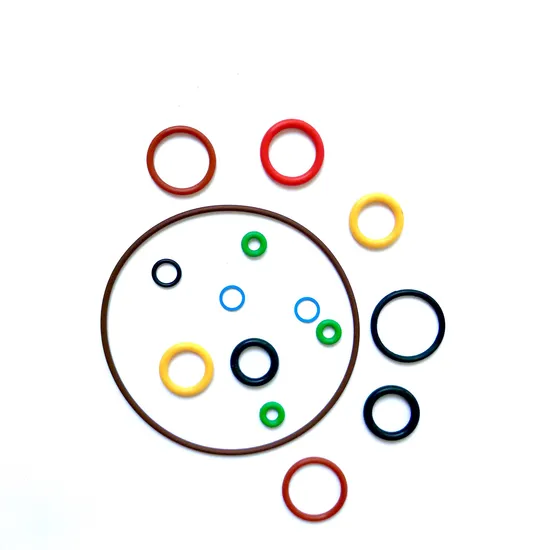

1. Rubber O-ring Introduction
It is rubber ring with O-shaped cross section, it has high elasticity, insulation and long service life.
It is easy to manufacture, inexpensive and reliable, so it is commonly used in machinery manufacturing,
automotive,electrical, medical and other industries,and plays the role of sealing, insulation, cushioning,
fixing, etc. Therefore, rubber O-ring is one of the most commonly used seals in global machinery.
2. Raw Material Selection
Rubber O-ring has a variety of raw materials. Different materials have different properties and prices.
The order of material prices is: NBR<SIL<EPDM<CR<ACM<FKM<HNBR<FVMQ
We should choose the appropriate material according to its use environment.
The following table is the main characteristics of the material. If you want to know more about a
material, please feel free to contact us.

Rubber	Characteristic	Application
NBR	Oil resistance	Oil tank, lubricating oil tank, mechanical equipment, use environment without special requirements
EPDM	Strong water and steam tightness	Water pump, bathroom, automobile brake system
SIL	Good elasticity, wide temperature range, wide practicability	Electronics, food and medical industry
FKM	High temperature resistance, chemical resistance	Automobile engine, fuel system, mechanical equipment of chemical plant
ACM	High temperature resistance (weaker than FKM)	Automobile engine, fuel system
HNBR	Low temperature resistance	Air conditioning and refrigeration industry
CR	Flame retardancy	Ozone environment, flame retardant products
FVMQ	All performance is excellent	Aerospace, high-end automobile and other high-end fields

Our factory has been in the rubber seal manufacturing service for almost 20 years.
Especially O-rings and custom rubber parts in Auto, Medical and Sanitary industries.
1. Top quality and sophisticated rubber products, the minimum dimensional tolerance
can reach ± 0.05mm.
2. A large number of ready-made O-ring molds, which can almost meet all sizes you
need.
3. We can provide OEM/ODM services and produce non-standard rubber parts according
to your samples or PDF, STP, DWG drawing files.
4. Raw material inspection before production and 100% product inspection after
production.
5. Have our own laboratory and a variety of testing equipment, can issue Rubber
Physical Property reports.
6. We can provide you with free samples before order.
Our factory has passed IATF16949:2016 quality system certification.
Our products and raw materials have RoHS, PAHs, REACH and FDA certifications.
Q1. What is the normal lead time?
A: Average lead time for samples is 3-5 days, production time after sample approval
is 2-3 weeks. If tooling is involved, the lead time of production tooling is 10-15 days.
Q2. What is your standard packing?
A: All the goods will be packed by PE bag inside and carton outside. Special packing
method can be accepted when needed.
Q3. Which payment way is workable?
A1: Irrevocable L/C, Cash, PayPal, Credit card and T/T transfers.
A2: 30% deposit in advance, 70% balance before shipment after goods are ready. If
tooling fee is involved, 100% tooling fee in advance.
A3: Payment way can be negotiated.
Q4. How do you ensure the quality of your products?
A1: We mainly use ASTM D2000 standard to define the quality of the rubber materials.
A2: We only use rubber raw materials certified by RoHS, FDA , REACH, PAHs.
A3: We will regularly test our rubber raw materials and issue rubber physical property
reports to monitor their quality.
Q5. What after-sales service do you have?
A1: We can provide technical support for any problems in use.
A2: If the product has any quality problems, it can be refunded in full.

---
