Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Certification
CE, ISO9001: 2000
Gross Power
260HP/2200rpm
Drive Method
Fully Hydrostatic Type
Drive Motor
Axial Piston Motor, in-Shoe Design
Reduction System
Planetary Reduction Gear
Max. Drawbar Pull
29,500 Kgf
Max. Travel Speed (High / Low)
6.4 Km/Hr (3.98 Mph) / 3.6 Km/Hr (2.11 Mph)
Parking Brake
Multi Wet Disc
Pilot Control
Two Joysticks with One Safety Lever
Transport Package
249.7cbm
Specification
11.22*3.28*3.33m
Production Capacity
500/Year
Product Description

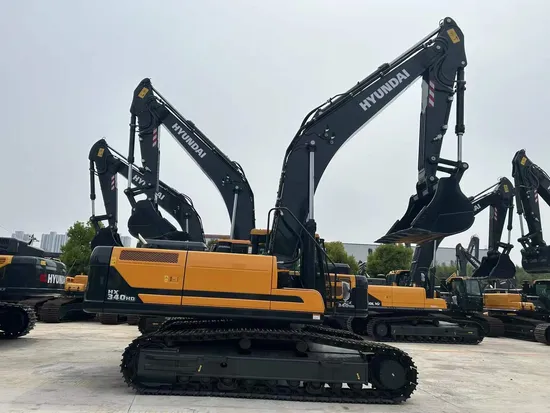

New Korean Excavators HX340HD Crawler Excavator 33 Ton in Algeria
Product Description
New Cabin for More Comfort
Low noise, low vibration, and ergonomic design make the cabin space more comfortable and pleasant! With focus on safety and convenience of operators, the HX Series allows rapid and safe equipment inspection anytime and anywhere, providing an optimal environment for operators to work.
Improved Instrument Panel for Easier Monitoring
Many electronic functions are concentrated in the most convenient spot for operators to improve work efficiency. The highly-advanced infotainment system, a product of HCE's intensive information technology development, enables both productivity and comfort while working! The HX Series is designed with the operator in mind.
It's Convenient, Easy and Valuable
Hi MATE Hyundai's newly developed remote management system, utilizes GPS-satellite technolgy to provide customers with the highest level of service and product support available. Hi MATE enables users to remotely evaluate machine performance, access diagnostic information, and verify machine locations at the touch of a button.
Specification
Boom length
| 6450mm
|
Arm length
| 3200mm
|
Track shoe width
| 800mm
|
Max. digging reach
| 11150mm
|
Max. digging reach on ground
| 10950mm
|
Max. digging depth
| 7360mm
|
Max. vertical wall digging depth
| 6330mm
|
Max. digging height
| 10360mm
|
Max. dumping height
| 7260mm
|
Dimension
