250kg-16 Chinses Brand European-Style Electric Chain Crane Hoist with Electric Trolley

Product Description

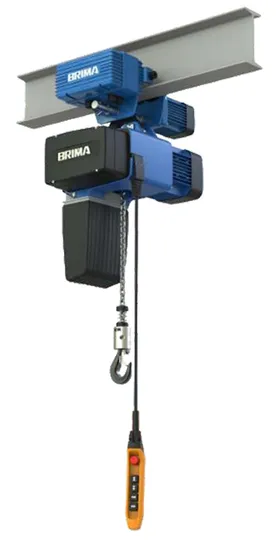

250kg-16m/min European-style Electric Chain Hoist With Electric Trolley

The European-style hoist with electric trolley is a lifting device that combines a European-style electric hoist with an electric trolley. It has many characteristics and advantages. Here is a detailed introduction for you:
Structural features

Compact design:The European-style hoist itself has a relatively compact structure. After being installed on an electric trolley, the overall occupied space is small. High-strength materials:Whether it is the main structure of the hoist or the frame and other components of the electric trolley, they can withstand a large weight and various stresses during operation. High-quality wheel system: The wheels of the electric trolley are made of high-quality alloy steel or other wear-resistant materials and have good wear resistance and load-bearing capacity.
Working principle Lifting principle:The lifting mechanism of the European-style hoist drives the drum to rotate through the motor, and the wire rope wound on the drum is retracted and released accordingly, thereby realizing the lifting and lowering of heavy objects. Trolley operation principle:The electric trolley part is equipped with a special traveling motor. The motor drives the wheels to run on the track and drives the entire European-style hoist to move in the horizontal direction.

Performance advantages
High efficiency with fast lifting and running speeds. Precise positioning with an advanced control system. Multiple safety protection devices. Low noise operation. Easy maintenance due to modular design.
Application fields
Industrial production lines and assembly lines. Logistics and warehousing for loading, unloading, and handling. Construction for lifting materials and tools. Ports and terminals for handling containers and goods.

Model	Lifting Weight (kg)	Lifting Speed	Numbers Of Chain	Working Lever FEB/ISO
BMS0.125-8-4-01M	125	8m/min 2m/min	1	2m/5M
BMS0.125-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.25-8-4-01M	250	8m/min 2m/min	1	2m/5M
BMS0.25-12-4-01M		12m/min 3m/min	1	2m/5M
BMS0.25-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.5-8-4-01M	500	8m/min 2m/min	1	2m/5M
BMS0.5-12-4-01M		12m/min 3m/min	1	2m/5M
BMS0.5-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.5-24-4-01M		24m/min 6m/min	1	2m/5M
BMS0.5-4-4-02M		4m/min 1m/min	2	2m/5M
BMS01-6-4-01M	1000	6m/min 1.5m/min	1	2m/5M
BMS01-8-4-01M		8m/min 2m/min	1	2m/5M
BMS01-12-4-01M		12m/min 3m/min	1	2m/5M
BMS01-16-4-01M		16m/min 4m/min	1	2m/5M
BMS01-4-4-02M		4m/min 1m/min	2	2m/5M
BMS01.6-6-4-01M	1600	6m/min 1.5m/min	1	2m/5M
BMS02-6-4-01M	2000	6m/min 1.5m/min	1	2m/5M
BMS02-8-4-01M		8m/min 2m/min	1	2m/5M
BMS02-4-4-01M		4m/min 1m/min	2	2m/5M
BMS2.5-6-4-01M	2500	6m/min 1.5m/min	1	2m/5M
BMS2.5-8-4-01M		8m/min 2m/min	1	2m/5M
BMS2.5-4-4-01M		4m/min 1m/min	1	2m/5M
BMS3.2-3-4-02M	3200	3m/min 1m/min	2	2m/5M
BMS3.2-4-4-02M		4m/min 1m/min	2	2m/5M
BMS3.2-6-4-02M		6m/min 1.5m/min	2	2m/5M
BMS05-3-4-02M	5000	3m/min 1m/min	2	2m/5M
BMS05-4-4-02M		4m/min 1m/min	2	2m/5M

---
