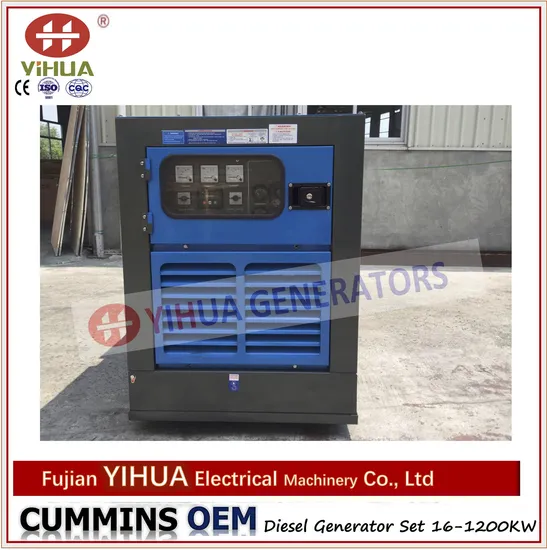

Electric Portable Power Generator Cummins Silent Canopy Diesel

US$3,500.00-29,140.00 1 Piece (MOQ)

Basic Info.

Model NO.
GFS-20KVA TO GFS-1500KVA
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Engine
Cummins Dcec
Alternator
Stamford/ Leroy Somer
Breaker
MCCB Breaker
Governor Type
Electronic Type
Fuel Tank
8-10 Hours Running Time for Full Load
Certificate
CE/ISO/SGS/Soncap/Saso
Voltage
220V/127V 380V/220V 400V/230V 415V/240V 480V/277V
Frequency
50Hz
Controller
Smartgen, Deepsea, Comap, Datakom, Harsen, etc
Transport Package
Ship with Plywood Cases
Specification
Fuel Diesel power generating set
Trademark
YH or Authorized OEM brand optional
Origin
Fu′an, Ningde
HS Code
8401200000
Production Capacity
1000

Product Description


Generator set Techinical specification
Generator set performance Engine performance Dim. L*W*H
Genset model Prime power Standby power Fre. Model Power Full load
Fuel COM.
Open type Weight
KW kVA KW kVA Hz KW (L) (mm) (kg)
GF/GFS-C16KW 16 20 26 32.5 50 4B3.9-G1/G2 24 5 1700*750*1150 850
GF/GFS-C20KW 20 25 26 32.5 50 4B3.9-G1/G2 24 6 1700*750*1150 850
GF/GFS-C30KW 30 37.5 33 41.3 50 4BT3.9-G1/G2 36 8 1820*760*1150 900
GF/GFS-C34KW 34 42.5 37.4 46.8 50 4BT3.9-G1/G2 36 8 1820*760*1150 950
GF/GFS-C40KW 40 50 44 55 50 4BTA3.9-G2 50 9.8 1950*830*1150 1050
GF/GFS-C45KW 45 56.25 49.5 61.9 50 4BTA3.9-G2 50 13 1950*830*1150 1070
GF/GFS-C58KW 58 72.5 63.8 79.8 50 6BT5.9-G1/G2 86-92 23 2150*880*1350 1120
GF/GFS-C68KW 68 85 74.8 93.6 50 6BT5.9-G1/G2 86-92 23 2150*880*1350 1120
GF/GFS-C80KW 80 100 88 110 50 6BT5.9-G1/G2 86-92 23 2150*880*1400 1120
GF/GFS-C90KW 91 113.75 100.1 125.1 50 6BTA5.9-G2 110 23 2350*950*1360 1200
GF/GFS-C100KW 100 125 110 137.5 50 6BTA5.9-G2 110 23 2350*950*1360 1235
GF/GFS-C110KW 110 137.5 121 151.3 50 6BTAA5.9-G2 120 26 2350*950*1360 1400
GF/GFS-C128KW 128 160 140.8 176 50 6CTA5.9-G2 163 33.9 2470*950*1430 1900
GF/GFS-C144KW 144 180 158.4 198 50 6CTA5.9-G2 163 35.1 2470*950*1430 1900
GF/GFS-C150KW 150 187.5 165 206.3 50 6CTA5.9-G2 163 35.1 2470*950*1430 2000
GF/GFS-C160KW 160 200 176 220 50 6CTAA5.9-G2 183 38.7 2600*980*1450 2300
GF/GFS-C180KW 180 225 198 247.5 50 6LTAA8.9-G2 220 38.7 2600*1000*1450 2400
GF/GFS-C200KW 200 250 220 275 50 6LTAA8.9-G2 220 41.6 2600*1000*1500 2500
GF/GFS-C20KW 20 25 26 32.5 60 4B3.9-G1/G2 27 5 1700*750*1230 850
GF/GFS-C22KW 22 27.5 26 32.5 60 4B3.9-G1/G2 27 6 1700*750*1230 850
GF/GFS-C30KW 30 37.5 33 41.3 60 4BT3.9-G1/G2 40 8 1820*760*1240 900
GF/GFS-C34KW 34 42.5 37.4 46.8 60 4BT3.9-G1/G2 40 8 1820*760*1240 950
GF/GFS-C48KW 48 60 52.8 66 60 4BTA3.9-G2 60 9.8 1950*830*1270 1050
GF/GFS-C55KW 55 68.75 60.5 75.6 60 4BTA3.9-G2 60 13 1950*830*1270 1070
GF/GFS-C68KW 68 85 74.8 93.5 60 6BT5.9-G1/G2 92-102 23 2150*880*1400 1120
GF/GFS-C80KW 80 100 88 110 60 6BT5.9-G1/G2 92-102 23 2150*880*1400 1120
GF/GFS-C90KW 90 112.5 99 123.8 60 6BT5.9-G1/G2 92-102 23 2150*880*1400 1120
GF/GFS-C100KW 100 125 110 137.5 60 6BTA5.9-G2 120 23 2350*950*1360 1200
GF/GFS-C110KW 110 137.5 121 151.3 60 6BTA5.9-G2 120 23 2350*950*1360 1235
GF/GFS-C120KW 120 150 132 165 60 6BTAA5.9-G2 132 26 2350*950*1360 1400
GF/GFS-C144KW 144 180 158.4 198 60 6CTA5.9-G2 180 33.9 2470*950*1430 1900
GF/GFS-C150KW 150 187.5 165 206.3 60 6CTA5.9-G2 180 35.1 2470*950*1430 1900
GF/GFS-C160KW 160 200 176 220 60 6CTA5.9-G2 180 35.1 2470*950*1430 2000
GF/GFS-C180KW 180 225 198 247.5 60 6CTAA5.9-G2 201 38.7 2600*980*1450 2300
GF/GFS-C200KW 200 250 220 275 60 6LTAA8.9-G2 240 38.7 2600*1000*1450 2400
GF/GFS-C220KW 220 275 242 302.5 60 6LTAA8.9-G2 240 38.7 2600*1000*1500 2500
