Factory Wholesale Solid Carbide Face Milling Cutters

Product Description

Product Description

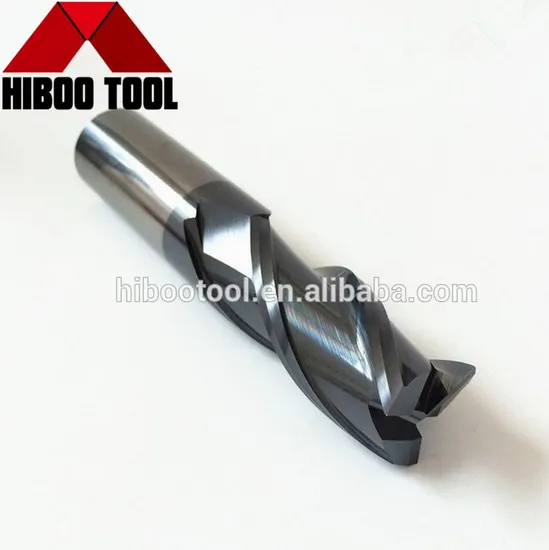

HRC55 3flutes Square end mills

Raw Material	Carbide, Tungsten Cobalt Alloy, tungsten carbide
Coating	AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano, or as your requirements
Overall Length	38-330mm (customized is acceptable)
Flute Diameter	0.3-40mm (customized is acceptable)
Diameter	4-40mm (customized is acceptable)
Precision	0.005-0.01 (high precision)
HRC	45/50/55/65 HRC
Controlling Mode	cnc tooling system
Processing Type	Finishing Maching
Suitable for	wood, cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel, etc.

1. SurfaceTiCN/TiN/TiAlN/Uncoated 2. Strength2500-4000N/mm2 Controling ModeCNC3. UsageMetal Chemical Composition6%-12%Co-WC4. Density14.45-14.90g/cm35. Chemical Composition: 10%Co-Wc6. Raw Material: Super Micro grain with Diameter less than 0.2UM7. International Industrial Standard: K10, K05-K15, K20-K30, K20-K408. Application areas: Machining of cast iron, nonferrous alloy,chill cast iron,hard steel,stainless steel,plastic materials,fiberglass,carbon fiber and other non-metallic. 9. Served industries: Aerospace,Transportation, Medical Equipment, Manufacturing,Mold Development,etc.
Product Specification
Suitable for processing steel, stainless steel, nickel alloy, Titanium alloy, cast iron, plastic and other materials' hardness below HRC55

(Order No)	Cutting	Flute	Shank	A.0.L
	d	l	D	L
1.0×3×4D×50L×3F	1	3	4	50
1.5×4×4D×50L×3F	1.5	4
2.0×6×4D×50L×3F	2	6
2.5×8×4D×50L×3F	2.5	8
3.0×8×4D×50L×3F	3	8
3.5×10×4D×50L×3F	3.5	10
4.0×11×4D×50L×3F	4	11
3.0× 8×6D×50L×3F	3	8	6
3.5×10×6D×50L×3F	3.5	10
4.0×11×6D×50L×3F	4	11
4.5×13×6D×50L×3F	4.5	13
5.0×13×6D×50L×3F	5	13
5.5×13×6D×50L×3F	5.5	13
6.0×15×6D×50L×3F	6	15
7.0×16×8D×60L×3F	7	16	8	60
8.0 ×20×8D×60L×3F	8	20
9 ×20×10D×75L×3F	9	20	10	75
10×25×10D×75L×3F	10	25
11×25×12D×75L×3F	11	25	12
12×30×12D×75L×3F	12	30
14×35×14D×100L×3F	14	35	14	100
16×40×16D×100L×3F	16	40	16
18×40×18D×100L×3F	18	40	18
20×45×20D×100L×3F	20	45	20

Packaging & Shipping
Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
We cooperated with DHL , Fedex, UPS ,TNT, EMS and other express you wanted.

Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.

Payment Term
T/T ,Western Union , MoneyGram,L/C
Company Profile
Changzhou Hiboo Tools Co., Ltd is a high-tech enterprise with all vitality, potential and comprehensive Strength. The company located in Changzhou, Jiangsu, China, a unique place near by Shanghai.We are Gold Supplier who specialized in producting and exporting Carbide End Mills, Drills, Inserts, Reamers and more other customized cutting tools.The efficient workshop and Imported 5AXIS grind machines run by skillful operators. The strict inspection standards to make sure each cutter is inspected by Zoller Measuring and Inspecting Machine. Now, Our monthly output up to 50000pcs of carbide end mills, drills ect, More than 20000 cutters are in stock which meet your urgent requirements. Enough Raw Materials in stock to keep the price stability.
