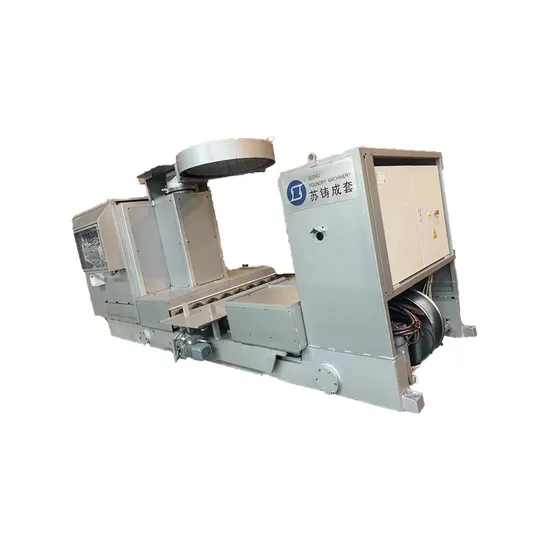

Automatic Molten Iron Transfer System, Foundry Machine

Product Description

Product Detail:
Automatic molten iron transfer system of liquid metal realizes automatic transfer from melting furnace to pouring machine. it can realize a series of action processes such as automatic connection of liquid metal, automatic spheroidization, automatic addition of inoculant and automatic dumping. It does not need manual operation to realize the whole process automation. The intelligent automatic transfer system of liquid metal will melt and pour. Effective connectio reduces the hidden safety hazards in the production process, improves the production effciency, improves the production environment of the factory,reduces the labor intensity of the workers, and also reduces the operation cost of the factory.
Technical characterisitics

1. Safety : Servo drive, laser ranging detection, switch monitoring, mechanical positioning, four - fold safety protection, ground rail operation, guardrail protection.
2 . Environmental protection: Cover seal reduces smoke and dust emission, centralized dust removal device can also be installed in fixed trajectory operation to meet environmental protection requirements.
3 . Accuracy: Servo motor drive + laser ranging, fast, stable and accurate positioning.
4 . Efficiency: Adopt the best plan, the best path, the least docking, the production rhythm is compact and achieve efficient transshipment .
5 . Intelligence: Profine twireless communication, automatic weighing automatic spheroidization, automatic slag spraying agent, automatic inoculant, reduce artificial operation.
6 . Concise: Low - voltage power supply by receiving and discharging cable drum or ground rail.
7 . Energy - saving: Energy - saving motor reducer, enclosure sealing and heat preservation during transshipment.
8 . Humanization: Real - time display of large screen in front of furnace with safe use, simple operation, set weight and actual weight.
Intelligent Automatic Molten Iron Transfer system
Mian Specification

Ladle Volume	0.5t,1t,1.5t,2t,2.5t,3t,3.5t,4t,4.5t,5t
Transfer Speed	Transfer veicle speed: 0-60m/min, Conveyor roller speed:0-20m/min
Applied Range	Wide used in foundry production line: Horizontal flaskless moulding line, Static pressure automatic moulding line, Vertical moulding line, etc.
Type of Transfer Ladle	Ductile Iron Ladle, Gray Iron Ladle, Pouring Ladle
Type of casting product	Gary Iron, Ductile Iron, Vermicular Iron, cast steel, etc.
Type of spheroidization	Spheroidization by wire feeding, Penetration spheroidization

Company profile
Suzhou Suzhu Foundry Machinery Manufacture Company Ltd. is based on the company Suzhou Foundry Machinery Works, which was established in 1962 and is the oldest Chinese foundry equipment producer. In 2009, after privatisation the company moved to Suzhou High-Tech Development Zone with new design and production facilities. With excellent experience in the foundry industry for more than 50 years, SUZHU has become the leading company for foundry equipment and foundry technology in China. SUZHU did successfully provide many foundries with complete solutions as turnkey projects.

Certificate

FAQ:
1. Are you a manufacturer or a trading company?
We are engaged in casting machinery manufacturing professional supplier
2. How can I get some samples?
For molten iron transfer system belongs to customized products,we can provide solution and customer case as well as our customer visiting.
3.What's your quality control device in house?
We have passed ISO 9001-2000,we have strictly processing and quality control system as well as complete set of inspection facilties and instruments.
4.Dedicated to provide customers with 7*24 hours technical support, spare parts and other services

---
