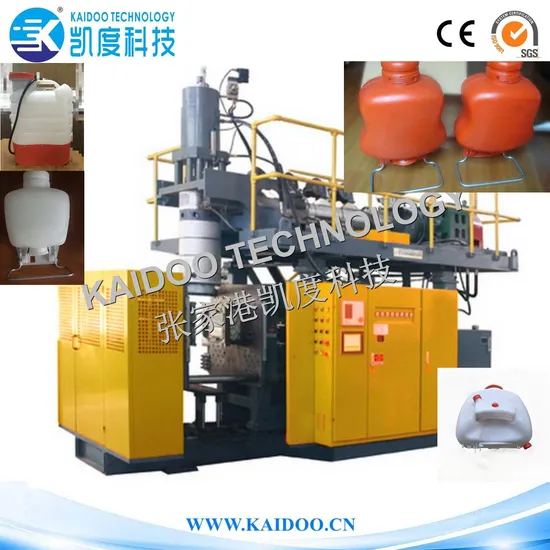

10L Sprayer Tank/Sprayer Barrel/Sprayer Drum/Sprayer/Pesticide Barrel/Pesticide Tank Blow Moulding Machine /Blow Molding Machine

Product Description

BRIEF INTRODUCTION
------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD
Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!
ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.
WORKSHOP
MACHINE SPECIFICATION

MODEL	KDB80-SST10L (Single station & Single head )
	This model is fixed open-closing and accumulator die head series which can make Max 30L containers,suitable for production of chemical packing drums,medium size toys,atuo parts pipes,water container,toolcase,sprayer and so on. Technical characteristics: Hydraulic servo system control, quick action response, energy saving ;

Specification	Technical Parameter
Machine model	KDB80-10L
Material	PE,PP
Max container capacity	30Liter
Machine Dimension (LxWXH)	4.8 x 3.4 x 4 m
Machine weight	12 T
Clamping Unit
Mould platen size (WxH)	750x860mm
Platen opening stroke	300-850mm
Max mould size (WxH)	520x860mm
Clamping force	200KN
Power
Oil pump driving power	15 KW
Max driving total power	45 KW
Blow pressure	0.8Mpa
Air consumption	0.7M3/min
Cooling water pressure	0.3Mpa
Water consumption	70L/min
Average energy consumption	28-32kw
Extruder unit
Screw diameter	80
Screw L/D ratio	24:1
Melting capacity for HDPE	120-140 kg/hour
Number of heating zone	4 zone
Screw heating power	15.6kw
Extruder motor power	30kw
Die head (single head)
Number of heating zone for single die head	5 zone
Heating power for single die head	22.8 KW
Max die-pin diameter	250mm
Accumulator capacity (HDPE)	5L (3.75KG)

---
