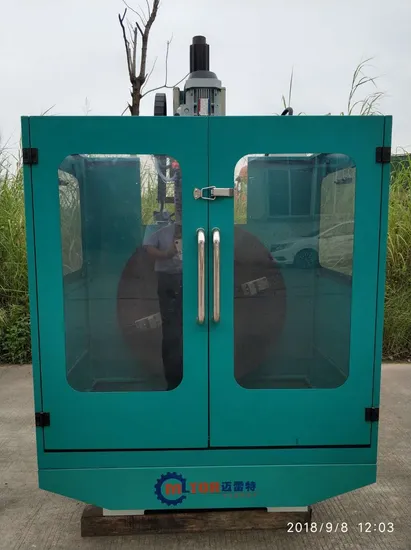

CNC Digital Double Spindle of Feeding Pellet Ring Die Twist Outer Drilling Machine (MLT-WZ850DF)

Product Description

2-spindle of CNC pellet feeding ring die twist outer drilling machine
Technical description
1. Ring die hole drilling and repair machine.
2.Supplement of the gun drill processing,ring die hole decompression.
3.With a torque detaction function,automatic indentification and skip of the blind hole or hole blocking.
4.Single spindle or double spindle can be optional,unique protection,can process wooden pellet ring die and feeding pellet ring die.
5.Specialized drilling system MLT-Z208.Mature hardware and software system,use-friendly,intuitive interface,stable performace,no programming,the relevant parameters of the hole through the CNC system interface can be filled.
6.MLT series of motors,with anti-oil,engage in corrosion and so on.
Parameter description

Forward and backward travel range	400mm
Z-axis travel range	300mm
Maximal ring die outer diameter	850mm
Minimum ring die inner diameter	350mm
Position accuracy	0.02mm
Spindle speed	0~5000RPM
Spindle power	1.5KW
System language	Chinese/English

Machine size&weight
Floor space	1620mmx1200mmx2100mm
Host weight	900kg

---
