Overview Quick DetailsPlace of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-212
Type:converter
Application:Industrial
Brand:GCAN
Voltage:DC+9~30V
Working humidity:5%~95%, no condensation
Working temperature:-40.00℃~+ 85.00℃

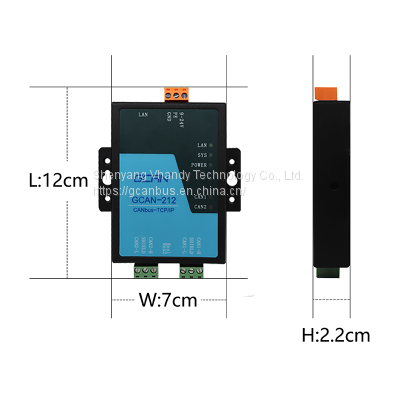

Size:118*93*23mm
Surge immunity level:±1KV
External voltage:DC+9~
Packaging & Delivery
Selling Units:Single item
Single package size: 21X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:
| Quantity(sets) | 1 - 500 | >500 |
| Est. Time(days) | 7 | To be negotiated |
The GCAN-212(CANET II) is a CAN-Bus converter, used for Ethernet converting CAN-Bus. It is an industrial-grade CAN-Bus converter,whose function is to realize interconnection easier and extends the application scope of CAN-Bus.
CAN Features
| Ethernet Features
|
Integrate two CAN-Bus channels, with terminal connection
| Restore the network connection automatically after disconnecting, can establish a TCP connection.
|
|
Support CAN2.0A and CAN2.0B, conform to ISO/DIS11898
|
SOCKET working mode compatibility (TCP Server, TCP Client, UDP, etc), program communication software according to standard SOCKET
rules
|
Support communication baud rate: 5Kbps~1Mbps
|
|
Electric isolation, insulation level: DC 3000V
| Support secondary development, we can provide VB routine or you can look for some another basic programming routine about Ethernet
online
|
|
32 FIFO receiving buffers, maximum flow: transmit 8000 FPS, receive14000 FPS
|
|
FunctionTCP Server ModeGCAN-212 waits for TCP Client to connect. If connection succeeds, can make bidirectional data communication.
TCP Client ModeGCAN-212 starts connection to TCP Server, if connection fails, TCP client will try to reconnect till success. If connection succeeds, can make bidirectional data communication.
UDP ModeUDP mode is a communication mode without connection, makes the data communication through UDP protocol.
Applications
Packing1. Standard package. Carton
2. Customized design
>>
