High Quality Sand Making Machine Manufacturers for Sale at Preferential Prices

Product Description

Product Introduction

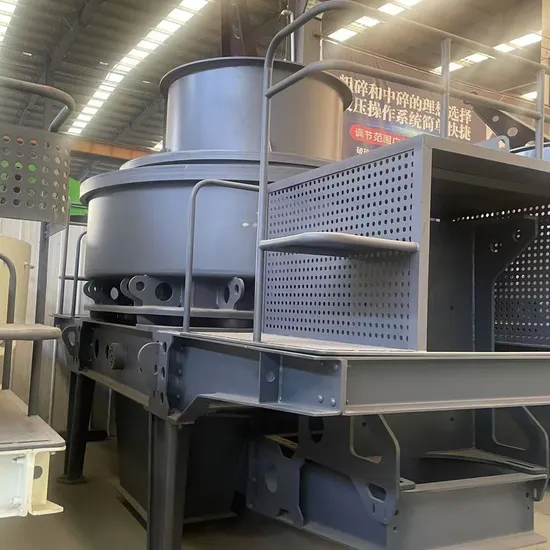

VSI series high-efficiency vertical shaft impact crusher is the latest design result of German authoritative experts combined with China's working conditions. It is currently the only high-performance sand making equipment with world advanced level. This machine is specially designed to provide high-quality stone aggregate for highways, high-speed railways, high-rise buildings, municipal engineering, hydropower dam construction, and concrete mixing stations. It is the preferred equipment in the field of artificial sand making and stone shaping.
Specifications and Performance Parameters

Model	Specification	Feed Inlet Size (mm)	Feeding Size (mm)	Processing Capacity (t/h)	Motor Power (kw)	Overall Dimension LxW×H(mm)
CS5X1315	1300×1500	1540×930	≤600	250-350	250-315	2880×2755×2560
CS5X1415	1400×1500	1540×1320	≤700	350-550	250-315	2995×2790×3090
CS5X1520	1500×2000	2040×520	S900	400-600	400-500	3390×3475×2790
CS5X1620	1600×2000	2040×1630	≤1100	500-900	400-500	3485×3605×3720
CS5X2023	2000×2300	2400×1920	≤1300	1200-2000	1000-1200	4890×4330×4765

Equipment features and technical advantages1. Large processing and high output of 50-500t/h. Compared with traditional equipment with the same power, the output is increased by 30% and is stable.
2. Low consumption of wearing parts-the best impact angle design of the crushing chamber material has less friction with the wear-resistant parts, which is 40% lower than the operating cost of traditional equipment, directly reducing the cost of equipment use.
3. Excellent product particle shape-the product is cubic, with good particle shape, reasonable grading, and adjustable fineness modulus; it is particularly suitable for artificial sand making and stone shaping. Practice has proved that the sand making and shaping effect is 30% higher than other traditional equipment.
4. Hydraulic device, easy dry maintenance-the hydraulic cover opening device makes the maintenance and replacement of the components in the crushing chamber convenient and quick, shortens the downtime, and saves time and effort.
5. Automatic detection, safe and reliable-the equipment has an over-vibration display and alarm device. If the equipment fails to operate properly, a warning can be issued to stop the equipment from working, so as to achieve the purpose of protecting the machine.
6. Thin oil lubrication, automatic maintenance - German original thin oil lubrication station, dual oil pumps complement each other to ensure oil supply; automatic shutdown when there is no oil flow or oil pressure; water cooling, motor heating start in winter.
7. One machine for multiple uses, flexible application - unique feed crushing structure, with a variety of crushing chamber types, can easily realize the conversion of "stone hitting stone" and "stone hitting iron", thus solving the problem of one machine for multiple uses. If you want to change the application of VSI crusher, no major adjustments are needed to adapt to the different needs of users: sand making, shaping, abrasive materials, etc.
Specifications and Performance Parameters

Model

Processing Capacity(t/h)

Best Feed Size (mm)

Rotation Speed(r/min)

Motor Power(kw)

Dimension LxWxH(mm)

Power Source

Vibrating Sensor

Lubricating Hydraulic Station

Feed at Center & Sides

Center Feeding

Soft Material

Hard Material

Oil Pump Motor Power

Safety Assurance

Dimension LxWxH(mm)

Power of Oil Tank

VSI7611

120-180

60-90

35

35

1700-1890

2×55

3700×2150×2100

380V.50HZ

Monitoring Range:0.1-20mm/s Detect Tange: 0.1-20mm/s Continous And Adjustable

0.75KW

Double oil pumps complement each other to ensure oil supply: automatic shutdown without oil flow or oil pressure; water cooling for cooling; motor heating start in winter

820×520 x 1270

2KW

VSI8518

200-260

100-130

40

40

1520-1690

2×90

4140×2280×2425

VSI9526

300-380

150-190

45

45

1360-1510

2×132

4560×2447×2778

VSI1140

450-520

225-260

50

50

1180-1310

2×200

5000×2700×3300

Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Company Profile
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry.Packaging & Shipping
Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.

---
