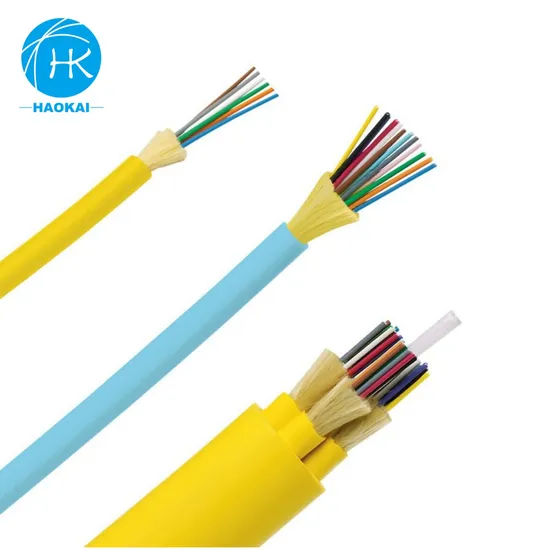

Fiber Breakout Cable Indoor Multi Core Micro Optical Cable

Product Description

Fiber Breakout Cable Indoor Multi Core Micro Optical Cable Product Description GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with the LSZH (Low smoke, Zero halogen, Flame-retardant)The tight buffer fiber is manufactured by sheathing the fiber with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fiber, specific production equipment and accurately designed tools ensure a good performance of the product.
Product application 1. Optical fiber jumper or pigtail
2. Indoor riser level and plenum level cable distribution
3. Interconnect between instruments, communication equipment

Performance characteristics 1.Peripheral strengthening of high modulus aramid yarn.2.Use single core cable as basic unit.3.Small out diameter, terminal direct physical protection is provided.
4.Soft, small bending radius and good stress and strain performance.
5.Flame retardant or non combustible outside protection can be chosen and LSZH sheath can be provided

Product Parameters

Fiber type	Attenuation				Full injection bandwidth	Effective mode bandwidth	10G Ethernet link length	Minimum bend radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
	Normal	Max	Normal	Max
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	-	-	-	-	-	16
G657A1	0.36/0.22	0.5/0.4	-	-	-	-	-	10
G657A2	0.36/0.22	0.5/0.4	-	-	-	-	-	7.5
OM2	-	-	3.0/1.0	3.5/1.5	>500/500	-	-	30
OM1	-	-	3.0/1.0	3.5/1.5	>200/500	-	-	30
OM3	-	-	3.0/1.0	3.5/1.5	>1500/500	>2000	<300	30
OM4	-	-	3.0/1.0	3.5/1.5	>3500/500	>4700	<550	30

Cable type	Cable diameter (mm)	Optical cable reference weight (kg/km)	Fiber buffer fiber diameter (mm)	Tensile Strength Long/short term (N)	Crush resistance Long/short term (N/100mm)	Bending Radius Dynamic/static (mm)
SXC-1.6	1.65±0.05	2.6	0.6±0.05	40/80	100/500	60/30
SXC-2.0	1.95±0.05	3.5	0.9±0.05	60/100	100/500	60/30
SXC-3.0	2.85±0.05	6.5	0.9±0.05	60/100	100/500	60/30
