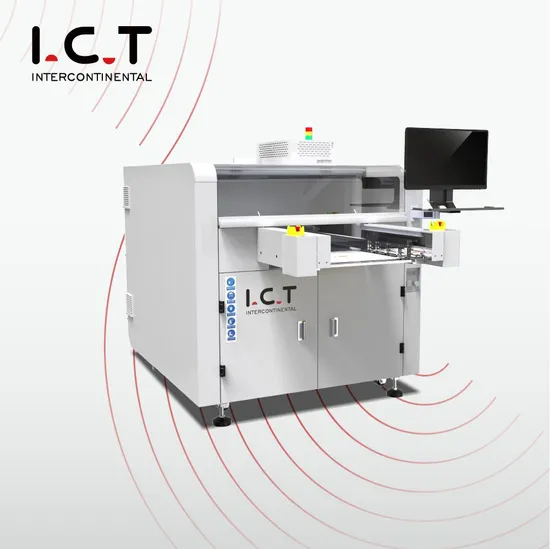

Selective Soldering Machine China Original PCB Automatic Selective Solder Selective Wave Soldering Machine

Product Description

Selective Soldering Machine China Original PCB Automatic Selective Solder Selective Wave Soldering Machine
Product Description
Selective wave soldering is a special form of wave soldering invented to meet the development requirements of through-hole components soldering. It is mainly suitable for the soldering of through-hole components in high-end electronic products. For example: electronic products, automotive electronics, switching power supply products and other industries which require higher soldering reliability.
Features:
1.PCB plate fixed, spray and soldering platform moving.
2.High soldering quality, greatly improve the pass rate of soldering.
3.Modular design of SMEMA online transportation, support customers for flexible line formation.
4.Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality.
5.Auto wave height calibration function, to check & calibrate wave's height after every certain pcb, so to keep a very good stability of wave.
6.Can upgraded to be with Mark positioning function, to check PCB`s mark point after every certain pcb.
Flux Spraying + Preheating + Soldering

Flux system
1.Standard with imported jet valve to get precious fluxing result with small flux dot, please note flux solid content should be less than 10%.
2.Flux is stocked by pressure tank, make sure pressure stable without influenced of amount of flux. The nozzle jam detection function is optional.
3.The XY spray platform is composed of high-precision ball screw and linear slide rail. It is driven by a high-speed servo motor.
4.The nozzle is mounted on the XY platform,The accuracy of repetition and positioning can reach 0.05mm.


Preheat system
Bottom preheating is standard equipped in machine, Position is adjustable.IR heater of Top,Efficient and stable IR heat conduction.Design structure for maximizing preheating area.All round high temperature cotton design to ensure temperature stability.Heat-generating and heat-conducting parts and motors adopt top brands.Maintenance plug-in design. tool-free maintenance mode.


Soldering system
1.XYZ platform is composed of high precision ball screw and high-speed motor.
2.Electromagnetic pump coil adopts German imported brand to ensure the stability and reliability of the peak.
3.Solder temperature, N2 temperature, wave height, wave calibration etc all able to set in software.
4.Solder pot is made of Ti, not leakage. With cast iron heater outside, robust & quick heat up.
5.N2 online heating system, to wet the soldering perfectly and reduce the solder dross.
6.Standard with the nozzle automatic cleaning function. How many panels can be set to clean the nozzle.


Transmission system
The transmission module is composed of three parts by roller.
The spray and soldering transmission tracks are equipped with a stop plate positioning device to ensure the accuracy.
The distance of weldable elements on PCB plate edge is much higher than that of chain conveyor structure.
Specifications:

Model	I.C.T SS430
Max Fixture Size	500*500mm
Max PCB Size	500*500mm
Flux Storage Tank	1.5L
Flux Support	Flux Alarm, Automatic
Spray Nozzle	Germany Jet Valve (Spot and line spraying) 1set
Spray Nozzle Size	130um (180, 210um Option
Preheating Mode	IR Heating
Preheating Area	L500mm*W500mm
Preheating Zone	Bottom: 1
Preheating Temp.	(Room Temperature) -250ºC
Control Mode	PC+PLC
Nozzle Inner Diameter	Φ 2-30mm (Customization Special dimensions)
Wave Height	3~5mm
Soldering Precision	±0.25 mm
Solder Pot Drive	XYZ independent drive
Wave Control	Electromagnetic pump (Sweden) Mechanical pump is option
Solder Pot Quantity	1 set
Dimension	L1400*W2580*H1722mm
Weight	Approx 700kg

Certifications:

Packing & Delivery Standard Wooden Case with Vacuum Package Shipping Way: · By air, for sample and small package, international express like DHL, UPS, EMS... · By sea, for large package and quantity; · Other ways as customer requested. Delivery Time: · Within 35 Days. Our Company I.C.T is a leading provider of factory planning solution. we have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of electronic industry experience, through our superior resources in China to provide global customers with systematic overall solutions.
We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customers to set up factories in LED, TV, mobile phone, DVB, EMS and other industries all over the world. We are trustworthy. Exhibition FAQ Q: What we can do for you? A: One-stop SMT Solution Supplier; Reliable SMT Partner Q: Are you a trade company or manufacturer? A: Full SMT machines maufacturer for smt line in China; OEM & ODM service are available. Q: What is your delivery date? A: About 35 days after receipt of payment. Q: What is your payment terms? A: 30% deposit in advance and 70% balance before shipment. Q: What your main customers? A: Foxconn, Vtech, Sumida, Kemet, Vishay, Canon, Jabil etc. Q: Why choose you? A: Leading SMT Supplier in China; Professional Supplier; Trade assurance to USD 560,000+; Professional after-sales service team. Q: Why choose us? A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
