Lift Table Universal Horizontal Milling Machine X6132 X6140 XL6136 X62g X62GS

Product Description

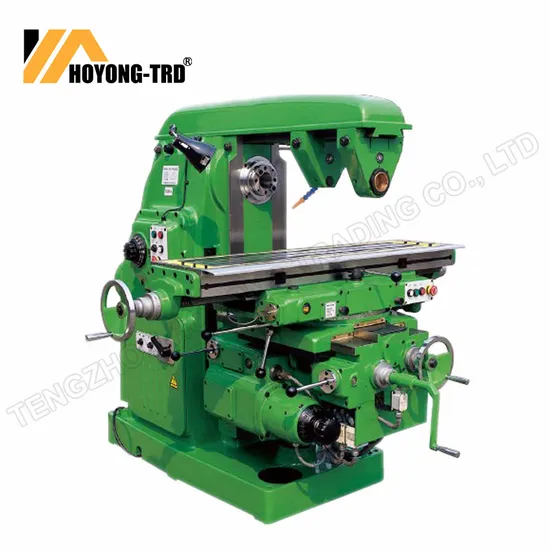

Lift Table Universal Horizontal Milling Machine (X6132)
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling. It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse. Equipped with various accessories, it can be applicable to versatile processing.
In addition to all the principal features of horizontal milling machines working table can be swiveled up to 45 degree. Equipped with dividing head, it can be used for various spirals and especial surfaces such as spur and helical cylindrical gears and flutes of twist drills. According to customers require, every kind of milling machine can be equipped with digital display.
STANDARD ACCESSORIES:
1. Horizontal arbor assembly
2. Double head wrench
3. Inner hexagon spanner
4. Rod mill
5. Oil gun
6. Knee crank
SPECIFICAITONS:

SPECIFICATION	UNITS	X6132
Table size	mm	320x1325
Longitudinal travel(manual/auto)	mm	700/680
Cross travel(manual/auto)	mm	255/240
Vertical travel(manual/auto)	mm	320/300
Work table swivel angel		± 45
Cutting feed speed	mm/min	X: 19--950, Y: 19--950,Z: 6.3--317
Rapid feed speed	mm/min	X-2300,Y-2300,Z-770
Spindle speed range	r/mm	30-1500
Spindle speed step	-	18 (steps)
Distance between spindle axis table surface	mm	30~350
Power of spindle motor	kw	7.5
Feed motor power	kw	2.2
Overall dimension(LxWxH)	mm	2300x1770x1600
N. W/G. W	kg	2650/2950

---
