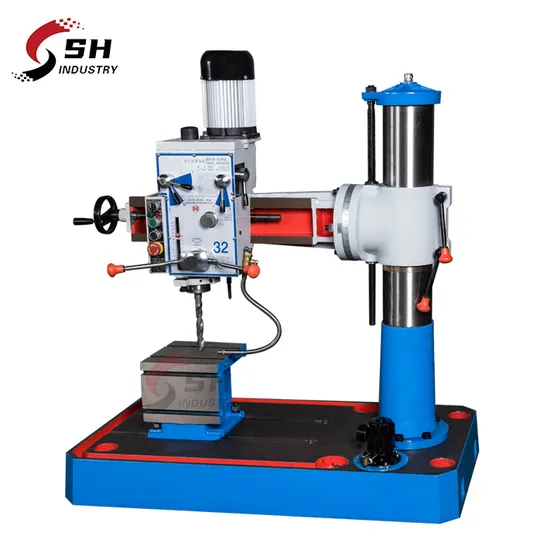

Hot Sale Small Radial Drilling Machine Z3032X7p Universal Radial Arm Drilling Machine Price

Product Description

Hot Sale Small Radial Drilling Machine Z3032X7P Universal Radial Arm Drilling Machine Price
Product Description
Features:
With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etc
Main technical specifications:

Model	Z3032×7	Z3032×7P
Max. Drilling capacity(mm)	32	32
Max. Tapping capacity(mm)	Cast lron 20 Steel16	Cost lron20 Steel16
Distance spindle axis to column generating line	300~700	300~700
Diameter of column(mm)	150	150
Spindle taper	MT3	MT3
Spindle travel	130	130
Spindle speeds range(mm)	100~1600	100~1600
Spindle speeds series	8	8
Spindle feeds(r/min)	0.08\0.14\0.23	0.08\0.14\0.23
Rotary angle of rocker in hirizontal plane( °)	360	360
Distance between spindle nose to working surface of base(mm)	275~680	275~680
Dimension of worktable(mm)	250×250×250	250×250×250
Diameter of base(mm)	1050×550×120	1200×625×155
Overall size(mm)	1235×550×1195	1235×625×1230
Motor(w)	750 or 1100	750 or 1100
G.W./N.W.(Kg)	390/310	580/500
Packing dimension(cm)	122×62×128	127×69×137

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
