SINOTRUK HOWO REFUSE TRUCK,LOADING CAPACITY FROM 10-20 TON, GARBAGE BODY VOLUME 8-25 CUBIC METER;

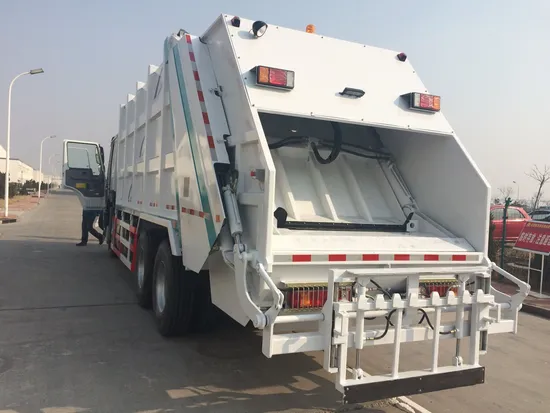

1. TRUCK PIC
2. HOWO GARBAGE TRUCK WITH 12 AND 18 M3 COMPACTOR BOX MODEL
| HOWO Refuse Compactor Truck 12 CBM COMPACTOR |
|
| Model Number | QDZ5160ZYSHH |
| Chassis Number | ZZ1167M4611W |
| Driving type | 4*2 |
| Rated Loading Weight(kg) | 12000 |
| Kerb Weight(kg) | 11000 |
| Total Mass(kg) | 23000 |
| Overall dimesion(L*W*H)mm | 7780*2500*3350 |
| Min. Turning Circle (m) | 18.6 |
| Max. Speed (Km/h) | 75 |
| Fuel Consumption(L/100km) | 26 |
| Engine | SINOTRUK Brand,WD615.87,EURO-2 |
| Horse Power(hp/r/min) | 290/2200 |
| Volume of the Body(m3) | 12 |
| Volume of the Filler(m3) | 2 |
| Time of one Loading Cycle(s) | <25 |
| Time of one Unloading Cycle(s) | <40 |
| Max Brake Crase Pressure(kgf) | >25000 |
| Transmission | HW15710,MANUAL, 10 forward and 2 reverse |
| Clutch | Dia.420mm, Hydraulically operating with air assitance |
| Front Axle | HF7 |
| Rear Axle | ST16 |
| Steering | ZF8098 |
| Brake | Dual circuit compressed air service bake, spring energy parking brake, engine exhaust auxiliary brake, ABS for option |
| Tyre | 12.00R20 Radial tyre |
| Lead time is within 60 days after receiving the 30% prepayment |
| HOWO Refuse Compactor Truck 18 CBM COMPACTOR |
|
| Model Number | QDZ5251ZYSA |
| Chassis Number | ZZ1257N4341W |
| Driving type | 6*4 |
| Rated Loading Weight(kg) | 10000 |
| Kerb Weight(kg) | 15000 |
| Total Mass(kg) | 25000 |
| Overall dimesion(L*W*H)mm | 9980*2500*3650 |
| Min. Turning Circle (m) | 21.6 |
| Max. Speed (Km/h) | 90 |
| Fuel Consumption(L/100km) | 29 |
| Engine | SINOTRUK Brand,WD615.47,EURO-2 |
| Horse Power(hp/r/min) | 371/2200 |
| Volume of the Body(m3) | 18.5 |
| Volume of the Filler(m3) | 2.5 |
| Time of one Loading Cycle(s) | <25 |
| Time of one Unloading Cycle(s) | <40 |
| Max Brake Crase Pressure(kgf) | >35000 |
| Transmission | HW19710, 10 forward and 2 reverse |
| Clutch | Dia.430mm, Hydraulically operating with air assitance |
| Front Axle | HF7 |
| Rear Axle | ST16 |
| Steering | ZF8098 |
| Brake | Dual circuit compressed air service bake, spring energy parking brake, engine exhaust auxiliary brake, ABS for option |
| Tyre | 12.00R20 Radial tyre |
