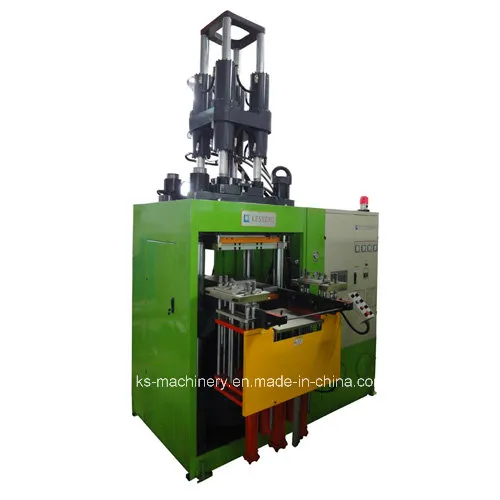

Rubber Injection Molding Machine for Rubber Products (KS200U3)

Product Description

First in first out vertical rubber injection molding machine, latest design, full automatic, hign speed, hign precision, front open mould style hydraulic molding machine.
Machine main feature:
1. Moving vertical injection four-cylinder balanced structure, ultra-stable injection force
2. Optimized feeding plunger greatly reducing the amount of plastic drain, quick and easy to maintenance and change material.
3. Innovation shoot tube thermostat system plus ultra-short nozzle, to make oddments more less and avoid minimum pressure loss, to meet the requirements of the injection molding process various hardness of rubber.
4. Machine specification under 500 Ton adopt internationally popular First In First Out injection style.
5. Lifting and hanging mode can be mechanical synchronous to the gears, template layers action smooth, repeat high accuracy.
6. Fully enclosed safety bumpers and light shed, a higher level equipment of operational safety
7. Hot plate heating partitioning control, temperature more uniform
8. Direct drive variable displacement pump, high efficiency, stable
9. Larger working platform design
10. More automation functionality for optional

Applicable products:
Applied to all kinds of black rubber products, auto parts
Parameter:

Model	KSU-200T	KSU-300T	KSU-400T
Injection volume(cc)	2000	2000/3000/4000	3000/4000/5000
Injection speed(cc/min)	5000	5000	5000
Injection Pressre(Mpa)	188	188	164
Clamping force(KN)	2000	3000	3000
Heating plate size(mm)	600*600	700*700	700*800
Mould open stroke(mm)	500	550	600
Max. heatin plate space(mm)	550	600	700
Min. mould tickness(mm)	60	60	110
Electrical power(KW)	15	18	27
Horse power(HP)	15	20	30
Gross weigt(KG)	7000	9000	11000
Machine size(L*W*H mm)	2400*2400*3500	2700*2600*4000	3400*2800*4500

Dongguan City Kesheng machinery Co., Ltd
Rubber machine, silicone material molding machine, injection machine, rubber machinery manufacturers / suppliers in China, providing high-precision rubber injection molding machine, rubber & silicone pressing machine, full automatic high speed molding press and so on.
Machine core parts:
Adopt foreign imported, such as Japan Mitsubishi PLC control system, Germany's Siemens control system, Taiwan PanelMaster HMI, Japan YUKEN oil pump, Taiwan heating pipes, Taiwan Victoria solenoid valves, Denmark TRAFAG pressure sensors, Japan NOK oil seal, Taiwan Tatung motors, Omron thermostat, Germany Busch vacuum pump, Fujitsu and other international brands accessories, stable quality, superior performance, low failure rate.
Main parts instruction for Rubber Injection machine

NO.	Item	Branch/Material	Remarks
1	Motor	Taiwan Tatung	Large torque type, quiet and silent
2	Oil Pump	Japan YUKEN	Collective style circuit design
3	PLC	Germany's Siemens	Independent written, easy to operate
4	LCD touch screen	Germany's Siemens	Clear and intuitive, convenient, easy to operate
5	Heating pipes	Taiwan branch	Nickel-chromium alloy wire, never rust
6	Oil seal	Japan NOK	Wear-resistant, durable, no leakage
7	Solenoid valve	Northman	Controlled fast, long life
8	Other electrical configuration	Germany's Siemens	Performance and stability
9	Thermocouple Module	Germany's Siemens	Using PID correction, temperature uniform distribution, the error value at ± 3 ºC
10	Pressure sensor	Denmark TRAFAG	Conduction pressure accurate, unbiased, and easy to use
11	Heating control system	Taiwan Solid State Relays	temperature uniform distribution, the error value at ± 3 ºC
12	Machine body casting	FCD50 Ductile Iron	Aging passivation, high tensile strength
13	Column	Carbon Steel	Hardness up to HRC55--58
14	Screw barrel	Zhejiang Huaye
15	Proportional flow pressure valve	Japan YUKEN	Specific pressure ratio flow control system, precise control of flow and pressure
16	Digital modules Analog Modules	Germany's Siemens	Can accurately input and output

Dongguan City Kesheng machinery Co., Ltd is located in Dongguan city, Guangdong, China, covers an area of 28000 square meters. Our company was established since 2003 and founded by a group of professional engineers who are well experience in rubber & silicone machinery manufacturing. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
Any inquiry please feel free to contact with us, thank you for your attantion.

---
