Chinese Big Spindle Bore Heavy Type Metal Working Lathe Machine

US$100,000.00-150,000.00 1 set (MOQ)

Basic Info.

Model NO.

BL-CKW61200

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Semiautomatic

Setting Mode

Floor-type

Precision

Certification

CE, ISO 9001

Condition

New

Guideway Width

1100mm

Max. Swing Dia. Over Bed

1250/1440/1640/1840/2020mm

Center Distance

3000-10000mm

Spindle Bore

100mm

Spindle Speed

10-300rpm

Chuck Size

Manual 4-Jaw 1250mm

Spindle Motor

37kw

Sspindle Bore Type

Metric 120

Transport Package

Veneer Case/Wooden Pallet

Specification

1100mm guideway

Trademark

BLIN

Origin

China

HS Code

8458110090

Production Capacity

480units/Year

Packaging & Delivery

Package Size

250.00cm * 320.00cm * 250.00cm

Package Gross Weight

250.000kg

Product Description

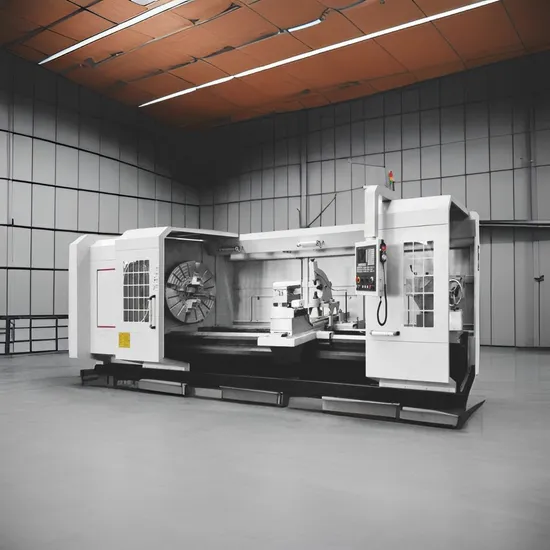

Chinese big spindle bore heavy type metal working lathe machine
- Guideway width 1100mm,spindle bore Φ100mm,heavy-duty type,suitable for heavy cutting
- Mono-block bed,high rigidity
- Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping
- Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan
- Guideway stick PTFE,remove creeping,good wearability
- Adopt manual 4 class gear spindle, stepless speed in every class

Item	Specification	Unit	CKW61125	CKW61140		CKW61160	CKW61180	CKW61200
Capacity	Guideway width	mm	1100
	Max. swing dia. over bed	mm	Φ1250	Φ1440		Φ1640	Φ1840	Φ2020
	Max. swing dia. over slide	mm	Φ710	Φ820		Φ1020	Φ1220	Φ1420
	Center distance	mm	3000~10000
	Max. loading capacity	t	10/20/30
Spindle	Spindle bore	mm	Φ100
	Spindle bore taper	/	Metric 120
	Spindle speed	rpm	Manual 4 class gears,speed stepless in every class
			10~300		10~300	10~300	10~200	10~200
	Spindle nose type	/	A2-15
	Chuck size	mm	Manual 4-jaw Φ1250mm				Manual 4-jaw Φ1400mm
	Spindle motor	kw	37
Feeding axes	X axes travel	mm	700	750		830	930		1020
	Z axes travel	mm	2850~9850
	X/Z axes rapid rate	m/min	4/6
Tool post	Tool post type	mm	4 station electric tool post
	Toolshank size	mm	50×50
Tailstock	Tailstock quill travel	mm	300
	Tailstock quill dia.	mm	Φ220
	Tailstock quill taper	/	Metric 80
Overall size	L	mm	6700~13700
	W×H	mm	2550×2350	2600×2400		2700×2560	2800×2760		2900×2900
Weight	N.W.	T	22.6~28.9	23.6~29.9		24.6~30.9	25.6~31.9		26.6~32.9

Standard configuration:
- GSK controller
- Manual chuck
- 4 station tool post
- Manual tailstock

Optional configuration:
- FANUC 0I TF controller
- 6/8 station tool turret
- Hydraulic tailstock
