Product Description
Product Description

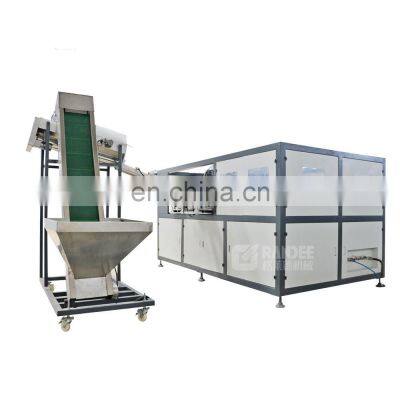

Fully automatic small pet / plastic bottle blow molding machine / blowing equipment Product DescriptionSpecifications:GD-A2 automatic sblowing machineCE approvalSpeed: 2500pcs/h for 500ml pet bottleVolume:100ml-2500mL Brief introduction of water bottle blow molding machine:1.GD-A2 is the fastest liner blow molding machine in mainland of China by now. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.2.GD-A2 automatic stretch blow molding machine is equipped with patented preform loading system, which consists of two manipulators: rectilineal manipulator and overturning manipulator. The rectilineal manipulator moves preform with neck up to the preform holder, after heating, the overturning manipulator grips heated preform and overturn 180 put preform to blow station with neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The specially designed preform loading & bottle discharging system avoid possible damage to preform & bottle during transportation.3.GD-A2 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution.4.GD-A2 consists of three main parts: preform loading system, Heater channel & blow station. Main technical parameter:ModelItemGD-A2GD-A4GD-A6ProductivityDepend on bottle design1800-2700pcs/h3200-4000pcs/h4000-5500pcs/hBottle specificationVolume0.1-2.0L0.1-2.0L0.1-2.0LBody diameter≤100mm≤100mm≤100mmHeight≤300mm≤300mm≤300mmNeck diameter28mm-38mm28mm-38mm28mm-38mmMoldCavity246Mold thickness240mm240mm240mmMold volume260*240*370mm510*240*360mm640*240*360mmMain machine powerRated power25kw49kw73kwUsage power6.5kw13kw25kwAir systemHP air compressor1.4m3/min 3.0MPa2.0m3/min 3.0MPa6.0m3/min 3.0MPaLP air compressor1.0m3/min 1.0MPa1.6m3/min 1.0MPa2.0m3/min 1.0MPaAir tank0.6m3 3.0MPa0.6m3 3.0MPa1.0m3 3.0MPaAir dryer1.0m3/min 3.0MPa2.0m3/min 3.0MPa6.0m3/min 3.0MPaCooling water systemWater chiller3HP3HP3HPMain blowing machineSize(L*W*H)1900*1280*1930mm1900*1860*1930mm4100*2400*1930mmWeight2000kg3600kg4200kgPreform unscramblerSize(L*W*H)2000*950*2480mm2000*950*2480mm2000*950*2480mmWeight250kg250kg250kg Automatic blow molding machine Servo systemServo system optionClamping Servo with SEIMENS brand Transfer Preforms Servo Stretching Servo Feeding Performs Servo ConfigurationAutomatic blowing machine configurationItem Name of main spare partsBrand name1Touch Screen 2Computer PLC controller3Servo motor4Frequency Converters5Magnetic Valve6One-way valve7Muffler8Voltage regulator9Monolithic breaker 10Single Separator 11 Double Separator 12Air Cylinder 13Magnetic Switch Related productsCompany information Workshop detail Our team Project cases FAQ Q1: How to find suitable plastic bottle blow moulding machine or complete water production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn Q2: What's the capacity of plastic bottle moulding machine?A2: We have full automatic and semi automatic unit with 800BPH to 13000BPH for 500ml plastic bottle Q3: How to choose the capacity of blowing machine for water production line?A3: If you want 2000-3000BPH for 500ml water production line, you can choose semiautomatic blowing machine with 1500BPH, the cost is about 8000-10000USD, if 4000-5000BPH for 500ml, you can choose full automatic 4 or 6 cavity normal speed or high speed servo driven blowing machine, the cost is about 40000-60000USD, if you want more details, you can send me inquiry, we can give you more professional technical solutions. Q4: Are you a trading company or a manufactory?A4: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q4: Do you have technical support after we purchased your machines?A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q5: If you buy our machines, can you offer us wear-out spare parts?A5: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
