American UL certified charging pile cable

Product Details

Product Description

Product Description

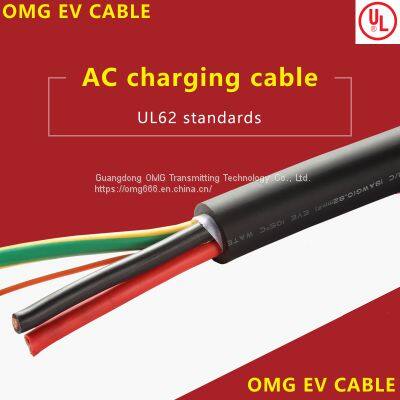

The electric vehicle charging cable is used for the charging connection between the electric vehicle and the power supply. It is one of the key equipment of the electric vehicle conduction charging system. The performance of this type of product has a direct impact on whether the electric vehicle runs safely and reliably.
UL certification is the most authoritative certification body in the United States and a world-renowned certification body for product safety performance testing and certification. The general certification standard for North American charging pile cables is UL62 CSA C22.2 No.49.
The electric vehicle charging cable produced by OMG has obtained UL certification, is soft to the touch, and has good high temperature resistance, pressure resistance and crack resistance.
product details:
Reference Standard: UL62
UL File No.:E345899
Conductor Material: Bare Copper
Insulation Material: TPE or PVC
Filler Material: PP Cord
ape Material:Non-woven fabrics
Sheath Material: TPE or PVC
Product Features
Rated temperature: -40℃～105℃
Rated Voltage: 300V; 600V
Flame Test: VW-1 Test method Comply with UL 2556
Min Bending Radius: ≥5*OD
Cold Bending: -40℃/4h No cracks Test method Comply with UL 2556
Oil Resistance: IRM902, 60℃/168h Tensile and Elongation ≥70% Unaged value
Environmental Requirements: Compliant with RoHS 2.0 and REACH
The color of the product can be customized according to your needs. If you need an electric vehicle charging cable or you are interested in cable related knowledge, please contact me.
To learn more about EV cables and charging pile cables, please visit OMG's official website: /

---
