Float-Type Regulators with Pin-Index Cylinders

Product Description

*Referenced main specs on Float-type Oxygen Regulators:

Type

Medium

Metering range (L/min)

Accuracy

Inlet Pressure (Mpa)

Outlet Pressure (Mpa)

Inlet connection screw thread

Outlet connection screw thread

YR-86-1

O2

1-10 1-15

Grade4

15Mpa

0.2-0.3Mpa

G5/8-14-RH CGA540-RH G3/4-1-RH

8mm

YR-86-2

YR-86-2C

YR-86-4

YR-86-5A

YR-86-6A

YR-86-11A

YR-86-11B

YR-86-11C

YR-86-12

YR-86-13

YR-86-14

YR-86-17A

YR-86-17B

YR-86-22

Ref. CGA870 pin index O2 Regulator 6" golden color(0-15 LPM),Brass Integral 50 PSI Oxygen Regulator, Click-style Oxygen Gas Regulator for Gas Delivery System:
*Referenced main specs on Click-style Oxygen Regulators:
-1)Body Style: CGA540/CGA870;
-2)Material: Lightweight aluminum alloy body;
-3)Outlet: BARB/DISS outlet;
-4)Flow rate: 0-15lpm or you prefer;
-5)Color: Green or you prefer;
-6)(DISS)Output pressure: 50PSI;
-7)Diameter: 1 3/8 Nominal;
-8)Length: 4 3/5 approximately;
-9)Gauge: Ø 1.4 0-3000 PSI, Clean for O2 Service, UL Listing, Boot, 1/8 NPT, Fill/Refill';
-10)Packaging: 20PCS/CTN.

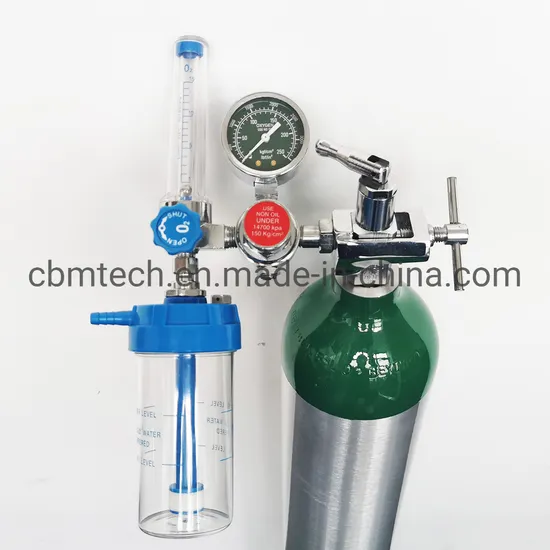

*Main Features: Click-style Bullnose-style,handwheel type. A piece of medical oxygen regulator is mostly used to supply oxygen for patients by connecting with oxygen cylinder(s).
*Notes:
A). A piece of medical oxygen regulator is mostly used to supply oxygen for patients by connecting with oxygen cylinder(s). The flow rates can be: 0-4lpm, 0-6lpm, 0-8lpm, 0-15lpm, 0-25lpm(optional);
B). Each can be anodized to green, red, silver, black, gold, brown, blue, purple, pls tell us your prefer color when you make an RFQ.
C). Our branch factory can manufacture various styles of medical oxygen regulators. We can offer medical oxygen system products based on our potential partners' requirements.
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.*Advantages We Have:-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;-6)Small order can be acceptable: M. O. Q. =10PCS;-7)Exporting experience: We have over 5 years' experience for exporting. *NOTES: -a).Various types of gas flowmeter regulators,gas cylinders,cylinder valves,MEDICAL OXYGEN & SUCTION THERAPY items can be offered with our best factory offers;
-b).We have many advantages of satisfying our potential customers' MIXED needs of medical oxygen therapy & suction therapy items, say medical oxygen gas regulators,oxygen flowmeters,gas outlets,bed head panels, gas probes,medical hospital central oxygen system products.
Anyway,should you have any intersts or some more info needed on our medical & industrial gas cylinders & allied gas items, you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com

---
