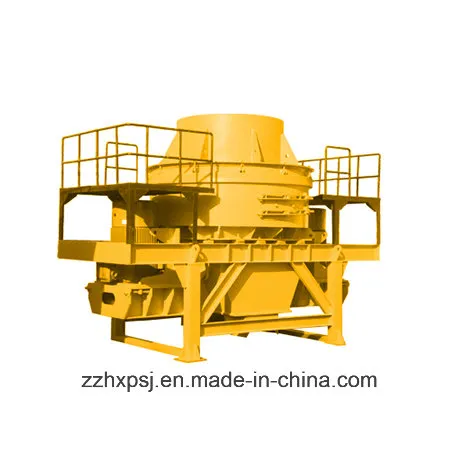

High Efficiency Vertical Shaft Impact Crusher for Sand Making Plant

Product Description

High Efficiency Vertical Shaft Impact Crusher For Sand Making Plant:
Vertical shaft impact crusher application
Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, bauxite chmotte, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.
Vertical shaft impact crusher working principle::
Stone less than 60mm enters sand making machine though conveyor belt. Stone is crushed by hitting other stones. Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported to sand washing machine, however overlarge material will go back to sand maker to be recrushed. Output sizes can be made according to customers requirement. If input size is larger than the designed size, other crushing equipment will be necessary.
Vertical Shaft Impact Crusher Technical Parameters:

Model	Rotate speed of impeller (r/min)	Max feed size (mm)	Power (kw)	Weight (including motor) (t)	Capacity (t/h)	Overall dimensions (mm)
600	2000-2600	30	2×30	5.6	10-30	2800×1550×2030
750	1600-2100	35	2×45	7.5	30-50	3300×1800×2440
900	1300-1700	40	2×55	12	50-80	3750×2120×2660
1050	1100-1450	45	2×110	16	70-120	4480×2450×2906
1250	950-1200	45	2×132	22	80-150	4563×2650×3176
1350	900-1200	50	2×160	26	120-200	5340×2940×3650

Contact:
Ms Sara Pang

---
