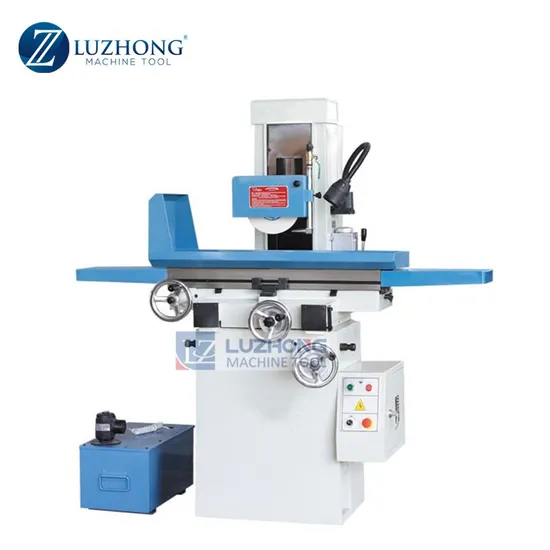

M618A Precision Manual Plane Surface Grinding Machine

Product Description

M618A Precision Manual Plane Surface Grinding Machine
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:

Specifications						Units	M618A
workbench	Worktable size (L * W)					mm	460×180
	Max. travel of table (L * W)					mm	500×190
	Table T slot (slot number x slot width)					mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)					mm	φ180×13×Φ31.75
	Distance spindle center line to working table					mm	335
	Grinding wheel speed				50HZ	r/min	2850
					60HZ	r/min	3440
The amount of feed	The vertical (up and down) feed handwheel feed				Handwheel per turn	mm	1.25
					Handwheel per lattice	mm	0.01
	Transverse (front and rear) feed handwheel feed				Handwheel per turn	mm	2.5
					Handwheel per lattice	mm	0.02
Motor power				Spindle motor		kw	1.1
				Cooling motor		W	40
working accuracy		The process surface of the base level of the parallel degree				mm	300:0.005
		Surface roughness				μm	Ra0.32
Machine weight			Net weight			kg	650
			Gross weight			kg	750
External size (L * w * h)						mm	1550x1150x1590
Packing size (L * w * h)						mm	1000x1150x1760

Detailed Photos
