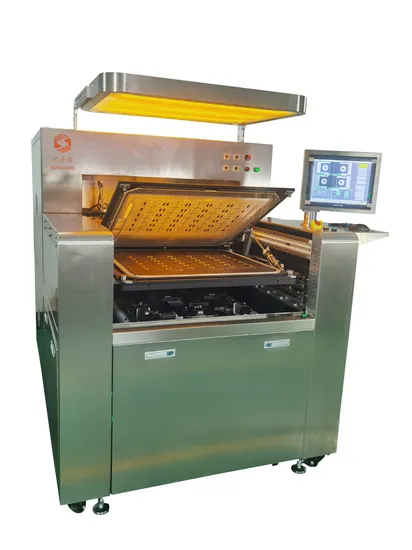

| product model | UVLED-A610 | |
| Production specifications | PCB size | 305*350~550*650(mm) |
| Flim size | 610*710(mm) | |
| PCB thickness | 0.1~3.3(mm) | |
| intensity of light source | >15mw/cm2 | |
Working table | Exposure worktops | Double frame alternating operation |
| Exposure way | Double-sided exposure | |
| mesa structure | Merra + glass | |
| Mesa material | Japanese omron PLC + touth screen control | |
Light source system | Light source type | 365nm high-power UV LED |
| Light source output power | >1.5KW/ lamp | |
| Light source structure | Copper base PCB board Array light group | |
| uniformity | >=85% | |
| Parallel half Angle | <2º | |
| cooling-down method | hydrocooling | |
Counterpoint system | CCD quantity | 4pcs |
| CCD Mobile way | Automatic movement | |
| Contrast image examination | PCB board and The upper and lower negatives are absorbed Post-counterpoint check | |
| plate fixed form | Double-groove vacuum adsorption | |
| Installation mode of negatives | Automatic installation / manual installation | |
| Exposure way | Outer counter-position exposure / inner counter-position sandwich exposure | |
| Mechanical repetition accuracy | ±12.5μm | |
| Image read accuracy | ±5μm | |
productive power | capacity(do not contain cleaning time) | 2~4pieces/min |
| Contrast mechanical accuracy | ±15μm | |
| Light resistance type | Dry film / wet film selectable | |
| Display the line resolution ability after the picture | 3mil/3mil | |
| control system | operation interface | Large touch-screen operation interface |
| Control hardware | Industrial PC + motion control card,High reliability and stability | |
| produce requirement | The way of loading and unloading | Artificial take and put |
| Production plate material placement requirements | Hanging pin production,Multiple pINs are optional | |
complete set requirement | current source | 3 Phase AC380V 50Hz 10KW |
| External air source | >=5kg/ cm2 60-180L/min | |
| Environmental temperature and humidity | 22±2ºC,humidity 55%±5% Clean environment | |
| External cooling water | >=4kg/ cm2,40L/min,temperature 7-12ºC | |
| filter system | 5000Clss Efficient filter | |
| Main material | SUS304 National standard plate | |
other | Machine size | L2400*W1550*H1950mm |
| Machine weight | 1500KG | |
