10*15*2.5mm special angular contact ball bearings

Product Details

Product Description

Product Description
10х15х2,5mm Non Standard Bearings Thin Section Angular Contact Ball Bearings For Missile
Missile Bearing10х15х2,5 mm

Brand	Monton
Name	Special bearing
Model	10х15х2,5mm
Material	stainless steel	Outside diameter	ISO9001:2001
Precision	ABEC-7
Bore Size	10mm	Outside diameter	15mm
Clearance	Co, C2, C3, C4
Cage Type	peek
Seals Type	open
Features	They can sustain radial loads mainly and can also sustain some axial load in either direction. The bearings have low friction and very little noise or vibration, These characteristics make them to be available for situations of high speed, high precision, low friction and low noise operations.
Application	Radial ball bearings are engineered for use in high-speed, high precision applications for: Agriculture, Automotive, Chemical, General industrial, Utilities.
Package	pallet, wooden case,industrial package or as customers' requirement
Price	FOB, CFR, CIF	Delivery Time	5-10 days

Monton Bearing can supply the customized bearings according to the request.
We have developed one thin section angular contact ball bearings with the dimension 10*15*2.5mm.This bearings are made with special stainless stell material with non-magnatic performance and with P4 accuracy.The width is only 4mm,with 1mm special ball.We have realize batch production for this kinds bearings and now the bearings have been widely used in Russia,iran or USA on the missle.
Character:
Dimension:10х15х2,5 mm
Accuracy:High precision
Material:Special Non-Magantic stainless steel
The technical requirements:
Accuracy class – 4.
Type - angular contact (18 degrees).
Dynamic lift capacity, Сr , not less, N – 700.
Static lift capacity, Сor, not less, N – 400.
Retainer materials – torlon 4301 PAI.
Rings materials – steel AISI 440C.
Radial play, μm – 5…10.
Running torque, not more, μN·m – 70.
Accuracy class for balls – 3.
Waviness for raceway outer and inner rings, not more, µm – 0,1.
The general level of vibration, velocity, is measured by ISO 15242 in complete range of frequencies from 50 Hz to 10 000 Hz - not more 200 µm/s (72 dB) (for dry ball-bearings).
Nominal number of turns, n, rpm - 6000.
Introduction
Monton Bearing can supply the customized bearings according to the request.
We have developed one thin section angular contact ball bearings with the dimension 35*47*4mm.This bearings are made with special stainless stell material with non-magnatic performance and with P4 accuracy.The width is only 4mm,with 1mm special ball.We have realize batch production for this kinds bearings and now the bearings have been widely used in Russia,iran or USA on the missle.
In China Market,we occupy about 80% about the military market on the missile or aerospace
In the same time:
Monton bearings can also supply other kinds special missile bearings from 2mm~100mm including the non-standard deep groove ball bearings,the non-standard angular contact ball bearings and the non-stand cylindrical roller bearings,ect.

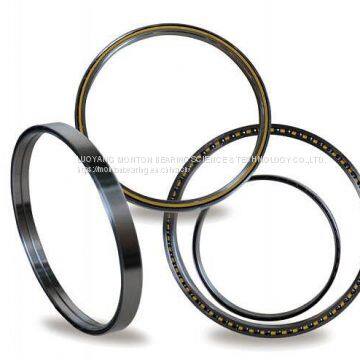

Thin Section Bearing Show
Application
Missile
Aircraft
Aerospace and astronomy instrumentation
Fixing and work holding equipment
Food processing equipment
Glass working equipment
Index and rotary tables
Packing equipment
Machine tools
Medical devices
Optical scanning equipment
Radar
Satellite and communications equipment
Robotics
Textile machinery
Tube and pipe cutting machines
Semiconductor manufacturing equipment
Sorting equipment

---
