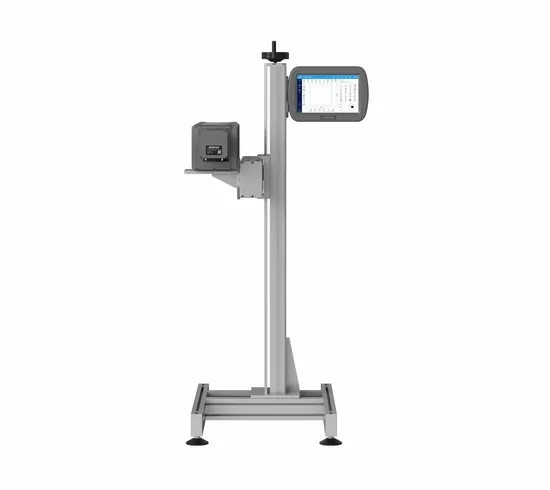

CO2 Laser Marking Machine Flying Production Line with 40W 60W 80W

Product Description

Faith CO2 30W Laser Marking Machine for Printing the date on paper High-precision correction/support system/ support language.Adopt Windows interface.Compatible with CORELDRAW,AUTOCAD and other software outputfiles.Support PLT,AI,DXF,BMP files,direct use of SHX,TTF font library. Faith PL420 CO2 Flying Printing Machine & Laser PrinterMain Features 1)This PL420 carbon dioxide laser marking machine can be equipped with a variety of power laser light source, no matter what industry you belong to, we supply with the most suitable co2 laser marking machine; 2)The marking speed is fast, the efficiency is high, in the same time the workpiece output increases obviously, speeds up the user's investment return; 3) The machine has a long service life, stable laser output power, high reliability, and can work continuously under harsh working conditions. In principle, service life is more than 100,000 hours, which is basically maintenation-free and more than 15 times of the semiconductor 4)Compact size, low energy consumption, convenient handling, saving production space CO2 flying laser marking machine is suitable for the vast majority of non-metallic materials, such as paper packaging, leather fabrics, plexiglass, plastic resin materials,bamboo products, metal plating, PCB board ect. It's widely used in marking the production and expiry date,batch number, shifts, manufacturer s name and logo, etc. in the area of medicine, personal care products,tobacco, food and beverage packaging, alcohol, dairy products, garment accessories, leather,electronic components,chemical building materials and so on.

Laser Power		20w		30W	60W
Operating language		English, French, Spanish, German, Chinese, Russian, Arabic, etc. and corresponding input methods
Software introduction	Management rights : multi-user rights management Optoelectronic type : support 15N for NPN or PNP signal input Operating system : Embedded Linux system kernel, anti-virus Coding mode : static coding, analog speed coding, encoder speed coding		Reserved signal : print start, print status, print completion, fault alarm Coded fonts : support SHX and TTF fonts and CSF fonts independently developed by our company Variable type code : serial code, time code, TXT file import, scan gun read code Multi-port coding : support 4 external trigger signals, each signal can spray different files separately QR code types : QR codes, DA codes, and dozens of types of barcodes or QR codes
Code area and focal length (mm)		Lenses 110 x 110/fd160, 150 x 150/fd210, 175 x 175/fd254, 200 x 200/fd290, 220 x 220/fd330 Laser Galvanometer standard positioning red light focusing function
Operation		WYSIWYG 8 inch color touch screen, QWERTY or AZERTY virtual keyboard, navigation through icons and online help files 500 information storage capacity Quick plug laser head and power control box and accessories (photo eye, synchronizer, data line, etc.)
Coding parameters		Marking line width:0.09mm Minimum character:0.15mm Marking speed:≤1 2000mm/s Marking depth:0.01-2mm Repeatability:±0.002m Making material:All metals and most non-metals Marking content: text graphics, automatic date, shift, serial number..		Beam quality:<2(M2) Cooling system: Built-in air cooling Laser type: pulsed or continuous Scanning mode: high precision optical scanning galvanometer Number of lines: limited only by character height and printable area Laser safety level: 1P54 safety index: level IV Mark spraying range: Standard 110mm, optional 150/175/200/300/400/600
Service environment and power supply		Service environment:temperature: -20 °C-45 °C, relative humidity 80%; Power supply: power supply: 220V 50Hz AC, power consumption of the whole machine: 500W
Dimension and weight		Flight support size: 524 x550x1455mm; Overall dimension of case: 450 x200x310 mm; Optical head: 510 x100x130mm

DETAIL DISPALY CO2 laser, high quality laser,high photoelectric conversionrate, low power consumption,maintenance-free. Stable performance and smoothoperation, suitable for 24 hoursuninterrupted operation. Select Sino-Galva High,Speed Digital Galvanometer lndustrial-grade multilayerprotective intelligent controlcabinet,with strong anti-interferenceability, providing stable andreliable performance. FAQ 1.What are the primary products of your company? Our primary products include laser marking machine, inkjet printer machine,paging machine. 2.Where is your laser marking machine applied to? Our laser equipment is applied to metal, non-metal, textiles, leather, shoes, advertisement, gifts, electronic components, stamp,etc 3.Which countries are your laser machinery sold to? Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, and other countries. 4.How long is the delivery time? The products will be delivered to you within one week after the order is confirmed. 5.What certificate has your company got? All of our product with CE, ISO If you are interested, please contact us. Company Profile We have accumulated rich experience in design and production. In addition to the imported automatic printing equipment in domestic car production line, our company has an absolute advantage, and has installed more than 35,000 sets of systems worldwide.The sales volume of mechanical marking system ranks the first in the world, and the sales volume of laser marking system ranks the first in Asia.Some domestic customers such as Toyota, faw Volkswagen, faw assembly geely, tianjin xiali, ningbo, Shanghai maple, Shanghai gm, jiangsu yueda KIA, foton, guangzhou Honda, Beijing hyundai, Beijing Benz, jinbei automobile, brilliance and other manufacturers, both chose my company with the line of printing equipment, the equipment on the production line of continuous and reliable work, low failure rate, create value for customers, the company won the honor for me. FEEDBACK For more than 11 years, Faith products have been exported to 126 countries, occupying 7% of the industry's market share, and customers all over the worldIf you have any questions, please feel free to contact me, I will do my best to give you a satisfactory answer. what service can we provide for you?
24 hours after sales online, / no matter you are looking for help anywhere, anytime, we can respond quickly
Excellent technical consultant, provide the best online solution.
Three-year warranty, during the warranty period we provide professional, considerate and timely after-sales service.Give backFor more than ten years, Faith products have been exported to 126 countries, accounting for 7% of the industry's market share, and customers all over the world have won unanimous praise from everyone.
After payment is completed, your order will be shipped within 3 daysWe use express ups, dhl, ems, fedex, and the package will reach your hand in 3-12 business days.

---
