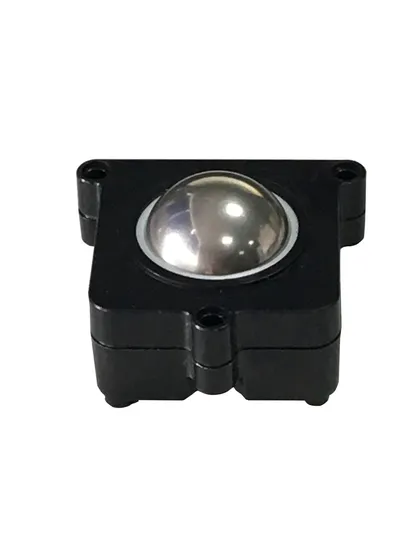

High-Sensitivity Optical Trackball Module with Diameter 25 mm

Product Description

Optical Trackball Module with High-sensitivity, Durable Trackball with Diameter 25 mm

Part No: MTB-25-OEM
Key Features 1. Optical trackball
2. Easy to imbed in custom case.
3. Dust-proof and liquid-proof, IP65 compliance when properly installation.
4. Specially designed to operate in harsh environments, making them ideal for web payphones, kiosks and other demanding applications
5. Compatible with WINDOWS98/ME/2000/XP/Win 7/Linux
6. Interface can be USB or PS/2

Technical Specifications
Material • Trackball: 304 stainless steel	Electrical Data • Voltage: 5.0VDC ±5% • Electric current: 10mA • EMC compliant • Optical Trackball resolution: 1000dpi	Environmental Characteristics • Operating temperature: -20°C to + 60°C • Storage temperature: - 40°C to + 80°C • Saline mist: 96 hours, IEC 60512-6 • Damp heat test at + 40°C: 21 days, IEC 60512-6 • Dry heat test at + 85°C: 10 days, IEC 60512-6
Mechanical Data • Trackball Diameter: 25 mm	Operation System •Win 98SE/98ME/2000/XP, Mac OS9/ OSX, Win 7, Linux Reliability • MTBF >20000h • MTTR <30min	Dimension • Front Panel: 45 x 49 mm (L x W)

Company Information:

KINGLEADER is an ISO9001:2008 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.

Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.

Why us?

1,ISO9001:2008 certification
2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3,Reasonable price and fast response
4,Over 10 years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry

---
