Multi Discs Stone Cutting Machine for Marble Granite Into Slab (DQ2200/2500/2800)

Product Description

Multi Discs Stone Cutting Machine
1.Product No.:DQ2200/2500/2800
2. Good services and warranty.
3. High power and easily operation.
Multi Discs Stone Cutting Machine Info:
A bridge type reliable and heavy duty machine with the latest technology for sawing stone block making slabs.The equipment is applicable for cutting granite, marble, sandstone, limestone, etc.It is able to carry multi blades when sawing granite stones that greatly raises the production output. The machine is microcomputer control and works by program automatically and also capable of manual operation.The heavy cast steel bridge provides excellent balance ensuring uniform thickness of each slab.
Multi Discs Stone Cutting Machine Specification:

Model		DQ2200A	DQ2200B	DQ2500	DQ2800
Max. blade size	mm	Φ2200	Φ2200	Φ2500	Φ2800
Max. cut length	mm	2800	3600	3300	3200
Max. cut width	mm	2200	2200	2200	2200
Max. cut depth	mm	950	950	1100	1250
Spindle motor	Kw	37/45	37/45	45	45
Total power	Kw	44/52	44/52	52	52
Size (L×W×H)	m	6.9×4.3×5.3	7.8×4.3×5.3	7.8×4.3×5.5	7.8×4.3×5.8
Weight	Kg	11,000	11,500	12,000	12,300

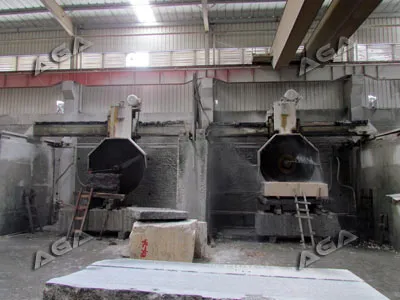

Multi Discs Stone Cutting Machine Pictures:
Similar products as below show:

Pictures
Model		DL2200	DL2500	DL3000
Max. blade size	mm	Φ2200	Φ2500	Φ3000
Max. cut length	mm	3000	3000	3400
Max. cut width	mm	2000	2000	2000
Max. cut depth	mm	950	1100	1350
Spindle motor	Kw	37	37	37
Water consumption	cbm/h	6	6	6
Size (L×W×H)	m	6.6×6.1×4.9	6.6×6.1×4.9	7.1×4.8×6.1
Weight	Kg	9,000	9,500	12,000

Why AGA Company:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw,block cutter,polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A.,Canada, Europe, Mid East, Egypt, India,etc.
AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
AGA Products:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.
Keyword:
Stone Block Cutting Machine,Stone Cutting Machine,Granite Cutting Machine,Granite Block Cutter.

---
