US$45,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000
Production Capacity
100set/Month
Product Description

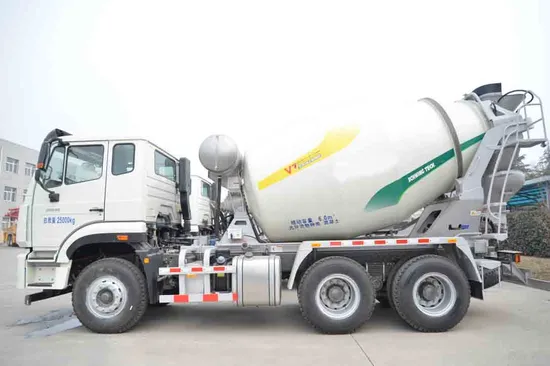

new generation truck mixers are system optimized by taking the integrated modularization design totruly realize the integrated innovation. 1. Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused bynonuniform concrete. 2. Optimized chassis matches with upper parts and such parts as front base andaccessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design. 3. Hydraulic pump, motor and speed reducer of such world-famous brands as ZF, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.
Specification
Category
| Model
| Unit
| G06K
|
Performance of mixing drum
| Geometric volume
| m³
| 11.6
|
Max. diameter of drum
| mm
| 2250
|
Drum length
| mm
| 4217
|
Mounting tilt angle
| °
| 15
|
Rotary speed
| r/min
| 0~14
|
Charging speed
| m³/min
| ≥3
|
Discharging speed
| m³/min
| ≥2
|
Residual ratio of discharging
| %
| <0.7
|
Range of slump
| cm
| 5~21
|
Hydraulic system
| Oil pump
|
| World-famous brand
|
Motor
|
| World-famous brand
|
Speed reducer
|
| World-famous brand
|
Hydraulic circuit
|
| Closed type
|
Water supply
| Volume of water tank
| L
| 450
|
Way of water supply
|
| Air pressure
|
Overall machine
| Chassis brand
|
| SinoTruck
|
Chassis model
|
| ZZ1255N3246B1
|
Steering wheel
|
| Left steering wheel
|
Curb mass
| kg
| 12250
|
Driving type
|
| 6×4
|
Wheelbase
| mm
| 3225+1350
|
PTO way
|
| Flywheel PTO
|
Outline dimension
| (L*W*H)mm
| 8240*2500*3740
|
Engine
| Model
|
| WD615.69
|
Rated power
| Kw/r/min
| 247
|
Displacement
| L
| 9.726
|
Emission standard
|
| II
|
>>
