Chrome Stainless Steel Gcr15/AISI52100/100cr6 Ball Roller Wheel Auto Machine Cojinete Rodamientos Bearings

Product Description

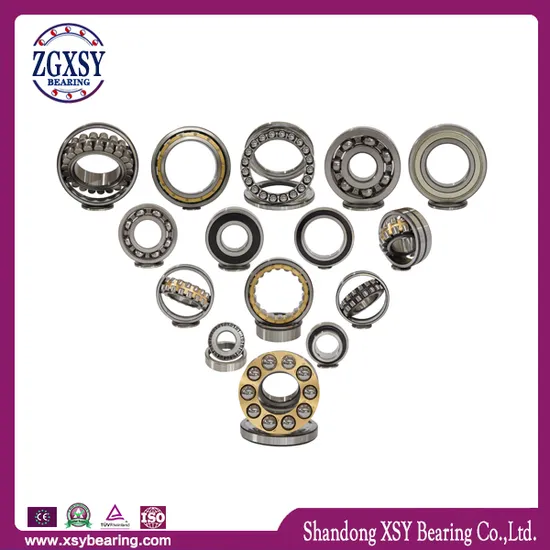

XSY Deep Groove Ball Bearing
Deep-groove ball bearings are the most popular of the antifriction bearing types. They are available in a broad range of sizes, from miniature ball bearings with outside diameter of less than 9mm to extra-large that exceed 1, 500mm. Small and medium size bearings are also available in a variety of shield, seal and snap ring arrangements. Large ones normally are fitted with solid brass or steel cages.
XSY Bearing Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides
and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.
For big deep groove ball bearings, machined brass cages are used.
Machined cages are also used for high speed applications.
Materials: 1.Chorme Steel GCR15 (AISI52100) (100CR6)
2.Stainless Steel

Model Number	6000 Series, 6200 Series, 6300 Series, 6400 series, 6800 Series, 6900 Series,16000 Series
Seals Type	Open, Z, ZZ, RZ, 2RZ, RS, 2RS
Precision Rating	ABEC1(P0), ABEC3(P6), ABEC5(P5)
Vibration velocity	V1, V2, V3
Vibration acceleration	Z1, Z2, Z3
Number of Row	Single Row
Metal	Chrome steel or Bearing steel
Oil and Grease	Mobile, Chevron, Caltex, Hangu, Kyodo, Shell

Precision Rating
Standard	Rating
ISO	P0	P6	P5	P4	P2
SK	P0	P6	P5	P4	P2
DIN	P0	P6	P5	P4	P2
ANSI	ABEC-1	ABEC-3	ABEC-5	ABEC-7	ABEC-9
AFBMA	RBEC-1	RBEC-3	RBEC-5	RBEC-7	RBEC-9
JIS	P0	P6	P5	P4	P2
GB307-84	G	E	D	C	/
GB/T307-94	P0	P6	P5	P4	P2

6000 Series Deep Deep Groove Ball Bearings : 6000-6052 Open, Z, ZZ, RZ, 2RZ, RS, 2RS
6200 Series Deep Deep Groove Ball Bearings : 6200-6248 Open, Z, ZZ, RZ, 2RZ, RS, 2RS
6300 Series Deep Deep Groove Ball Bearings : 6300-6346 Open, Z, ZZ, RZ, 2RZ, RS, 2RS
6400 Series Deep Deep Groove Ball Bearings: 6405-6420 Open, Z, ZZ, RZ, 2RZ, RS, 2RS
Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry's highest load rating and production coming from a factory near you, there's no reason to look anywhere else for spherical roller bearings.
Spherical roller bearings are double-row, self-retaining units comprising solid outer rings with a concave raceway,solid inner rings, and barrel rollers with cages. The inner rings with cylindrical or tapered bores. The symmetrical barrel rollers freely align themselves to the concave outer ring raceway. As a result, shaft deflections and misalignments of the bearing seats are compensated.
Mainly size: 22205-22244 22306-22344 23020-23052 24018-24048 23218-23238 23120-23144 24118-24140 21308-21324 (CC CA MB E EK W33C3 )
ZGXSY
Parameters

Size (mm)							Basic Load Rating (kN)		Part Number	LimitedSpeed (rpm)		Weight (kg)
d	D	T	B	C	Rmin	rmin	Cr	Cor	Inner-Out Ring	Grease	Oil
45	100	-	25	-	1.5	1.5	104	116	21309	4000	5400	0.935
70	150	-	51	-	2.1	2.1	311	364	22314C3W33	2600	3500	4.11
85	180	-	60	-	3	3	397	481	22317C3W33	2200	2900	6.99
90	160	-	40	-	2	2	246	330	22218KW33	2300	3100	3.4
90	190	-	64	-	3	3	497	617	22318C3W33	1900	2500	8.41
90	160	-	52.4	-	2	2	303	412	23218CAC3E33	1900	2400	4.55
100	215	-	73	-	3	3	633	806	22320CA/W33	1600	2200	12.7
110	170	-	45	-	2	2	288	471	23022K	1900	2500	3.63
120	180	-	46	-	2	2	299	517	23024MB	1900	2600	4.22
120	180	-	46	-	2	2	299	517	23024CAC3W33	1900	2600	4.07
120	200	-	80	-	2	2	495	925	24124E	900	120	10.6
130	180	-	37	-	1.5	1.5	204	355	23926YMW33C3	1800	2300	2.87
140	190	-	37	-	1.5	1.5	248	466	23928YMW33C3	1700	2200	3.13
160	290	-	80	-	3	3	885	1270	22232CAC3W33	1200	1700	22.9
160	270	-	86	-	2.1	2.1	784	1240	23132CAW33	1100	1400	21.8
170	310	-	86	-	4	4	952	1390	22234W33	1100	1500	28.4
170	260	-	67	-	2.1	2.1	629	1110	23034CAKC3W33	1200	1600	12.6
180	320	-	112	-	4	4	1360	2110	23236KMC3W33	1000	1300	38.2
190	340	-	120	-	4	4	1550	2420	23238CAC3W33	1000	1260	44.8
200	420	-	138	-	5	5	2010	2750	22340K	830	1100	93.5
200	340	-	112	-	3	3	1240	2210	23140CAKC3W33	840	1000	43.5
200	280	-	60	-	2.1	2.1	495	1150	23940MW33	1600	2000	12.1
200	340	-	140	-	3	3	1380	2800	24140CAW33	560	700	52.1
200	340	-	140	-	3	3	1380	2800	24140CAC3W33	560	700	52.1
220	460	-	145	-	5	5	2380	3380	22344MBW33C3	720	960	122
220	340	-	90	-	3	3	984	1890	23044CAW33	940	1300	31.5
220	340	-	90	-	3	3	984	1890	23044W33	940	1300	31.5
220	400	-	144	-	4	4	2040	3750	23244KC3W33	710	840	77.3
220	300	-	60	-	2.1	2.1	500	1200	23944MW33	1500	1900	13
240	400	-	128	-	4	4	1080	2320	23148W33	750	890	67.6
240	440	-	160	-	4	4	2530	4300	23248CA/C3W33	670	850	103
240	440	-	160	-	4	4	2530	4300	23248CK	670	850	110
240	440	-	160	-	4	4	2530	4300	23248KC3W33	670	850	102
240	320	-	60	-	2.1	2.1	530	1310	23948	1300	1700	15
260	400	-	104	-	4	4	1470	2720	23052CAW33	760	1000	46.3
280	580	-	175	-	6	6	3150	4910	22356K	530	710	225
280	460	-	146	-	5	5	2180	3920	23156M	600	710	95.5
280	500	-	176	-	5	5	2850	4770	23256MB	560	670	154
280	500	-	176	-	5	5	2850	4770	23256KMB	560	670	149
280	500	-	176	-	5	5	2850	4770	23256KC3W33	560	670	152
280	380	-	75	-	2.1	2.1	700	1850	23956CCKW33	1000	1400	25.7
280	420	-	140	-	4	4	1620	3700	24056CC/W33	670	850	69.2
300	500	-	160	-	5	5	2560	4490	23160KYMBW33W507CO8C6	530	630	130
300	540	-	192	-	5	5	3350	5570	23260CAF3C3W33	500	600	200
300	540	-	192	-	5	5	3350	5570	23260CKC3	500	600	195
300	540	-	192	-	5	5	3350	5570	23260CCW33C3	500	600	195
300	420	-	90	-	3	3	1050	2500	23960MBW33	950	1300	40.1
300	460	-	160	-	4	4	2420	4850	24060CAC3W33	560	700	65.7
320	480	-	121	-	4	4	1890	3510	23064	530	630	78.5
320	540	-	176	-	5	5	3020	5390	23164SPLIT	500	600	190
320	540	-	176	-	5	5	3220	5390	23164KMB	500	600	165
320	580	-	208	-	5	5	3880	6520	23264C3W33	450	530	253
320	440	-	90	-	3	3	1330	2870	23964CAW33	630	840	43.0
320	440	-	90	-	3	3	1330	2870	23964MBW33	630	840	43.0
340	520	-	133	-	5	5	2270	4210	23068	500	600	114
340	580	-	190	-	5	5	3450	6100	23168KC3	450	530	206
340	460	-	90	-	3	3	1200	2700	23968MBW33	900	1200	45.6
340	520	-	180	-	5	5	2460	5700	24068W33C3	530	670	137
340	580	-	243	-	5	5	3700	7950	24168W33	320	400	256
360	540	-	134	-	5	5	2360	1160	23072MBW33	450	530	126
360	600	-	192	-	5	5	3630	6550	23172CAKW33	420	500	255
360	600	-	192	-	5	5	3630	6550	23172CCKW33	420	500	255
360	600	-	192	-	5	5	3630	6550	23172C3W33	420	500	221
360	600	-	192	-	5	5	3630	6550	2317CCW33C3	400	500	255
360	650	-	232	-	6	6	4650	8300	23272W33MBC3	400	500	330
360	480	-	90	-	3	3	1290	2820	23972MBW33	850	1100	46.6
360	480	-	90	-	3	3	1290	2820	23972CACW33	850	1100	46.6
360	480	-	90	-	3	3	1290	2820	23972MW33	850	1100	46.6
360	540	-	180	-	5	5	3010	6350	24072CAC3W33	500	630	148
380	520	-	106	-	4	4	1730	3800	23976MW33	800	1000	69.5
400	650	-	200	-	6	6	4040	7580	23180	380	450	239
400	540	-	106	-	4	4	2540	3900	23980MBW33	750	950	72.4
400	540	-	106	-	4	4	2540	3900	23980CAW33	750	950	72.4
420	760	-	272	-	6	6	6400	11300	23284CAKC3W33	320	400	550
420	560	-	106	-	5	5	1810	4000	23984	480	600	74.5
420	560	-	106	-	5	5	1810	4000	23984CACW33	480	600	77
440	650	-	157	-	6	6	3210	6410	23088CC	350	420	184
440	720	-	226	-	6	6	4480	9350	23188MBH40	330	400	420
460	620	-	118	-	4	4	2220	4900	23992CAW33	430	530	103
460	620	-	118	-	4	4	2220	4900	23992MBW33	430	530	103
460	830	-	296	-	7.5	7.5	6100	14400	24192CAW33	160	200	459
480	650	-	128	-	5	5	2390	5450	23996CAW33	430	530	126
500	720	-	167	-	6	6	3470	7650	230/500	380	480	228
500	720	-	167	-	6	6	3470	7650	230/500CAKC3W33	380	480	227
500	870	-	224	-	9.5	9.5	9750	39500	294/500	320	460	559
530	780	-	185	-	6	6	4290	9650	230/530K	340	430	328
530	710	-	136	-	5	5	2900	6700	239/530MW33	360	450	154
530	710	-	109	-	5	5	3356	16600	292/530	350	300	113
600	870	-	200	-	6	6	5170	11600	230/600	300	380	431
600	980	-	300	-	7.5	7.5	8900	18800	231/600	180	250	894
600	800	-	150	-	5	5	3260	8400	239/600CAMKE4C3	320	400	220
600	800	-	150	-	5	5	3260	8400	239/600KMW33C3	320	400	213
600	870	-	272	-	6	6	7690	15900	240/600	240	320	555
600	870	-	272	-	6	6	8100	16500	240/600CAC4S2W33	220	300	560
600	980	-	375	-	7.5	7.5	1000	21600	241/600	110	150	1140
600	980	-	375	-	7.5	7.5	1000	21600	241/600CAC4S2W33	110	150	1135
600	800	-	122	-	5	5	4050	21200	292/600	-	450	162
630	850	-	165	-	6	6	3550	9750	239/630	280	360	280
670	900	-	170	-	6	6	4400	10600	239/670K+8LeeveH39/670K	260	340	313
670	1090	-	412	-	7.5	7.5	14000	31500	241/670K	150	190	1560
710	950	-	180	-	6	6	5000	12000	239/710KC3	240	310	364
750	1120	-	224	-	9	9	-	-	293/750	-	250	708
900	1180	-	206	-	6	6	6050	16400	239/900CAKW33C3	180	240	591
950	1250	-	224	-	7.5	7.5	7350	19000	239/950KC3FY	160	225	745
1060	1400	-	250	-	7.5	7.5	9350	25000	239/1060KMW33C3	145	170	1028
1060	1400	-	250	-	7.5	7.5	9350	25000	239/1060KMBC3 ORNON C3	145	170	1028
1180	1540	-	272	-	7.5	7.5	10290	29600	239/1180CAKF	110	150	1335
1180	1540	-	272	-	7.5	7.5	10290	29600	239/1180KMW33C3	110	150	1350
1180	1540	-	375	-	7.5	7.5	13310	40000	249/1180CAK	110	150	1772
1500	1820	-	315	-	7.5	7.5	12000	40000	248/1500KC3	65	83	1730
1500	1820	-	315	-	7.5	7.5	12000	40000	248/1500KW33	65	83	1700
1800	2180	-	375	-	9.5	9.5	17400	62800	248/1800CAK30FA/C3W20	62	70	2870
1800	2180	-	375	-	9.5	9.5	17400	62800	248/1800CAK30FA/C3 VE545	62	70	2870
1800	2180	-	375	-	9.5	9.5	17400	62800	248/1800CK30BC3	62	70	2900
150	250	60	20	29	2.1	2.1	735	2840	29330	-	1600	11.5
160	270	67	23	32	3	3	880	3400	29332	-	1400	15.5
160	270	67	23	32	3	3	880	3400	29332MA	-	1400	15.5
190	270	48	48	24	2	2	540	2300	29238F3	-	1800	8.5
200	280	48	15	24	2	2	550	2410	29240	-	1800	9
200	340	85	29	41	4	4	1350	5250	29340	-	1000	32.0
220	360	85	29	41	4	4	1410	5750	29344	-	1000	34.5
240	340	60	19	30	2.1	2.1	890	4000	29248	-	1300	17.1
280	520	145	52	68	6	6	3450	13500	29456	-	580	137
280	520	145	52	68	6	6	3450	13500	29456E	-	580	137
300	480	109	37	50	5	5	2310	10000	29360	-	720	75.4
300	480	109	37	50	5	5	2310	10000	29360E	-	720	75.4
300	540	145	52	70	6	6	4510	16460	29460EM	-	540	146
320	580	155	55	75	7.5	7.5	4050	16800	29464E	-	480	179
400	710	185	67	89	7.5	7.5	5850	25000	29480	-	360	314
400	710	185	67	89	7.5	7.5	5850	25000	29480E	-	360	314
460	710	150	51	72	6	6	4600	21700	29392	-	430	216

Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
150	225	56	2.1	338	768	23030	3003130	8.91	1700	2200
150	225	56	2.1	338	768	23030/W33	3003130Y	8.85	1700	2200
150	225	75	2.1	564	1040	24030CC/W33		10.5	1300	1700
150	250	100	2.1	890	1600	24130C	4053730	20.4	1000	1400
150	250	100	2.1	890	1600	24130C/W33	4053730Y	20	1000	1400
150	270	73	3	738	1100	22230C	53530	18.9	1600	2000
150	270	96	3	935	1520	23230C/W33	3053230Y	24.3	1100	1500
150	320	108	4	1270	1850	22330CA/W33	53630HY	41.7	1000	1400

Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
160	240	60	2.1	376	825	23032	3003132	13.5	1700	2200
160	240	60	2.1	376	825	23032/W33	3003132Y	13.4	1700	2200
160	240	80	2.1	652	1230	24032C	4053132	12.9	1100	1500
160	240	80	2.1	652	1230	24032C/W33	4053132Y	12.8	1100	1500
160	270	109	2.1	1040	1880	24132C	4053732	25.4	950	1300
160	270	109	2.1	1040	1880	24132C/W33	4053732Y	25	950	1300
160	290	80	3	658	1140	22232	3532	22.2	1500	1900
160	290	80	3	658	1140	22232/W33	3532Y	22.1	1500	1900
160	340	114	4	1170	1730	22332/W33	3632Y	49.9	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
170	260	67	2.1	450	1010	23034	3003134	14.7	1600	2000
170	260	67	2.1	450	1010	23034/W33	3003134Y	14.6	1600	2000
170	280	109	2.1	700	1200	24134/W33	-	27	1300	1700
170	310	86	4			22234			1300
170	310	86	4	730	1300	22234/W33	3534Y	27.2	1300	1700
170	310	110	4	1160	1835	23234CA	3053234H	37.1	950	1300
170	360	120	4			22334			950
170	360	120	4	1200	2060	22334/W33	3634Y	59.3	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
180	280	100	2.1	930	1820	24036	4003136	22.5	950	1300
180	280	100	2.1	930	1820	24036/W33	4003136Y	22.3	950	1300
180	300	96	3	695	1480	23136	3003736	27.1	1100	1500
180	300	96	3	695	1480	23136/W33	3003736Y	26.8	1100	1500
180	300	96	3	695	1480	23136/C9	3003736U	27.1	1100	1500
180	300	96	3	695	1480	23136/W33YA2	3003736KY	26.8	1100	1500
180	300	96	3	695	1480	23136N	3203736	26.4	1100	1500
180	320	86	4	750	1370	22236	3536	28.6	1300	1700
180	320	86	4	750	1370	22236/W33	3536Y	28.3	1300	1700
180	320	112	4	1280	2170	23236CA	3053236H	39.6	900	1200
180	320	112	4	1280	2170	23236CA/W33	3053236HY	39.5	900	1200
180	320	112	4	1280	2170	23236CA/W33YA2	3053236HKY	39.4	900	1200
180	380	126	4	1430	2210	22336	3636	80.7	900	1200
180	380	126	4	1430	2210	22336/W33	3636Y	79.9	900	1200

Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
190	280	67	2.5	542	978	2638	3738	13.7	1000	1400
190	290	75	2.1	626	1230	23038	3003138	20.5	1300	1700
190	290	75	2.1	626	1230	23038/W33	3003138Y	20.3	1300	1700
190	320	128	3	1200	2100	24138CA/W33	-	42	850	1100
190	340	92	4	1070	1650	22238CA	53538H	36	1200	1600
190	340	120	4	1410	2490	23238CA	3053238H	51	850	1100
190	400	132	5	1400	2530	22338	3638	80.6	850	1100
190	400	132	5	1400	2530	22338/W33	3638Y	79.7	850	1100

Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
200	310	82	2.1	655	1310	23040	3003140	26.2	1200	1600
200	310	82	2.1	655	1310	23040/W33	3003140Y	26	1200	1600
200	310	109	2.1	900	1830	24040CA/W33	-	30.5	1100	1500
200	340	112	3	930	2010	23140	3003740	50.9	950	1300
200	340	112	3	930	2010	23140/W33	3003740Y	50.5	950	1300
200	340	140	3	1530	2950	24140C	4053740	52	800	1000
200	340	140	3	1530	2950	24140C/W33	4053740Y	51.9	800	1000
200	360	98	4	940	1740	22240	3540	44.7	1100	1500
200	360	98	4	940	1740	22240/W33	3540Y	44.2	1100	1500
200	360	128	4	1000	1800	23240/W33	3003240Y	56.5	950	1300
200	420	114	4	1600	2600	22246	3546	69.5	750	950
200	420	138	5	1530	2720	22340	3640	95.3	850	1100
200	420	138	5	1530	2720	22340/W33	3640Y	95	850	1100

Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
320	76	3	758	1280	2644	3844	21.6	1000	1400
370	120	4	1050	2350	23144	3003744	54	900	1200
370	120	4	1050	2350	23144/W33	3003744Y	53.5	900	1200
400	108	4	1200	2220	22244	3544	57.6	950	1300
400	108	4	1200	2220	22244/W33	3544Y	57.1	950	1300
400	144	4	2070	3620	23244	3003244	94.6	750	950
400	144	4	2070	3620	23244/W33	3003244Y	94.2	750	950
460	145	5	1700	3200	22344	3644	130	750	950
460	145	5	1700	3200	22344/W33	3644Y	129	750	950
mm		Chamfer	Basic Load Ratings		Designation		Weight	r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
420	114	4	1600	2600	22246	3546	69.5	750	950
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
360	92	3	820	2060	23048	3003148	37.6	1000	1400
360	92	3	820	2060	23048/W33	3003148Y	37.4	1000	1400
360	118	3	1000	2200	24048CA/W33	-	41.7	900	1200
400	128	4	1200	2850	23148	3003748	77.2	850	1100
400	128	4	1200	2850	23148/W33	3003748Y	75.2	850	1100
400	160	4	2100	3980	24148/W33	4003748Y	81.6	480	600
440	120	4	1870	2890	22248	3548	85	900	1200
440	160	4	2490	4490	23248	3003248	128	670	850
440	160	4	2490	4490	23248/W33	3003248Y	127	670	850
500	155	5	1780	3250	22348	3648	154	670	850
500	155	5	1780	3250	22348/W33	3648Y	153	670	850
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
365	87	3	950	1650	2650	3750	32.2	1000	1400
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
360	57	2.1	800	1500	23952CA/W33	-	22.5	1000	1400
400	104	4	1000	2450	23052	3003152	51.5	900	1200
400	104	4	1000	2450	23052/W33	3003152Y	51.2	900	1200
400	140	4	1300	3000	24052CA/W33	-	64.4	850	1100
440	144	4	1450	3320	23152	3003752	96	800	1000
440	180	4	2660	5180	24152C/W33	4053752Y	113	800	1000
480	130	5	2160	3400	22252CA	53552H	105	850	1100
480	174	5	2800	4550	23252C/W33	3053252Y	140	630	800
480	174	5	2800	4550	23252CA	3053252H	151	630	800
480	174	5	2800	4550	23252CA/W33	3053252HY	151	630	800
490	153	4	2070	3650	2652	3752	140	670	850
540	165	6	2250	4190	22352	3652	193	630	800
540	165	6	2250	4190	22352/W33	3652Y	192	630	800
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
380	75	2.1	800	1500	23956CA/W33	3113956Y	24.5	900	1200
420	106	4	1100	2680	23056	3003156	62	850	1100
420	106	4	1100	2680	23056/W33	3003156Y	61.5	850	1100
420	140	4	1200	2800	24056CA/W33	-	67.2	800	1000
460	146	5	1590	3630	23156	3003756	95.5	750	950
460	180	5	2000	4100	24156CA/W33	-	119	750	950
500	130	5	1690	3380	22256	3556	126	800	1000
500	130	5	1690	3380	22256/W33	3556Y	124	800	1000
500	176	5	2880	4900	23256	3003256	153	600	750
500	176	5	2880	4900	23256/W33	3003256Y	152	600	750
580	175	6	3500	5150	22356	3656	238	600	750
580	175	6	3500	5150	22356/W33	3656Y	238	600	750
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
460	118	4	1260	3070	23060	3003160	75.2	800	1000
460	118	4	1260	3070	23060/W33	3003160Y	74.6	800	1000
460	160	4	2360	5010	24060C/W33	4053160Y	101	600	750
500	160	5	2670	4800	23160	3003760	134	670	850
500	160	5	2670	4800	23160/W33	3003760Y	133	670	850
500	200	5	3100	5800	24160C	4053760	160	530	670
500	200	5	3100	580	24160C/W33	4053760Y	159	530	670
540	140	5	2610	4250	22260	3560	143	750	950
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
440	90	3	1060	2390	23964K	3113964	45.1	900	1200
480	121	4	1380	3260	23064	3003164	81.5	800	1000
480	121	4	1380	3260	23064/W33	3003164Y	80.9	800	1000
480	160	4	2440	5050	24064	4003164	103	560	700
540	218	5	3550	6650	24164	4003764	252	480	600
540	218	5	3550	6650	24164/W33	4003764Y	251	480	600
580	208	5	3900	6900	23264	3003264	260	500	630
580	208	5	3900	6900	23264/W33	3003264Y	259	500	630
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
460	90	3	1330	2840	23968	3003968	50.5	900	1200
520	133	5	1580	3810	23068	3003168	109	700	900
520	133	5	1580	3810	23068/W33	3003168Y	109	700	900
520	180	5	2920	6050	24068/W33	4003168Y	160	530	670
580	190	5	3200	6200	23168/W33	300368Y	207	500	630
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
480	90	3	1130	2710	23972	3003972	49.1	850	1100
540	134	5	1750	4180	23072	3003172	114	670	850
540	134	5	1750	4180	23072/W33	3003172Y	114	670	850
540	180	5	2930	6100	24072C	4053172	149	500	630
540	180	5	2930	6100	24072C/W33	4053172Y	148	500	630
600	192	5	3800	7100	23172	3003772	222	560	700
600	192	5	3800	7100	23172/W33	3003772Y	221	560	700
600	243	5	4300	8000	24172	4003772	333	430	530
600	243	5	4300	8000	24172CA/W33	4003772HY	338	430	530
750	224	7.5	4180	7500	22372	3672	494	340	430
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
520	106	4	1870	4100	23976	3003976	73.5	800	1000
560	135	5	2500	5100	23076	3003176	122	630	800
620	194	5	2680	6240	23176	3003776	244	400	500
620	194	5	2680	6240	23176/W33	3003776Y	243	400	500
Dimensions		Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm								r/min
D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
590	142	6	2290	4420	2680	3880	145	400	500
600	148	5	2970	5900	23080	3003180	165	600	750
600	148	5	2970	5900	23080/W33	3003180Y	165	600	750
650	200	6	4150	7900	23180	3003780	239	380	480
650	250	6	4500	8900	24180	-	326	340	430
650	200	6	4150	7900	23180/W33	3003780Y	238	380	480
720	256	6	5800	10400	23280	3003280	530	340	430
720	256	6	5800	10400	23280/W33	3003280Y	530	340	430

We supplying the following Tapered Roller Bearings:
Our mainly sizes and series:30200,30300, 32200, 32300, 32000,31300, 35200, 33000, 33100,33200, 30600 serie and inch size taper roller bearing.

Inch series
Bearing No.		Boundary dimensions							Basic load ratings (kN)		Limiting speeds		Mass
		mm							Dynamic	Static	rpm		Kg
Cone	Cup	d	D	T	B	C	R	r	Cr	Cor	Grease	Oil	≈
11590	11520	15.875	42.862	14.288	14.288	9.525	1.5	1.5	17.6	17.6	8500	12000	0.1
LM11749	LM11710	17.462	39.878	13.843	14.605	10.668	1.3	1.3	21.2	20.8	9000	13000	0.081
LM11949	LM11910	19.050	45.237	15.494	16.637	12.065	1.3	1.3	27.5	27.5	8500	12000	0.12
09067	09195	19.050	49.225	18.034	19.05	14.288	1.3	1.3	39.1	40	8000	11000	0.18
09074	09196	19.050	49.225	23.02	21.539	17.462	1.5	1.5	39.1	40	8000	11000	0.21
A6075	A6157	19.050	39.992	12.014	11.153	9.525	1.0	1.3	14.9	15.7	9500	13000	0.066
09067	09196	19.050	49.225	21.209	19.050	17.462	1.3	1.5	39.1	40	8000	11000	0.2
09074	09195	19.050	49.225	19.845	21.539	14.288	1.5	1.3	39.1	40	4300	8000	0.19
09074	09194	19.050	49.225	23.020	21.539	17.462	1.5	3.5	37.5	37.0	8500	11000	0.21
12580	12520	20.638	49.225	19.845	19.845	15.875	1.5	1.5	37.5	39.0	8200	11000
M12649	M12610	21.430	50.005	17.526	18.288	13.970	1.3	1.3	36.9	38	8000	11000	0.17
LM12749	LM12710	21.986	45.237	15.494	16.637	12.065	1.3	1.3	27.5	31	8000	11000	0.12
LM12749	LM12711	21.986	45.974	15.494	16.637	12.065	1.3	1.3	27.5	31	8000	11000	0.12
M12648	M12610	22.225	50.005	17.526	18.288	13.970	1.3	1.3	39.1	40.7	8500	11000	0.17
1280	1220	22.225	57.150	22.225	22.225	17.462	0.8	1.6	52.6	55.7	7600	10000
1755	1729	22.225	56.896	19.368	19.837	15.875	1.3	0.8	46	43.1	7600	10000
07093	07196	23.812	50.005	13.495	14.260	9.525	1.5	1.0	26.0	27.9	7600	10000
07097	07196	25.000	50.005	13.495	14.260	9.525	1.5	1.0	26.7	28.8	7900	11000	0.146
07100	07204	25.400	51.994	15.011	14.260	12.700	1.5	1.3	26.7	28.8	7900	11000	0.145
1780	1729	25.400	56.896	19.368	19.837	15.875	0.8	1.3	42.5	46.5	7200	9600
L44643	L44610	25.400	50.292	14.224	14.732	10.668	1.3	1.3	26	30	7500	10000	0.13
M84548	M84510	25.400	57.150	19.431	19.431	14.732	1.5	1.5	39.6	45	6700	9000	0.24
15101	15243	25.400	61.912	19.050	20.638	14.288	0.8	2.0	44.6	50.7	6400	8600	0.28
07100	07196	25.400	50.005	13.495	14.260	9.525	1.5	1.0	26.7	28.8	7900	11000	0.12
15101	15245	25.400	62.000	19.050	20.638	14.288	0.8	1.3	48.4	57	6000	8000	0.31
15101	15250X	25.400	63.500	20.638	20.638	15.875	0.8	1.5	48.4	57	6000	8000	0.34
L44649	L44610	26.988	50.292	14.224	14.732	10.668	3.5	1.3	26	30	7500	10000	0.11
1988	1922	28.575	57.150	19.845	19.355	15.875	3.5	1.5	47.3	55	6700	9000	0.22
02474	02420	28.575	68.262	22.225	22.225	17.462	0.8	1.5	58.3	69.5	5600	7500	0.42
02872	02820	28.575	73.025	22.225	22.225	17.462	0.8	3.2	55.0	65.7	5500	7400
15112	15245	28.575	62.000	19.050	20.638	14.288	3.5	1.3	48.4	57	6000	8000	0.28
L45449	L45410	29.000	50.292	14.224	14.732	10.668	3.5	1.3	26	32.5	7000	9500	0.11
15116	15245	30.112	62.000	19.050	20.638	14.288	0.1	1.2	44.6	50.7	6400	8600
M86649	M86610	30.162	64.292	21.433	21.433	16.670	1.5	1.5	49.5	61	6000	8000	0.33
M88043	M88010	30.162	68.262	22.225	22.225	17.462	2.3	1.5	55	69.5	5600	7500	0.41
02475	02420	31.750	68.262	22.225	22.225	17.462	3.6	1.6	51.0	61.1	6000	8000
14125A	14276	31.750	69.012	19.845	19.583	15.875	3.5	1.3	44.5	55.0	5500	7500	0.35
LM67048	LM67010	31.750	59.131	15.875	16.764	11.811	3.6	1.3	34.7	41.5	6300	8500	0.18
2580	2520	31.750	66.421	25.400	25.357	20.638	0.8	3.3	69.3	81.5	5600	7500	0.4
2580	2523	31.750	69.850	23.812	25.357	19.050	0.8	1.3	69.0	81.5	5700	7600	0.45
14125A	14276	31.750	69.012	19.845	19.583	15.875	3.5	1.3	48.5	58.0	5600	7400	0.35
15123	15245	31.750	62.000	18.161	19.050	14.288	4	1.3	48.4	57	6000	8000	0.24
15126	15245	31.750	62.000	19.050	20.638	14.288	0.8	1.2	44.6	50.7	6400	8600
HM88542	HM88510	31.750	73.025	29.370	27.783	23.020	1.3	3.3	74.3	101.0	5600	7500	0.62
M88048	M88010	33.338	68.262	22.225	22.225	17.462	0.8	1.5	55	69.5	5600	7500	0.38
14130	14276	33.338	69.012	19.845	19.583	15.875	3.5	1.3	53.9	67	5600	7500	0.35
14136 A	14276	34.925	69.012	26.982	26.721	15.875	0.8	1.3	53.9	67	5600	7500	0.33
25877	25821	34.925	73.025	23.812	24.608	19.050	1.5	0.8	72.1	88	5300	7000	0.47
LM48548	LM48510	34.925	65.088	18.034	18.288	13.970	3.6	1.3	47.3	57	5600	7500	0.25
HM88649	HM88610	34.925	72.233	25.400	25.400	19.842	2.3	2.3	67.1	90	5000	6700	0.5
HM89446	HM89410	34.925	76.2	29.37	28.575	23.02	3.5	3.3	78.1	106	4800	6300	0.66
L68149	L68110	34.988	59.131	15.875	16.764	11.938	3.5	1.3	33	44	6000	8000	0.17
L68149	L68111	34.988	59.974	15.875	16.764	11.938	3.5	1.3	33	44	6000	8000	0.17
LM78349A	LM78310A	34.988	61.973	16.700	17.000	13.600	1.5	1.5	37.0	48.0	5900	7900	0.21
HM88648	HM88610	35.717	72.233	25.400	25.400	19.842	3.6	2.4	66.9	87.4	5700	6900
25880	25821	36.487	73.025	23.812	24.608	19.05	1.5	0.8	72.1	88	5300	7000	0.46
25880	25820	36.487	73.025	23.812	24.608	19.05	1.5	0.8	72.1	88	5300	7000	0.45
2794	2720	36.487	76.2	23.812	25.654	19.05	3.5	3.3	74.8	93	5000	6700	0.5
HM89448	HM89410	36.512	76.200	29.370	28.575	23.02	0.8	3.3	78.1	106	4800	6300	0.64
HM89449	HM89410	36.512	76.200	29.370	28.575	23.02	3.5	3.3	78.1	106	4800	6300	0.64
JL69349	JL69310	38.000	63.000	17.000	17.000	13.500	sp	1.3	43.5	58.2	6000	8000	0.2
LM29748	LM29710	38.100	65.088	18.034	18.288	13.97	sp	1.3	42.9	56.5	5800	7800	0.24
LM29749	LM29710	38.100	65.088	18.034	18.288	13.97	2.3	1.3	42.9	57.0	5600	7500	0.24
LM29749	LM29711	38.100	65.088	19.812	18.288	15.748	2.3	1.3	42.9	57	5600	7500	0.25
3490	3420	38.100	79.375	29.370	29.771	23.812	3.5	3.3	91.3	110	5000	6700	0.67
418	414	38.100	88.5	26.988	29.083	22.225	3.5	1.5	101	114	4800	6300	0.83
2788	2720	38.100	76.200	23.812	25.654	19.050	3.5	3.3	74.8	93	5000	6700	0.5
16150	16282	38.100	72	19.000	20.638	14.237	3.5	1.5	49.5	60	5300	7000	0.33
HM801346	HM801310	38.1	82.55	29.37	28.575	23.02	0.8	3.3	85.8	118	4500	6000	0.78
25572	25520	38.100	82.931	23.812	25.400	19.050	0.8	0.8	77.2	100.0	4800	6300	0.64
LM300849	LM300811	40.988	67.975	17.500	18.000	13.500	3.6	1.5	44	58.5	5300	7000	0.24
LM501349	LM501310	41.275	73.431	19.558	19.812	14.732	3.5	0.8	55	69.5	4800	6300	0.33
LM501349	LM501314	41.275	73.431	21.430	19.812	16.604	3.5	0.8	55	69.5	4800	6300	0.35
LM501349	LM501311	41.275	73.431	23.012	19.812	18.186	3.5	2.3	55	69.5	4800	6300	0.37
M802048	M802011	41.275	82.550	26.543	25.654	20.193	3.5	3.3	73.7	91.5	4500	6000	0.62
18590	18520	41.275	73.025	16.667	17.462	12.700	3.5	1.5	46.8	56	5000	6700	0.28
11162	11300	41.275	76.200	18.009	17.384	14.288	1.5	1.5	45.7	56	5000	6700	0.34
24780	24720	41.275	76.200	22.225	23.020	17.462	3.5	0.8	68.2	86.5	5000	6700	0.43
HM803146	HM803110	41.275	88.9	30.162	29.37	23.02	3.5	3.3	95.2	127	4300	5600	0.9
526	522	41.275	101.6	34.925	36.068	26.988	3.5	3.3	151	190	3800	5000	1.45
3579	3525	42.862	87.312	30.162	30.886	23.812	3.5	3.3	102	132	4500	6000	0.8
25577	25520	42.875	82.931	23.812	25.400	19.050	3.5	0.8	80.9	106	4500	6000	0.57
25577	25523	42.875	82.931	26.988	25.4	22.225	3.5	2.3	80.9	106	4500	6000	0.61
25577	25522	42.875	83.058	23.876	25.4	19.114	3.5	2	80.9	106	4500	6000	0.57
527	522	44.450	101.600	34.925	36.068	26.988	3.5	3.3	151	190	3800	5000	1.35
535	532 A	44.450	111.125	38.100	36.957	30.162	3.5	3.3	151	190	3600	4800	1.9
25580	25520	44.450	82.931	23.812	25.400	19.050	3.5	0.8	80.9	106	4500	6000	0.57
25580	25523	44.45	82.931	26.988	25.4	22.225	3.5	2.3	80.9	106	4500	6000	0.61
25580	25522	44.45	83.058	23.876	25.4	19.114	3.5	2	80.9	106	4500	6000	0.57
HM803149	HM803110	44.45	88.9	30.162	29.37	23.02	3.5	3.3	95.2	127	4300	5600	0.85
17887	17831	45.230	79.985	19.842	20.638	15.080	2.0	1.3	62.0	78.5	4500	6000	0.41
LM603049	LM603011	45.242	77.788	19.842	19.842	15.080	3.5	0.8	53.9	69.5	4800	6300	0.37
LM603049	LM603014	45.242	79.974	19.842	19.842	15.000	3.5	0.8	57.1	73.5	4900	6500
LM603049	LM603012	45.242	77.788	21.430	19.842	16.667	3.5	0.8	57.1	73.5	4900	6500	0.38
LM102949	LM102910	45.242	73.431	19.558	19.812	15.748	3.5	0.8	55.6	78.1	5100	6700	0.3
25590	25520	45.618	82.931	23.812	25.400	19.050	3.5	0.8	80.9	106	4500	6000	0.55
25590	25523	45.618	82.931	26.988	25.400	22.225	3.5	2.3	80.9	106	4500	6000	0.59
LM503349	LM503310	45.987	74.976	18.000	18.000	14.000	2.3	1.5	50.1	71	4800	6300	0.31
M804049	M804010	47.625	88.900	25.400	25.400	19.050	3.5	3.3	87.1	112.0	4400	5900
386 A	382 A	47.625	96.838	21.000	21.946	15.875	0.8	0.8	80.9	102	3800	5500	0.73
JLM104948	JLM104910	50.000	82.000	21.501	21.501	17.000	3.0	0.5	71.7	97.9	4500	6000	0.42
LM104949	LM104911	50.800	82.550	21.590	22.225	16.51	3.5	1.3	61.2	84.3	4500	6000	0.42
LM104949	LM104912	50.800	82.931	21.590	22.225	16.510	3.5	1.3	69.5	94.0	4300	5700
368A	362A	50.800	88.900	20.638	22.225	16.513	3.5	1.3	76.5	91.5	4300	5600	0.5
368A	362X	50.800	90	25	22.225	20	3.5	2	76.5	91.5	4300	5600	0.58
529	522	50.800	101.600	34.925	36.068	26.988	0.8	3.2	131.0	159.0	4000	5300
529X	522	50.800	101.600	34.925	36.068	26.988	3.5	3.3	151	190	3800	5000	1.25
3780	3720	50.800	93.264	30.162	30.302	23.812	3.5	3.3	110	146	4000	5300	0.87
28580	28521	50.800	92.075	24.608	25.400	19.845	3.5	0.8	85.8	118	4000	5300	0.72
368A	363	50.800	90.000	20.000	22.225	20.000	3.5	0.8	76.5	90.5	4100	5500
28584	28521	52.388	92.075	24.608	25.400	19.845	3.5	0.8	84.8	119.0	4200	5600	0.67
539	532X	53.975	107.950	36.512	36.957	28.575	3.5	3.3	151	190	3600	4800	1.5
JLM506849	JLM506810	55.000	90.000	23.000	23.000	18.500	1.6	0.5	81.4	115.0	4200	5500
39581	39520	57.150	112.712	30.162	30.162	23.812	8	3.3	142	204	3200	4300	1.4
387	382A	57.150	96.838	21.000	21.946	15.875	2.3	0.8	80.9	102	3800	5000	0.59
387A	382A	57.150	96.838	21.000	21.946	15.875	3.5	0.8	80.9	102	3800	5000	0.59
387AS	382A	57.150	96.838	21.000	21.946	15.875	5	0.8	80.9	102	3800	5000	0.58
387	382S	57.150	96.838	21.000	21.946	15.875	2.3	2.3	80.9	102	3800	5000	0.59
387A	382S	57.150	96.838	21.000	21.946	15.875	3.5	2.3	80.9	102	3800	5000	0.59
387AS	382S	57.150	96.838	21.000	21.946	15.875	5	2.3	80.9	102	3800	5000	0.58
462	453X	57.150	104.775	30.162	29.317	24.605	2.3	3.3	109.0	144.0	3700	4900	1.08
28985	28920	60.325	101.600	25.400	25.400	19.845	3.5	3.3	85.8	125	3600	4800	0.81
28985	28921	60.325	100.000	25.400	25.400	19.845	3.5	3.3	85.8	125	3600	4800	0.77
395	394A	63.500	110.000	22.000	21.996	18.824	3.5	1.3	88	118	3200	4300	0.84
29585	29520	63.5	107.95	25.4	25.4	19.05	3.5	3.3	89.7	137	3200	4300	0.9
559	552A	63.500	123.825	38.100	36.678	30.162	3.5	3.3	172	240	3000	4000	2
39585	39520	63.500	112.712	30.162	30.162	23.812	3.5	3.3	142.0	204	3200	4300	1.25
395S	394A	66.675	110.000	22.000	21.996	18.824	3.5	1.3	88	118	3200	4300	0.79
HM212049	HM212011	66.675	122.238	38.100	38.354	29.718	3.5	3.5	191.0	249.0	3200	4300	1.85
3984	3920	66.675	112.712	30.162	30.048	23.812	3.5	3.3	123	183	3200	4300	1.15
39590	39520	66.675	112.712	30.162	30.162	23.812	3.5	3.3	142	204	3200	4300	1.2
399A	394A	68.262	110.000	22.000	21.996	18.824	2.3	1.3	88	118	3200	4300	0.76
482	472	69.850	120.000	29.794	29.007	24.237	3.5	2.0	132	186	3000	4000	1.35
566	563	69.850	127.000	36.512	36.17	28.575	3.5	3.3	176	255	2800	3800	1.85
484	472	70.000	120.000	29.794	29.007	24.237	2.0	2.0	132	186	3000	4000	1.3
567A	563	71.438	127.000	36.512	36.170	28.575	3.5	3.3	156.0	226.0	3000	4000
29685	29620	73.025	112.712	25.400	25.400	19.050	3.5	3.3	99	156	3000	4000	0.89
567	563	73.025	127.000	36.512	36.170	28.575	3.5	3.3	176	255	2800	3800	1.85
575	572	76.200	139.992	36.512	36.098	28.575	3.5	3.3	187	280	2400	3400	2.45
581	572	80.962	139.992	36.512	36.098	28.575	3.5	3.3	175.0	262.0	2700	3600
740	742	80.962	150.098	44.450	46.672	36.512	5.2	3.2	264.0	368.0	2500	3400
580	572	82.550	139.992	36.512	36.098	28.575	3.5	3.3	187	280	2400	3400	2.2
663	653	82.550	146.050	41.275	41.275	31.750	3.5	3.3	220	320	2200	3200	2.8
27690	27620	83.345	125.412	25.400	25.400	19.845	3.5	1.5	112	186	2600	3600	1.05
498	493	84.138	136.525	30.162	29.769	22.225	3.5	3.3	145	220	2400	3400	1.6
749	742	85.026	150.089	44.450	46.672	36.512	3.5	3.3	286	405	2200	3200	3.3
HM518445	HM518410	88.900	152.400	39.688	39.688	30.162	6.4	3.3	242	355	2000	3000	2.85
HM218248	HM218210	89.974	146.975	40.000	40.000	32.500	7	3.5	229	355	2200	3200	2.5
42381	42584	96.838	148.430	28.575	28.971	21.433	3.5	3.0	130	196	2200	3200	1.65
L521949	L521910	107.950	146.050	21.432	21.432	16.670	1.6	1.6	86.4	167.0	2300	3100

Bearing No.	Boundary dimensions							Limiting speed		Mass
	mm							rpm		Kg
	d	D	T	B	C	Rmin	rmin	Grease	Oil	≈
30200 series
30202	15	35	11.75	11	10	0.6	0.6	9000	13000	0.053
30203	17	40	13.25	12	11	1	1	9000	13000	0.096
30204	20	47	15.25	14	12	1	1	8000	11000	0.128
30205	25	52	16.25	15	13	1	1	7500	10000	0.153
30206	30	62	17.25	16	14	1	1	6300	8500	0.232
30207	35	72	18.25	17	15	1.5	1.5	5300	7000	0.337
30208	40	80	19.75	18	16	1.5	1.5	4800	6300	0.422
30209	45	85	20.75	19	16	1.5	1.5	4500	6000	0.476
30210	50	90	21.75	20	17	1.5	1.5	4300	5600	0.538
30211	55	100	22.75	21	18	2	1.5	3800	5000	0.715
30212	60	110	23.75	22	19	2	1.5	3400	4500	0.905
30213	65	120	24.75	23	20	2	1.5	3000	4000	1.12
30214	70	125	26.25	24	21	2	1.5	3000	4000	1.26
30215	75	130	27.25	25	22	2	1.5	2800	3800	1.36
30216	80	140	28.25	26	22	2.5	2	2400	3400	1.67
30217	85	150	30.5	28	24	2.5	2	2200	3200	2.08
30218	90	160	32.5	30	26	2.5	2	2000	3000	2.53
30219	95	170	34.5	32	27	3	2.5	1900	2800	3.06
30220	100	180	37	34	29	3	2.5	1900	2800	3.72
30221	105	190	39	36	30	3	2.5	1800	2600	4.39
30222	110	200	41	38	32	3.5	2	1700	2400	5.21
30224	120	215	43.5	40	34	3	2.5	1600	2200	6.19
30226	130	230	43.75	40	34	4	3	1500	2000	6.94
30228	140	250	45.75	42	36	4	3	1400	1900	8.75
30230	150	270	49	45	38	4	3	1300	1800	10.8
30232	160	290	52	48	40	4	3	1100	1600	12.9
30234	170	310	57	52	43	5	4	1000	1500	19
30236	180	320	57	52	43	5	4	1000	1500	20
30238	190	340	60	55	46	3	2.5	950	1400	24
30240	200	360	64	58	48	5	4	900	1300	25
30300 series
30302	15	42	14.25	13	11	1	1	9000	13000	0.096
30303	17	47	15.25	14	12	1	1	8500	12000	0.13
30304	20	52	16.25	15	13	1.5	1.5	8000	11000	0.166
30305	25	62	18.25	17	15	1.5	1.5	6700	9000	0.266
30306	30	72	20.75	19	16	1.5	1.5	5600	7500	0.391
30307	35	80	22.75	21	18	2	1.5	5000	6700	0.484
30308	40	90	25.25	23	20	2	1.5	4500	6000	0.751
30309	45	100	27.25	25	22	2	1.5	4000	5300	0.985
30310	50	110	29.25	27	23	2.5	2	3600	4800	1.28
30311	55	120	31.5	29	25	2.5	2	3200	4300	1.61
30312	60	130	33.5	31	26	3	2.5	3000	4000	1.95
30313	65	140	36	33	28	3	2.5	2600	3600	2.44
30314	70	150	38	35	30	3	2.5	2000	3000	2.99
30315	75	160	40	37	31	3	2.5	2200	3200	3.58
30316	80	170	42.5	39	33	3	2.5	2000	3000	4.27
30317	85	180	44.5	41	34	4	3	1900	2800	4.97
30318	90	190	46.5	43	36	4	3	1800	2600	5.79
30319	95	200	49.5	45	38	4	3	1800	2600	6.8
30320	100	215	51.5	47	39	4	3	1700	2400	8.2
30321	105	225	53.5	49	41	4	3	1600	2200	9.91
30322	110	240	54.5	50	42	4	3	1600	2200	11.5
30324	120	260	59.5	55	46	4	3	1500	2000	13.7
30326	130	280	63.75	58	49	5	4	1300	1800	17.1
30328	140	300	67.75	62	53	5	4	1200	1700	21.7
30330	150	320	72	65	55	5	4	1100	1600	28.5
30332	160	340	75	68	58	5	4	1100	1600	29
30334	170	360	80	72	62	5	4	950	1400	35
31300 series
31305	25	62	18.25	17	13	1.5	1.5	5600	7500	0.264
31306	30	72	20.75	19	14	1.5	1.5	5000	6700	0.393
31307	35	80	22.75	21	15	2	1.5	4500	6000	0.518
31308	40	90	25.25	23	17	2	1.5	4000	5300	0.727
31309	45	100	27.25	25	18	2	1.5	3400	4500	0.947
31310	50	110	29.25	27	19	2.5	2	3200	4300	1.22
31311	55	120	31.5	29	21	2.5	2	2800	3800	1.56
31312	60	130	33.5	31	22	3	2.5	2600	3600	1.91
31313	65	140	36	33	23	3	2.5	2200	3200	2.39
31314	70	150	38	35	25	3	2.5	2400	3400	2.95
31315	75	160	40	37	26	3	2.5	1900	2800	3.39
31316	80	170	42.5	39	27	3	2.5	1900	2800	4.05
31317	85	180	44.5	41	28	4	3	1800	2600	4.6
31318	90	190	46.5	43	30	4	3	1700	2400	5.9
31319	95	200	49.5	45	32	4	3	1700	2400	6.95
31320	100	215	56.5	51	35	4	3	1600	2200	8.6
31321	105	225	58	53	36	4	3	1500	2000	9.65
31322	110	240	63	57	38	4	3	1400	1900	12
31324	120	260	68	62	42	4	3	1200	1700	15.5
31326	130	280	72	66	44	5	4	1100	1600	18.5
31328	140	300	77	70	47	5	4	1000	1500	24.5
31330	150	320	82	75	50	5	4	950	1400	29.5
32000 series
32004	20	42	15	15	12	0.6	0.6	9700	13000	0.96
32005	25	47	15	15	11.5	0.6	0.6	8000	11000	0.115
32006	30	55	17	17	13	1	1	6700	9000	0.172
32007	35	62	18	18	14	1	1	6000	8000	0.227
32008	40	68	19	19	14.5	1	1	5300	7000	0.77
32009	45	75	20	20	15.5	1	1	4800	6300	0.329
32010	50	80	20	20	15.5	1	1	4500	6000	0.365
32011	55	90	23	23	17.5	1.5	1.5	4000	5300	0.55
32012	60	95	23	23	17.5	1.5	1.5	3800	5000	0.586
32013	65	100	23	23	17.5	1.5	1.5	3400	4500	0.627
32014	70	110	25	25	19	1.5	1.5	3200	4300	0.842
32015	75	115	25	25	19	1.5	1.5	3000	4000	0.887
32016	80	125	29	29	22	1.5	1.5	2600	3600	1.27
32017	85	130	29	29	22	1.5	1.5	2400	3400	1.33
32018	90	140	32	32	24	2	1.5	2200	3200	1.73
32019	95	145	32	32	24	2	1.5	2200	3200	1.8
32020	100	150	32	32	24	2	1.5	2000	3000	1.87
32021	105	160	35	35	26	2.5	2	1900	2800	2.38
32022	110	170	38	38	29	2.5	2	1800	2600	3.05
32024	120	180	38	38	29	2.5	2	1800	2600	3.2
32026	130	200	45	45	34	2.5	2	1600	2200	4.86
32028	140	210	45	45	34	2.5	2	1600	2200	5.19
32030	150	225	48	48	36	3	2.5	1500	2000	6.33
32032	160	240	51	51	38	3	2.5	1300	1800	7.53
32034	170	260	57	57	43	3	2.5	1100	1600	10.6
32036	180	280	64	64	48	3	2.5	1100	1600	14.5
32038	190	290	64	64	48	3	2.5	1000	1500	15
32040	200	310	70	70	53	3	2.5	950	1400	19.5
32044	220	340	76	76	57	4	3	900	1300	25.5
32048	240	360	76	76	57	4	3	850	1200	27.5
32200 series
32204	20	47	19.25	18	15	1	1	8000	11000	0.161
32205	25	52	19.25	18	16	1	1	7500	10000	0.184
32206	30	62	21.25	20	17	1	1	6300	8500	0.29
32207	35	72	24.25	23	19	1.5	1.5	5300	7000	0.45
32208	40	80	24.75	23	19	1.5	1.5	4800	6300	0.535
32209	45	85	24.75	23	19	1.5	1.5	4500	6000	0.584
32210	50	90	24.75	23	19	1.5	1.5	4300	5600	0.646
32211	55	100	26.76	25	21	2	1.5	3800	5000	0.86
32212	60	110	29.75	28	24	2	1.5	3400	4500	1.16
32213	65	120	32.75	31	27	2	1.5	3000	4000	1.54
32214	70	125	33.25	31	27	2	1.5	2800	3800	1.63
32215	75	130	33.25	31	27	2	1.5	2600	3600	1.75
32216	80	140	35.25	33	28	2.5	2	2400	3400	2.13
32217	85	150	38.5	36	30	2.5	2	2200	3200	2.69
32218	90	160	42.5	40	34	2.5	2	2000	3000	3.43
32219	95	170	45.5	43	37	3	2.5	1900	2800	4.24
32220	100	180	49	46	39	3	2.5	1800	2600	3.72
32221	105	190	53	50	43	3	2.5	1800	2600	6.31
32222	110	200	56	53	46	3.5	2	1700	2400	7.43
32224	120	215	61.5	58	50	3	2.5	1600	2200	9.26
32226	130	230	67.75	64	54	4	3	1500	2000	11.5
32228	140	250	71.75	68	58	4	3	1400	1900	14.4
32230	150	270	77	73	60	4	3	1200	1700	18.2
32232	160	290	84	80	67	4	3	1000	1400	21.1
32234	170	310	91	86	71	5	4	1000	1500	28.5
32236	180	320	91	86	71	5	4	950	1400	29.8
32238	190	340	97	92	75	5	4	900	1300	36
32240	200	360	104	98	82	5	4	900	1300	42.7
32244	220	400	115	108	90	5	4	800	1100	58.3
32300 series
32303	17	47	20.25	19	16	1	1	8000	11000	0.174
32304	20	52	22.25	21	18	1.5	1.5	7500	10000	0.231
32305	25	62	25.25	24	20	1.5	1.5	6000	8000	0.367
32306	30	72	28.75	27	23	1.5	1.5	5300	7000	0.56
32307	35	80	32.75	31	25	2	1.5	4800	6300	0.77
32308	40	90	35.25	33	27	2	1.5	4000	5300	1.05
32309	45	100	38.25	36	30	2	1.5	3600	4800	1.4
32310	50	110	42.25	40	33	2.5	2	3200	4300	1.89
32311	55	120	45.5	43	35	2.5	2	3000	4000	2.37
32312	60	130	48.5	46	37	3	2.5	2600	3600	2.9
32313	65	140	51	48	39	3	2.5	2400	3400	3.51
32314	70	150	54	51	42	3	2.5	2000	3000	4.35
32315	75	160	58	55	45	3	2.5	2000	3000	5.34
32316	80	170	61.5	58	48	3	2.5	1900	2800	6.38
32317	85	180	63.5	60	49	4	3	1800	2600	7.3
32318	90	190	67.5	64	53	4	3	1700	2400	8.78
32319	95	200	71.5	67	55	4	3	1700	2400	10.7
32320	100	215	77.5	73	60	4	3	1600	2200	3
32321	105	225	81.5	77	63	4	3	1500	2000	14.5
32322	110	240	84.5	80	65	4	3	1400	1900	17.8
32324	120	260	90.5	86	69	4	3	1300	1800	21.7
32334	170	360	128	120	100	3.7	1.3	850	1100	59.5
33000 series
33005	25	47	17	17	14	0.6	0.6	8000	10700	0.131
33006	30	55	20	20	16	1	1	6700	9100	0.208
33007	35	62	21	21	17	1	1	6200	8200	0.267
33008	40	68	22	22	18	1	1	5500	7400	0.322
33009	45	75	24	24	19	1	1	5000	6700	0.414
33010	50	80	24	24	19	1	1	4600	6100	0.452
33011	55	90	27	27	21	1.5	1.5	4100	5400	0.672
33012	60	95	27	27	21	1.5	1.5	3900	5200	0.713
33013	65	100	27	27	21	1.5	1.5	3600	4800	0.758
33014	70	110	31	31	25.5	1.5	1.5	3300	4400	1.11
33015	75	115	31	31	25.5	1.5	1.5	3200	4200	1.18
33019	95	145	39	39	32.5	2	1.5	2500	3300	2.3
33022	110	170	47	47	37	2.5	2	2100	2800	3.775
33200 series
33205	25	52	22	22	18	1	1	6700	9000	0.23
33206	30	62	25	25	19.5	1	1	5600	7500	0.37
33207	35	72	28	28	22	1.5	1.5	4800	6300	0.522
33208	40	80	32	32	25	1.5	1.5	4300	5600	0.535
33209	45	85	32	32	24.5	1.5	1.5	4000	5300	0.82
33210	50	90	32	32	24.5	1.5	1.5	3800	5000	0.9
33211	55	100	35	35	27	2	1.5	3400	4500	1.2
33212	60	110	38	38	29	2	1.5	3000	4000	1.6
33213	65	120	41	41	32	2	1.5	2800	3800	2.05
33214	70	125	41	41	32	2	1.5	2600	3600	2.1
33215	75	130	41	41	31	2	1.5	2400	3400	2.25
33216	80	140	46	46	35	2.5	2	2200	3200	2.9
33217	85	150	49	49	37	2.5	2	2000	3000	3.7
33220	100	180	63	63	48	3	2.5	1700	2400	6.78

Advantages and Feathers of XSY Bearing : XSY bearing Co., Ltd. Has its own factory. We make sure to offer you the most competitive price. XSY bearing Co., Ltd. Has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed. XSY bearing Co., Ltd. is a bearing manufacturer since 1990. Rich experience makes us more professional. The bearing is long durability, high speed and low noise. OEM & ODM are available. The products have passed ISO9001-2008 certification. All kinds of bearing simples are available. Application:
Automobile, tractor, machine tool, electrical machine, water pump, agriculture machine, textile machine, etc.
Testing:
All our products are tested sctrictly before delivery. The testing process is: Dimension Measurement-Waviness, roundness and form analysis-Noise and vibration testing-Noise and vibration testing-Non destructive testing-Grease testing machines.
Packaging & Delivery:
Packaging Details:
1. Tube /plastic bag+box+cartons+pallets
2. Plastic bag+single box+cartons+pallets
3. Industrial packing+cartons+pallets
Delivery Details:
Less than 1000PCS, deliver within 5 days by Express or Airplane.
More than 1000PCS, deliver within 15 days by sea.
FAQ:
1. Are you a factory or a trading company?
Shandong XSY Bearing Co., Ltd. is a professional manufacturer of deep groove ball bearings and Roller bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designers to help with your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What are your terms of payment?
You can pay by T/T, L/C, Westunion, Paypal, etc., and it can be negotiated according to different orders with different amounts.
7. Can we visit your factory?
Sure. Welcome to XSY Bearing Co., Ltd., And offer your kind guidance.
We always adhere to the business philosophy "research &develop attentively, offer service sincerely, make products meticulously set brand strategy ", with integrity and fairness in cooperation with domestic and foreign customers. We believe XSY will be your best partner in bearing area.
Contact us

---

>> Automobile Spare Parts Headlight Lamp hid xenon HID LH 81185-33B60 8118533B60 For Lexus ES250 ES350 ES300H ASA60 AVV60 GSV60 12-
>> DC10-30V High Quality and Waterproof LED Warning Lamp with Magnetic Base and Cigar Plug
>> New Replacement Part Electric Radiator Fan Assembly For BMW X5 E53
>> Factory Price Furniture T Nuts Tee Nuts Fasteners
>> Sunset Burning Sky Red Purple Chameleon Tint Film for Car Window Pink 80% Vlt 99% Irr Nano Ceramic Solar Colored Blue Chameleon Tint Film
>> TS7000 Smart Diagnostic & TPMS Scanner
>> Insole Boards / EVA Sheet / PU / Leather Fabric Laminating Machine
>> Color steel coil slitting machine with fixed length cutting and slitting equipment
>> Chrome Stainless Steel Gcr15/AISI52100/100cr6 Ball Roller Wheel Auto Machine Cojinete Rodamientos Bearings
>> Perfectrail Dkc500130 Auto Parts Windshield Wiper Blade for Land Rover Range Rover L538 Discovery L319 Freelander L314 Vub500900
>> T500+ Iwo Smart Watch 44mm Strap Series 6 Waterproof Smartwatch
>> Corrosion-Resistant White PTFE Tape for Industrial Sealing Applications
>> 1bzdz -4.8 Heavy-Duty Hydraulic Wing Disc Harrow/Harrow Disc/Disk Harrow
>> Porcelain Look Marble Tile Cheapest Ceramic Tiles Small Shower Room Bathroom Wall Tile
>> Export semi-trailer European semi-trailer Export Russian semi-trailer
>> OEM Customized Stainless Steel Aluminum brass CNC Machining Parts
>> Zhj-100-G Paper Edge Board Machine
>> IFM SN0151 Flow sensor control monitor Flow monitoring evaluation unit
>> LEEA 051 Standard 5T Davit Load Testing Weighing Water Bag
>> 1.5kw-3kw Raycus Fiber Laser Cutter for Metal Easy-to-Operate Machine for Tube Pipe Cutting with Rotary Retail Industries
