High Rigidity Heavy Metal Processing Vertical CNC Lathe Machine

Product Description

high-end supplier from China
metal turning vertical cnc lathe machine professional manufacturer
Product Description
Professional production line customization design experience.
Highly consistent with user personalized needs
High-quality manufacturing concept. Tailored for quality-level user needs

vertical CNC lathe advantages and features:
Core technology highlights
Rigid bed design
Adopting integral casting process and reinforcing rib structure, with high-precision widened 3+2 heavy-duty cylindrical roller screw guide rails, the bed's anti-deformation ability is improved to ensure stability and precision during heavy workpiece processing.
High-torque intelligent drive system
Equipped with customizable high-torque servo motors, the low-speed cutting torque can reach 3000N·m, perfectly meeting the processing needs of high-strength materials such as cemented carbide and titanium alloy, and adapting to the entire scene from rough processing to fine processing.
Intelligent production module
Optional automatic tool setting instrument, tool breakage detection system and cloud data management platform can be used to achieve 24-hour unmanned production and improve efficiency.
The specific application for twins vertical lathe CNC:
Applicable industries:
shipbuilding, wind power energy, rail transportation, aerospace, heavy machinery, etc.
Ultra-large rotating parts:
8-meter diameter marine propellers, nuclear reactor pressure vessel flanges
High-precision structural parts:
wind turbine main shafts, high-speed rail hubs, rocket fuel tanks
Complex special-shaped parts:
shield machine cutter heads, turbine blades, mining machinery gearboxes
Product Parameters
| DETAIL PRESENTATION

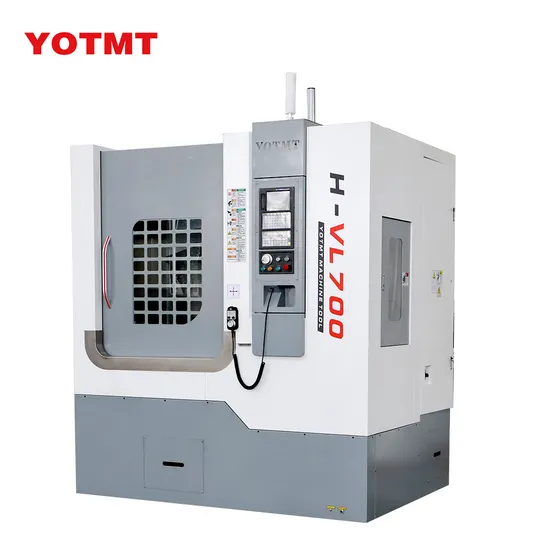

MODEL	SWING DIAMETER	TURNING DIAMETER	WORKPIECE LENGTH
H-VL700	770	700	650/750
H-VL850	920	850	650/1000
H-VL1000	1100	1000	800/1200

| ARGUMENT

ITEM	UNIT	H-VL700	H-VL850	H-VL1000
SPINDLE TYPE		Precision type
MAX. SWING DIAMETER	MM	770	920	1100
MAX. TURNING DIAMETER	MM	700	850	1000
MAX. WORKPIECE LENGTH	MM	650/750	650/1000	800/1200
SPINDLE SPEED	RPM	50-1500	50-1500	30-800
X/Z AXIS STROKE	MM	580/650-750	580/650-1000	700/800-1200
X/Z AXIS FAST MOVE SPEED	MM	20000/24000	16000/20000	12000/16000
REPEAT POSITIONING ACCURACY	MM	0.005/0.008	0.005/0.008	0.006/0.009
POSITIONING ACCURACY	MM	0.008/0.01
CHUCK SIZE	INCH	18/21/24	21/24/28	24/28/32
CHUCK TYPE	-	hydraulic
TOOLING TYPE		Row type/turret	Row type/turret	turret
STATION TOOLING	PIECE	2/4/6/8	2/4/6/8	2004/5/6
SPINDLE POWER	KW	18.5	22	30
ACCURACY PROCESS		IT5-IT6	IT5-IT6	IT6-IT7

Detailed Photos

| PRODUCT SHOOTING

Vertical l athe cnc series,focusing on buil ding strong stability,rigorous structural design and material usage.
Customized options:
1. Tool rest and cutting system
Multi-turret configuration
Side tool rest combination (standard)
Vertical tool rest + side tool rest combination, supports dual tool rest synchronous processing,
Optional four-axis/five-axis linkage tool rest, supports milling and drilling composite processing,
Heavy-duty static pressure guide tool rest, suitable for high-speed cutting of carbide tools,
Spindle unit
Frequency conversion spindle (standard),/hydraulic spindle
Three-jaw chuck (standard), magnetic/vacuum chuck
2. Automation and auxiliary devices
Automatic tool change system
Tool magazine capacity: 12-40 stations, supports HSK/TSC interface
Automatic head change device : Realize the switching between turning and milling spindles
Loading and unloading system
Pallet exchange device: Support continuous processing of multiple workpieces
Robot integration interface: Compatible with brands such as FANUC and KUKA
High-pressure internal cooling system,
Centralized automatic lubrication device, optional intermittent or quantitative oiling mode
3. Accuracy enhancement configuration
Measurement and compensation
Laser interferometer pitch compensation module (accuracy ±0.005mm/m)
Online measurement probe (Renishaw/Heidenhain)
Structural reinforcement
Heightened column
Fully hydrostatic guide rail kit to reduce the impact of thermal deformation
4. Transmission system
Belt drive / Gear drive / Direct connection of electric spindle
V. CNC system options
Basic type: GSK / KND
High-end type: Siemens 828 /840, Fanuc 0I-MF PLUS / 31i, Mitsubishi,
5. Protection and chip removal
Fully enclosed protective cover (IP67 dustproof and waterproof)
Spiral chip conveyor (for cast iron chips) / Chain plate chip conveyor (for long roll chips)
Oil mist collection device (in compliance with CE environmental standards)


Certifications
| CERTIFICATES & ACTIVITIES

Recognized as China's leading manufacturer of CNC machine tools for double-sided processing,
backed by hundreds of technical patents, specializing in drilling, milling, and turning shaft parts with exceptional precision.
Our high-quality positioning machine tool products are highly esteemed by users in developed countries worldwide.

Company Profile


|ABOUT FACTORY
Shandong Youtai Machine Tool Manufacturing Co., Ltd. is proudly situated in Tengzhou City, a hub famously known as the "Capital of Small and Medium-sized CNC Machine Tools in China." This historically rich city is home to renowned figures such as philosopher Mozi and craftsman Lu Ban. Nestled near the cultural site of Confucius' three holes, our location is a beacon of cultural heritage and a modern sanctuary for metalworking excellence, significantly contributing to the global machinery manufacturing industry.
Since our inception in 2011, Shandong Youtai Machine Tool has been at the forefront of innovation in efficient machining equipment for shaft parts. As a technology-driven enterprise, we focus on crafting high-end CNC machine tools and specialized machines for diverse industries. Spanning over 50 acres, our facilities include over 30,000 square meters of cutting-edge workshops and offices. We boast sophisticated precision machines like gantry machining centers and CNC guide rail grinders, paired with high-precision measuring equipment, ensuring superior product quality.
Our team comprises over 100 dedicated professionals, including more than 30 skilled technical experts and an equal number of engineering specialists. We engage in profound collaborations with over ten custom part enterprises. Through our independent R&D efforts, we have developed an array of machines, including milling end face drilling center hole tools, double-side lathes, and twin-head horizontal machining centers designed for cylinder barrels. Our portfolio spans more than twenty series and over fifty distinct products, successfully exported to developed nations across Europe and Asia, solidifying our reputation as a prestigious domestic brand in the industry.
