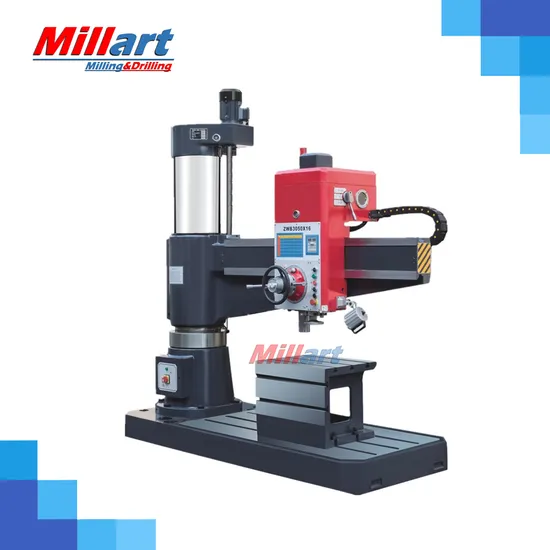

Zwb3050X16 Radial Drilling Machine, Rocker Drill Machine

Product Description

Product Description
Technical parameter :
Feature :
New designed drilling machine for drilling, tapping and reaming.
Spindle speed with 2 steps, variable speed and display.
Separately feeding motor, feeding rate variable and display.
Enlarged the module of the gears, easy for heavy duty drilling.
Oil-lubricated gearbox, which includes ground and hardened gears made of high quality alloy steel;
Heavy weight and rigid drill design ensure stability and vibration-free operation;
Control panel located on the front of the drill for better performance and ergonomics;
The ground surface of the column provides easy, free and precise travel of the arm;
High speed range for precise and fast machining;
Technical parameter :

Model	ZWB3050×16
Max.drilling dia (mm)	50
Max tapping dia (mm)	M30
Distance from spindle nose to base (mm)	320-1220
Distance from spindle axis to column (mm)	350-1600
Column diameter (mm)	350
Spindle travel (mm)	315
Spindle taper	MT5
Spindle speeds range(r.p.m)	20-200/200-2000
Spindle speed step	Variable
Spindle feeding rate(mm/min)	12-127
Spindle feeding step	Variable
Worktable dimensions (mm)	630x500x500
Base dimensions (mm)	2400x1000x200
Rocker rotary angle	360 degree
Main motor power (kw)	4
Lifting motor power (kw)	1.1
Weight (kg)	3500
Overall dimensions (mm)	2600x1120x2600

Sandard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
