Coffee Hot Drink Paper Cup Cap Making Machine Sevo Flexo Printing Machine

Product Description

Product Description
1. The single-layer paper cover forming machine series equipment adopts advanced forming technology, which has the advantages of simple operation, easy mold replacement, stable performance, high efficiency, environmental protection and energy saving. According to the different requirements of customers, it adopts automatic roll paper feeding and paper sheet feeding, creasing, embossing, punching, feeding to the mold, heating, crease, knurling, forming and other series of automatic functions. The same mold can achieve different design requirements on the top of the lid by changing the indentation version.
2. The automatic single-layer paper lid forming machine is suitable for lids made of coated paper, ice cream cup lids, coffee cup lids, noodle bowl lids, salad bowl lids, etc. It has largely replaced the plastic cover on the market.
3. Main advantages:
high speed.
Roll paper/sheet paper (you can choose one of them according to your needs)
Automatic creasing (guide line),
Automatic embossing (the logo and shape on the lid can also be cross-cut),
Automatic punching (cut roll paper into cover),
Cover a piece of paper to save costs.
PLC control + servo motor paper feeding
Open cam + shaft + cam + gear control movement, stable and reliable.

Roll Single Paper Cup Lid Forming Machine DPJ Series BEST
MODEL	DPJ-100	DPJ-145	DPJ-200
HS.CODE	8441309000	8441309000	8441309000
Paper Cover Dia	45-100mm	100-140mm	140-200mm
Raw Material	PE PLA Coated Paper	PE PLA Coated Paper	PE PLA Coated Paper
Suitable Paper Weight	250-350GSM	250-350GSM	250-350GSM
Max Rated Productivity	70-110PCS/MIN	70-90PCS/MIN	50-70 PCS/MIN
Power	10KW	10KW	12KW
Voltage	220/380V 50Hz	220/380V 50Hz	220/380V 50Hz
Machine Weight	2000KG	2500KG	3000KG
Working Air Source	0.4MPa,0.12m3/min	0.4MPa,0.12m3/min	0.4MPa,0.12m3/min
Packing size	1920X1700X2000	2200X1880X2000	2600X1850X2000
Picture and parameter is for customer reference only

Two Sheet Paper Cup Lid Forming Machine ZGJ Series BEST other model machine
MODEL	ZGJ-70	ZGJ-70M	ZGJ-60T
HS.CODE	8441309000	8441309000	8441309000
Paper Cover Dia	65-125mm	100-140mm	130-190mm
Raw Material	PE PLA Coated Paper	PE PLA Coated Paper	PE PLA Coated Paper
Suitable Paper Weight	250-450GSM	250-450GSM	250-40GSM
Max Rated Productivity	70PCS/MIN	60PCS/MIN	50PCS/MIN
Power	6.5KW	6.5KW	8.5KW
Voltage	220/380V 50Hz	220/380V 50Hz	220/380V 50Hz
Machine Weight	3000KG	3000KG	3200KG
Working Air Source	0.4MPa,0.12m3/min	0.4MPa,0.12m3/min	0.4MPa,0.12m3/min
Packing size	1900X2100X2000	2350X1700X2000	2450X1700X2000

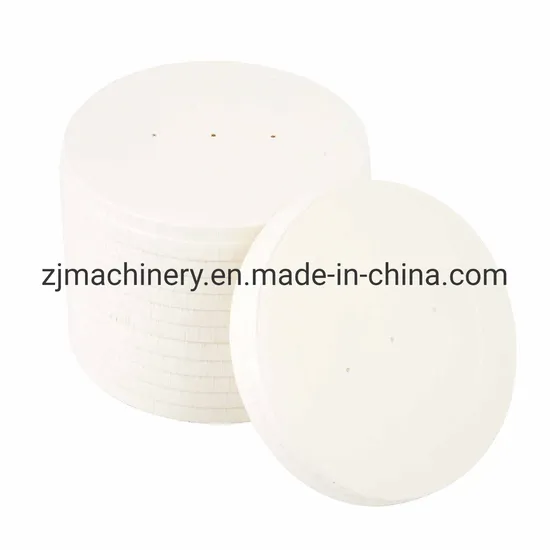

Samples
Product Parameters

Model	DPJ-90	DPJ-M70	ZGJ-60T
Paper Cover Dia	65-125MM	100-140MM	130-190MM
Raw Material	single/double Pe coated paper	single/double Pe coated paper	single/double Pe coated paper
Paper Weight	280-450 gsm	280-450 gsm	280-500 gsm
Speed	80pcs/Min	55pcs/Min	50pcs/Min
Power	380V 50hz3Ph(customizable)	380V 50hz3Ph(customizable)	380V 50hz3Ph(customizable)
Machine Weight	3000kg	3200kg	3500kg
Packing Size	2350*1700*1850mm	2350*1700*1850mm	2350*1700*1900mm

Packaging & Shipping
Company Profile
Ruian Best Machinery Co., Ltd.-located in the economically prosperous and beautiful scenery of Yunjiang Standard Factory Area, Nanbin Street, Feiyun Town, Ruian City, Zhejiang Province, the company has extensively introduced and absorbed the production technology and experience of advanced paper container equipment at home and abroad After comparing, analyzing and digesting, successfully developed a series of new products such as single-piece paper cup lid forming machine, double-piece paper cup lid forming machine, flat-bottom paper cup machine, trademark die cutting machine, yogurt cup packaging machine, disposable fast food box machine, etc. , To fill the gaps in the paper container industry at home and abroad. Our equipment has complete functions, stable performance, beautiful appearance, and the molding machine can generally change molds. We also have a professional team to provide perfect service for customers who need customized special-shaped paper container machinery. The company pursues the business policy of "Quality First, Customer Satisfaction", and wholeheartedly provides customers with one-stop service of technology, equipment and raw materials for producing paper covers and paper products, and is responsible for equipment installation, commissioning and technical personnel training. In addition, our home has an all-weather after-sales service system. Our products are not only favored by domestic and foreign customers, but also exported to Italy, the United States, France, Japan, Southeast Asia, Arabia, Africa, India and many other countries and regions. Ruian Best Machinery Co., Ltd. warmly welcomes new and old customers to visit, guide and negotiate. We will continue to do better!
After Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ
1.Are you trading company or manufactuer?
A: we are manufacturer of the paper product machinery in China.
2.Do you have quality certificate?
A: we have got the CE certificate for our machine.
3.What's the delivery time?
A: Around 45 days
4.How does your factory do regarding quality control?
A: Quality is priority.our factory always attath great importance to quality controlling from the very beginning to the very end.

For more details and video information of this paper container machine,please feel free to contact us.
