100 200 300 Meters RG5 RG6/U 5C2V Coaxial CableProduct Description

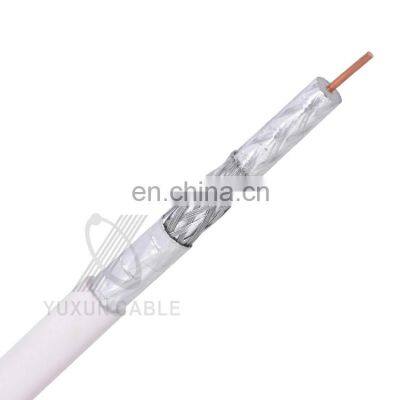

RG6 Tri-shield coaxial Cable
|
|
Physical Dimensions
|
CONDUCTOR
| MATERIAL
| CCS
|
CONSTRUCTION
| 1.02±0.03mm
|
INSULATION
| MATERIAL
| FPE
|
DIAMETER
| 4.57±0.2mm
|
SHIELD
| MATERIAL
| Double AL Foil
|
WEAVE
| MATERIAL
| AM
|
CONSTRUCTION
| 0.16*64
|
SHIELD
| MATERIAL
| Double AL Foil
|
JACKET
| MATERIAL
| PVC
|
DIAMETER
| 7.06±0.2mm
|
Electrical Properties
|
IMPEDANCE
| 75±3 Ω
|
ATTENUATION
(20℃, ≤dB/100m)
| 5MHz
| <3.5
|
55MHz
| <5.25
|
211MHz
| <10.0
|
250MHz
| <10.82
|
270MHz
| <11.04
|
300MHz
| <11.64
|
330MHz
| <12.26
|
350MHz
| <12.63
|
400MHz
| <13.61
|
450MHz
| <14.43
|
500MHz
| <15.29
|
550MHz
| <16.08
|
600MHz
| <16.73
|
750MHz
| <18.54
|
870MHz
| <20.04
|
1000MHz
| <21.49
|
1450MHz
| <26.94
|
1800MHz
| <30.24
|
2000MHz
| <32.09
|
2200MHz
| <32.15
|
2300MHz
| <32.87
|
2500MHz
| <34.25
|
2700MHz
| <35.60
|
3000MHz
| <37.53
|
Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
