Product Description
Product Description

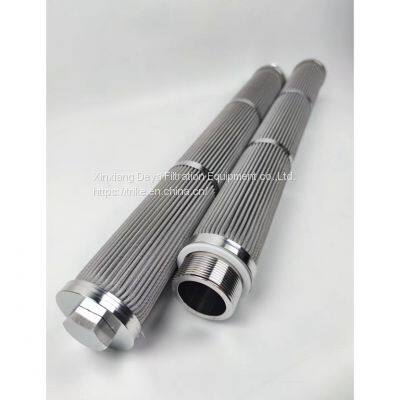

Description: Main filter media of pleated filter element is stainless steel sintered fiber and stainless steel weaving wire mesh.
Stainless steel sintered fiber is a kind of stainless steel media, sintered into a graded pore structure, the filter element enjoys the advantage of high porosity rate, big filtration area and good dirt holding capacity, and can also be used repeatedly after chemical cleaning, etc.
Stainless steel weaving wire mesh is weaved with stainless steel wire, the filter element has such characteristics of good strength, fastness, easy cleaning, high temperature resistance, low cost, etc.
Filter accuracy: 3 micron to 200 micron is available. The size is available at customers’ requirement.
Application:
• High temperature liquid filtration
• Corrosive liquids
• Corrosive products
• Petrochemical products
• Chemical solution
• Gas filtration
• High viscosity products
• Food and drink
• Polymer filtration
• Electronics industry
type
| stainless steel sintered felt filter element
|
Material
| Stainless steel 304/316L，special material can be customized.
|
Filter layer material
| Stainless steel fiber sintered felt /stainless steel wire mesh
|
Filtration precision
| 5~150um,3um can be customized/1~500um
|
Length range
| ≤1200mm,over 1200mm can be customized, need to splice
|
Outer diameter range
| standard:30-100 mm,other size can be customized.
|
Skeleton
| steel plate punching square hole/round hole
|
working temperature
| -196°C---400°C
|
