Basic Info.
Usage
Special Excavator, Marine Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Certification
CE, ISO9001: 2000
Maximum Torque/Speed
637.9/1800n.M
Max. Digging Height
9620 mm
Max. Dumping Height
6780 mm
Max. Digging Depth
6680 mm
Max. Vertical Wall Digging Depth
5715 mm
Max. Digging Reach
9940 mm
Transport Package
Comply with Export Packaging Requirements
Specification
10100*3190*3120mm
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
10100.00cm * 3190.00cm * 3120.00cm
Package Gross Weight
21500.000kg
Product Description
Product Description

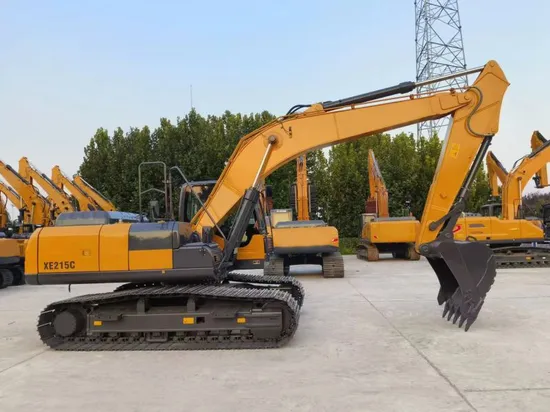

21Ton Crawler Excavator XE215C
XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on. It has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
Original imported engine
An Imported engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
Hydraulic system
Original imported high-end hydraulic components are configured to match capabilities for excellent performance. Product Parameters
Engine
| Output power
| 128.5/2100 kW/rpm
|
Torque/speed
| 637/1800 N.m/rpm
|
Displacement
| 6.494 L
|
Operation Weight
| 21500 kg
|
Bucket Capacity
| 0.9-1.0 m ³
|
Main performance
| Travel speed(H/L)
| 5.5/3.3 km/h
|
Rotating speed
| 13.3 r/min
|
Gradeability
| ≤35°
|
Ground pressure
| 47.2 kPa
|
Bucket digging force
| 149 kN
|
Arm digging force
| 111 kN
|
Maximum traction
| 184 kN
|
Working scope
| Max. digging height
| 9620 mm
|
Max. dumping height
| 6780 mm
|
Max. digging depth
| 6680 mm
|
Excavation depth of 8 feet level
| 6500 mm
|
Max. vertical wall digging depth
| 5715 mm
|
Max. digging reach
| 9940 mm
|
Min. swing radius
| 3530 mm
|
