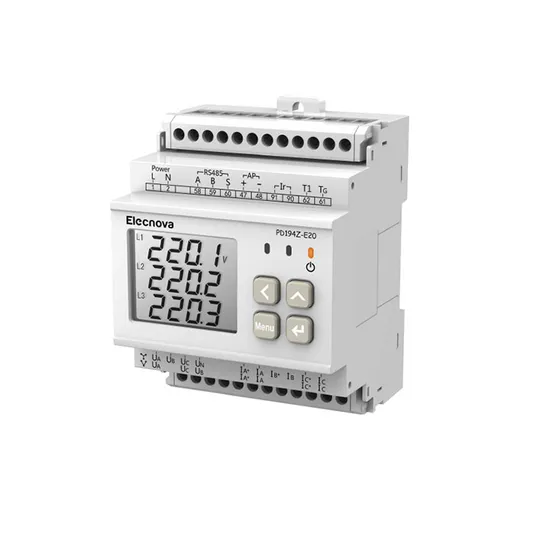

Pd194z-E20 Bi-Directional 31st Harmonics Digital Lora Power Meter

Product Description

PD194Z-E20 bi-directional 31st harmonics digital lora Power Meter
This series of multi-function powermeters support all-parameter measurement, bi-directional energy metering, four-quadrant reactive metering and harmonic analysis.they can be connected to power monitoring system and energy management system to realize remote data monitoring.
Product Description

Technical Specifications

Accuracy		Voltage, current:0.2%;power:0.5%,frequency:±0.01HZ;Active energy:0.5s
Data update rate		1s
Signal Input	Rated current	AC 1A,5A
	Rated voltage	AC 100V,3800V
	Overload	Continuous:2In,instantaneous:10In/5sContinuous:1.2Un,instantaneous:2Un/1min
	Energy consumption	≤0.1VA
	Fequency	45~65HZ
Communication	RS485 interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy pulse		Optocoupler isolation ,pulse width 80ms±20%
Digital Input		Optocoupler isolation ,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary power supply	Working range	AC/DC 80~270V
	Energy consumption	≤5VA
Environment condition	Working temperature	-25~70ºC
	Storage temperature	-30~80ºC
	Relative humidity	≤93%RH
	Altitude	≤2500m
Safety	Insulation	Signal power supply output terminal to case resistance ≥100MΩ
	Withstand voltage	Power supply,input and output ≥2kv
Protection level		IP54

Typical Wiring

Application

Related Products

Company Profile

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

---
