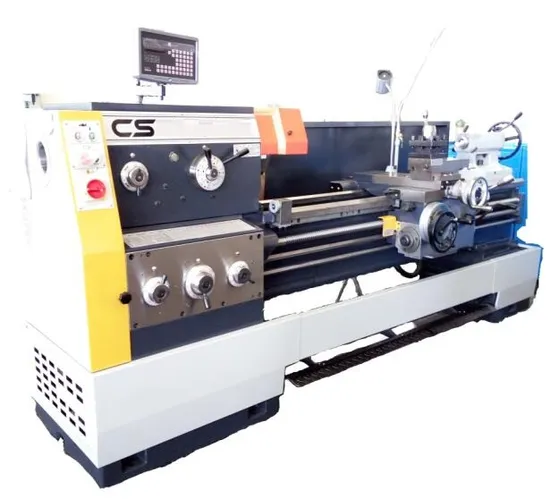

| SPECIFICATIONS | CS6140 | CS6150 | |
| Capacity | Max. swing dia. over bed | Φ400mm(16") | Φ500mm(20") |
| Max. swing dia.in gap | Φ630mm(24-3/4") | Φ710mm(28") | |
| Max. swing dia. over slide | Φ220mm(8-3/4") | Φ300mm(12") | |
| Max. workpiece length | 750/1000/1500/2000/3000mm(30/40/60/80/120") | ||
| Spindle | Spindle bore diameter | Φ52mm(2") | Φ82mm(3") |
| Type of spindle nose | CS6140:ISO 702/III NO.6 bayonet lock | ||
| Spindle speed | 24 steps 9-1600rpm | ||
| Spindle motor power | 7.5kw | ||
| Tailstock | Diameter of quill | Φ75mm(3") | |
| Max. travel of quill | 150mm(6") | ||
| Taper of quill (Morse) | MT5 | ||
| Turret | Tool O.D. size | 25mm×25mm(1"×1") | |
| Feed | Max. X travel | 145mm(5-3/4") | |
| Max. Z travel | 320mm(13") | ||
| X feed range | 93 kinds 0.028-6.43mm/r | ||
| Z feed range | 93 kinds 0.012-2.73mm/r | ||
| Metric threads | 48 kinds 0.5-224mm | ||
| Inch threads | 48 kinds 72-1/4t.p.i | ||
| Module threads | 42 kinds 0.5-112 πmm | ||
| Diametric pitch threads | 42 kinds 56-1/4 t.p.i.π | ||
| Other | Cooling pump | 0.06kw | |
| Length | 2382/2632/3132/3632/4632mm | ||
| Width | 975mm | ||
| Height | 1230mm | ||
| Weight | 1795/2050kg | 2050/2100kg | |
| 2250/2450/2850kg | 2300/2500/2900kg | ||
