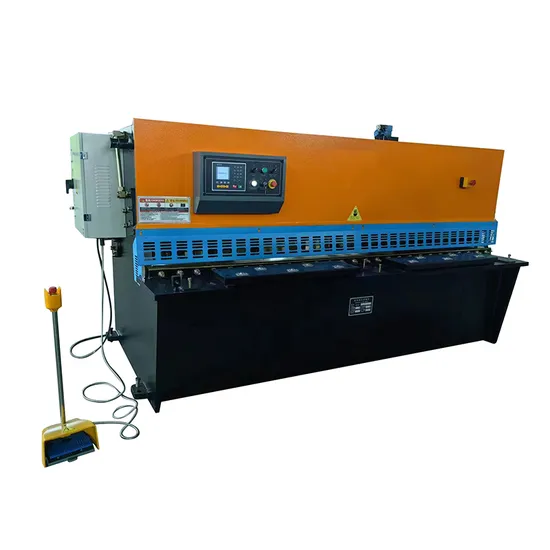

High Quality Shearing Machine QC12K Digital 4*2500 Metal Sheet Swing Beam Shearing Cutting

Product Description

Sharey Brand Popular Hydraulic Shearing Machine
Machine Information
Machine equip with CNC system.
Back gauge with ball screw, linear guide, driven by servo motor with hiqhspeed and accuracy.
CNC system has program function, back gauge can run automatically andpositioning continuous to achieve automatic adjustment.
With shearing counting function, show shearing quantity, system can protectbackgauge position, program and parameter after power off.
Machine Show
System Choice1.Using servo-control technology
2.275x48 picture element Gao Liang liquid crystal displaymonitor
3.The electrically operated rear bumper material automaticpositioning, makes concessions automatically
4.The multi-channel moves automatically, procedure andprocedure step link
5.The cutting counting, cuts the regulation to definethat the power failure remembered, male/British systemtransformation 1.Backgauge control, Control for general AC motors, frequency inverter
2Intelligent positioning, Double program digital output, Stock counter
3.Program memory of up to 40 programs up to 25 steps per program
4.One side positioning, Retract function
5.One key backup / restore of parameters
6.mm / Inch, Chinese / English 1.Backgauge control
2.BUS mode control servo system
3.Stock length limitation
4.Double programmable digital output5.Program memory of 40 programs up to 25 steps per program
6.One side positioning
7.Retract function
8.mm /Inch
9.Chinese / English
Technical Parameter

Type	Cutting thickness(mm)	Cutting width(mm)	Cutting angle(°)	Material strength(kn/cm)	Stopper Adjust Range(mm)	Travel Times(min)	Rower(kw)	Dimension(mm)
4x2500	4	2500	1°30″	≤450	20-500	14	5.5	3040x1550x1550
6x3200	6	3200	1°30″	≤450	20-500	12	7.5	3840x1710x1620
6x6000	6	6000	1°30″	≤450	20-800	5	11	6480x2100x2300
8x3200	8	3200	1°30″	≤450	20-500	8	8	3870x1700x1700
8x6000	8	6000	1°30″	≤450	20-800	8	8	6480x2100x2350
10x4000	10	4000	1°30″	≤450	20-600	10	10	4650x2600x2100
12x6000	12	6000	1°30″	≤450	20-1000	5	18.5	6900x2600x2700

Factory
Shipping
Why Choose Us
1,Innovation StrengthThe R&D team, technical engineer team, and production design adopt advanced technology2,Quality ControlWe have 50 professional equipment and advanced quality control processes to ensure that our products meet the requirements of CE international certification.3,Quantity and ProductivityWith the help of modern automated production lines, our two factories have 300 well-trained employees and an annual production capacity of 500 units4,Our ServiceEngineer's overseas service capabilities

---
