Small Width Center Slitting and Rewinding Machine/Slitter Rewinder Machine

Product Description

Product Description

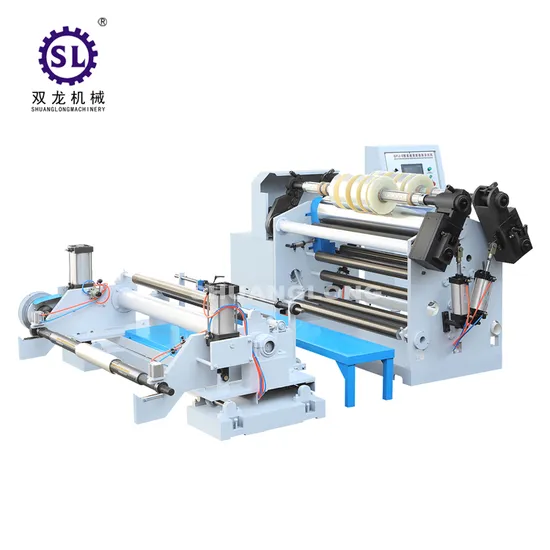

Slitting and Rewinding Machine
Detailed Photos

The machine is suitable for slitting and rewinding such various roll materials as PE, BOPP, PET, CPE, PVC film, aluminum foil and paper, etc. And can cut edge,slit material according to different requirements during production.
Feautre: 1. Adopts PLC control system and touch humane-machine interface.
2. Unwind unit adopts air shaft, pneumatic lifting system, PLC automatic control magnetic powder.
3. Main traction controller by inverter motor.
4. Rewind unit adopts PLC control magnetic powder clutch.
5. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or the line of material.
6. Equipped with automatic waste film blowing device. (Vertical knife structure).

Model	SLFQL-1100C	SLFQL-1300C	SLFQL-1600C
Slitting Width	20-1100mm	20-1300mm	20-1600mm
Slitting Speed	200m/Min	200m/Min	200m/Min
Max unwind diameter	¢800mm	¢800mm	¢800mm
Max rewind diameter	¢600mmX2	¢600mmX2	¢600mmX2
Paper Core Diameter	3 inch	3 inch	3 inch
Main Motor	3.7Kw	4Kw	5.5Kw
Weight	1500Kg	1600Kg	1800Kg
Overall Dimensions (LxWxH)	1500x2300x1450mm	1500x2500x1450mm	1500x2800x1450mm

Product Application


Packaging & Shipping
Company Profile
Wenzhou Shuanglong Machinery Co., Ltd. is an enterprise that specialized in complete set of plastic soft packaging equipment. Our company have more than ten varieties of high-quality products, such as Extrusion coating lamination machine, Embossing machine, Slitting rewind machine, Straw making & packing machine, Paper stick machine, Rotogravure printing machine, Dry laminating machine and Inspection machine, Flexo printing machine etc. With the purpose of "Quality creats brand, brand promots developing", we provide a wide range of reliable performance, high quality and reasonable price products.
With the philosophy of " Quality of products is quality of life", we makes Shuanglong products fully into life and provide clientsa better service!

FAQ
Question 1: Where is your factory located? How can I visit there? Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
From SHANGHAI by air is 40mins, by train is 4hours.
From GUANGZHOU by air is 2hours.
Question 2: Do you company provided foreign country machine installation services? Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question 3: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) , All life time repaire, and 24hours HOT Line.
Question 4: What's the payment method?
Answer: We accepted T/T, L/C, Western Union, Moneygram ETC

---
