high pressure cement grouting station machine grouting pump with mixer for pipe jacking project

Product Description

high pressure cement grouting station machine grouting pump with mixer for pipe jacking project Description of grout plant:
LGP400/700/80DPL-D grout station is a combination of mixer, agitator, and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining, and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement, or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures continuous mixing and grouting operations. What's more, the double-plunger pump together with the pressure-holding system is used, so that the pump automatically stops and maintains the very little pressure impulse (1-4bar with 50bar grouting pressure) to ensure that the grouting hole is completely filled. The grouting plant is hydraulic drive. Grouting pressure and displacement are adjustable. Compact size and it is easy to operate. It also takes up a small space.
Features of grout plant:
1. High-speed colloidal grout mixer
2. Double plunger pump
3. Vertical type pump with compact size
4. Hydraulic drive (safely releasing pressure when pumping block)
5. Hydraulic system with high temperature warning and protection system
6. Pressure holding system
7. Low flow pressure surge system
8. Air cooler and water cooler (suitable for working in tropical and sub-hot areas)
9. Up to 5mm particle size

Technical data of grout plant:

Description		Data
Grout Station model		LGP400/700/80DPL-D
Dimensions		2400*2150*1700mm
Weight		1820kg
Diesel Engine
Power	27KW@1800rpm
Mixer
Capacity		400L
Recycling discharge		1100L/min
Suitable water/cement ratio		≥0.5:1
Agitator
Capacity		700L
Rated Rev		36rpm
Pump(vertical compact hydraulic grout pump)
Output/pressure		80L/min@5Mpa
Diameter		85mm
Stroke		220mm
Cycles		38 times/min
We could also customize it according to your demands.

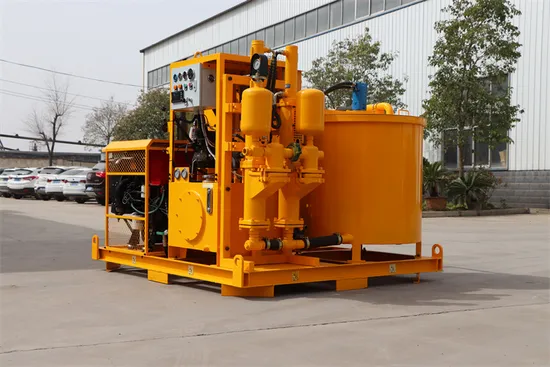

Detailed Images:
Application:
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench, and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terry grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting.
Acted as a grouting plant in the Pipe Jacking Machine
Company Information:

We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of the pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.

---
