High Quality Hydraulic Radial Arm Drilling Machine for Hot Sale

Product Description

Product Description
High rigidity, heavy drilling, double slideway design, stable operation√ Strong drilling ability, Mehanna tough cast iron, high temperature tempering, rigid and tough.√ The gear is made of alloy steel, by quenching and carburizing heat treatment.√ The spindle is made of chrome-molybdenum diamond, outstanding durability.

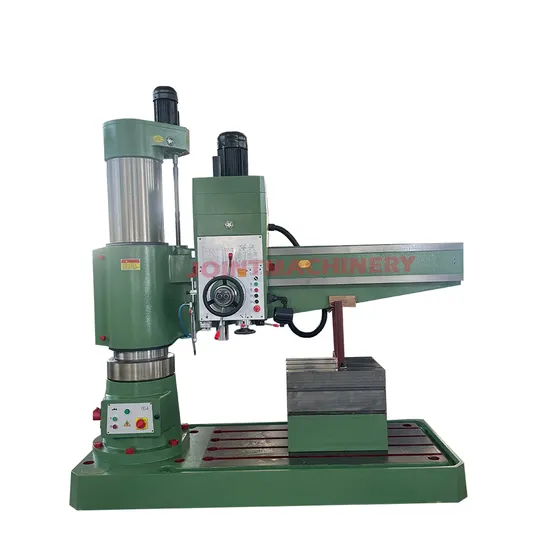

Strong Drilling Ability HC-1000 Radial Drilling Machine for Metal Radial Drilling Machine Tool

Model		HC-1000
Distance between spindle center and column center	Max	1000
	Min	250
Distance between spindle nose to base	Max	1120
	Min	330
Diameter of spindle	E	220
Height of column	F	2100
Max distance between spindle head to base	G	2290
Floor space	HXI	1500*700
Longitudinal travel of spindle head	K	650
Up and down travel of radial ram	L	580
Up and down travel of spindle	M	210
Spindle hole	MT	NO.4
Size of worktable	mm	1050*700
Motor of spindle	kw	1.5(2HP)*4P
Elevator motor of radial ram	kw	0.375(1/2HP)*6P
Motor for clamping	kw	-
Spindle feed range	mm/rev	0.05-0.16
	Grade	3
Spindle rotation	60HZ rpm	88-1500
	50HZ rpm	75-1250
	Grade	6
Working capacity	Drilling	38
	Tapping (S45C)	16
Net weight	kg	1250
Gross weight	kg	1380
Dimension	mm	1600*750*2200

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
