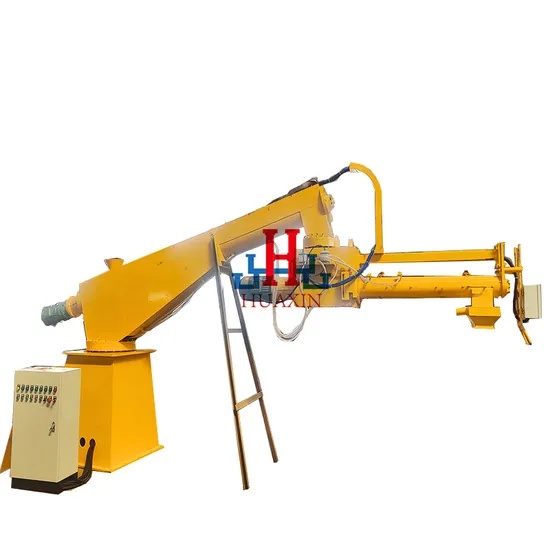

China Foundry Sand Mixing Machine Manufacturer Design Customize Continuous Resin Sand Mixer Machine for Casting Steel

Product Description

Product Description
Use:
The series machine is mainly used for mixing the resin sand and water glass sand;
Characteristics:
The agglomerant adopt the electric variable diaphragm pump, has the advantages of light weight, compact size, stable and reliable flow
It is uniform of the sand mulling, so it significantly guarantee the quality of moulding (coremaking)
Sand mulling in short time, the acephalia, tail sand, they will be exhausted after stooping. The wide-open cage-type wall, it is convenient to adjust and clean for the blade, it is facilitate to operate and maintain.
The inlet of the sand mixer can equip with the new and old sand proportional regulator according to the productive requirement. It can accurately control the ration and production rate of the new and old sand. We can adjust and choose the rate in the process of sand mulling.
Resin sand mixer is a mixing machine used to continuously mix resin molding sand in foundry plant.
Resin sand mixer has: S25 series double-arm and S24 series single-arm sand mixer, which can mix 5 tons, 10 tons, 15 tons and 20 tons of molding sand every hour. According to different users' requirements, non-standard customized machine is available.
Our company has been producing various sand casting equipment and automatic casting lines for more than 20 years. The sand mixer has the characteristics of high production efficiency, cost saving, high degree of automation, large working area and uniform sand mixing.
Detailed Photos
Product Parameters

Model		S255	S2510	S2515D	S2520A
Productivity(t/h)		5t/h	10t/h	15t/h	18-25t/h
First mix box	Radius of gyration(m)	2.8	3	3.5	3.5
	Turing range	120°	120°	120°	120°
	Motor power(kw)	2.2	4	4	5.5
Second mix box	Radius of gyration(m)	1.5	1.6	1.8	2
	Turing range	270°	270°	270°	270°
	Motor power(kw)	4	5.5	11	15
Sand outlet maximum radius of gyration(m)		4.3	4.6	5.3	5.5
Resin pump mode		B1.8	CB2.5	CB-B6	CB-B6
Solid pump mode	Diaphragm pump	DMB-2.5
Binder rationing precise		<1%

Company Profile
Qingdao Huaxin is a proud partner of Foundry plants bringing more than 20 combined years of foundry design and productivity to the worlds foundries of all sizes.
Qingdao Huaxin is a professional industrial solution provider, specializing in foundry design and automation in foundry industry.
Qingdao Huaxin is a professional manufacturer in the design and installation of highly customized and high performance "Green Sand" sand preparation Systems,semi-auto/automatic molding machines,core shooting machine, shot blasting machine,automatic pouring machine and return systems for foundries which produce cast iron, cast steel and aluminum castings.
Certifications
Packaging & Shipping
Company products:
Related product
Resin sand production line equipment is composed of sand shakeout machine, vibrating conveyor, suspended permanent magnet separator, belt conveyor, permanent magnet head wheel, plate chain bucket elevator, inertial vibrating feeder, sand block crusher, centrifugal rotor regenerator, air separator, cooling machine, sand screen, sand temperature regulator, medium pressure conveying device, dust collector, continuous resin sand mixer, cooling tower, pipeline pump, sand silo and cooling tower.

---
