Lb Series Environmentally Friendly Durable Asphalt Mixing Plant Manufacturer Lb1000

Product Description

LB Series Environmentally Friendly Durable Asphalt Mixing Plant Manufacturer LB1000
Product Description
Specifications
1.Rated production 40t/h
2.Installed general power 190kw
3.Driving parts:Germany SEW,Italy BONFIGLOLI

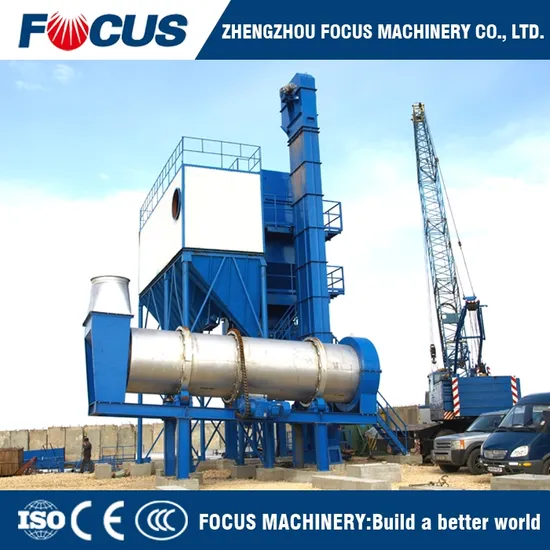

LB1000 modular asphalt batching plant with price for sale
1. The original modular design of the mixing plant makes transport and installation work quick and convenient.
2. Loop belt feeder for the measuring hopper: provide high and low speed.
3. The high-efficiency and heat-preservation drying drum and the special vanes make heat exchange more sufficient.
4. Vibrating screen: high sieving efficiency, easy maintenance and changing, and the imported bearings more reliable.
5. Hot aggregate bin: easy to know the level of material, precise measurement of aggregate, less blockage.
6. Main mixing machine: agitating more even and speedy, used material can be recycled.
7. Dust-removing system: completely up to the national standard of environmental protection, dust blown down will be collected for reuse to avoid secondary pollution.
8. Control system: SIEMENS integrated solution, PROFIBUS field bus to form a distributed automatic system.
9. Operation: double hot standby on the industrial computer, dynamic display and buttonless design.
Main technical parameters of LB1000 asphalt batching plant

Type		LB1000
Rated production		80t/h
Cold aggregate container		4 containersx9m3
Dry cylinder		1.5mx6m
Bag dust-remover		CNM357
Emission standard		50mg/Nm³
Vibrating screen		4 layers
Hot aggregate container		26t
Mixing kettle capacity		1100kg
Mixing cycle		45s
Mineral powder tank volume		26+36t
Asphalt tank volume		50000L
Heat conduction oil stove		300,000 kcal/h
End-product container volume		90t
Control system		Manual /semi-auto / automatic
Weighing accuracy	Aggregate	≤±0.4%
	Powder material	≤±0.3%
	Asphalt	≤±0.2%
Installed general power		280kw

Company Profile
Business Type: Main Products: Location: Year Established: Year start exporting: Number Of Employees: Total Annual Sales Volume: Main Markets: Average Lead Time:

	Trading Company
	concrete batching plant,concrete mixer,concrete pump,truck mixer,tower crane
	Henan, China (Mainland)
	2013
	2013
	51 - 100 People
	Above US$100 Million
	Domestic Market, Oceania, Africa, Mid East, South Asia
	15 Day(s)
	Established in 1982, we are professional manufacturer of high quality ready mixed concrete batching plant, asphalt mixing plant, mobile concrete mixing plant, concrete mixer truck, concrete pump, concrete boom pump, concrete pump truck, tower crane, construction hoist, cement screw conveyor, cement silo, cement conveyor, cement bag opener, etc. Our products have been distributed in various places in China and over 50 countries and regions in the world. With the increasing presence in domestic and overseas markets, we constantly focus our strength on R&D to ensure our leadership in the business. Covering an area of 65,000sqm with 900 workers, 40 engineers, 102 expertise staff members and 80 management personnel, we provide our clients around the world with reliable, well-engineered, state-of-the-art process solutions. Our products have passed ISO9001:2000 Quality Management System Certification and many other tests by clients, governments and third party institutes. With all those honors, our passion on new technology and innovation will never be ceased. Our endeavor for continuous 5-star service will never be halted. We stand for new product ideas and courageous vision of the future. We stand for our never-stopping dedication and devotion to your construction equipment solutions. We focus on your project needs.

---
